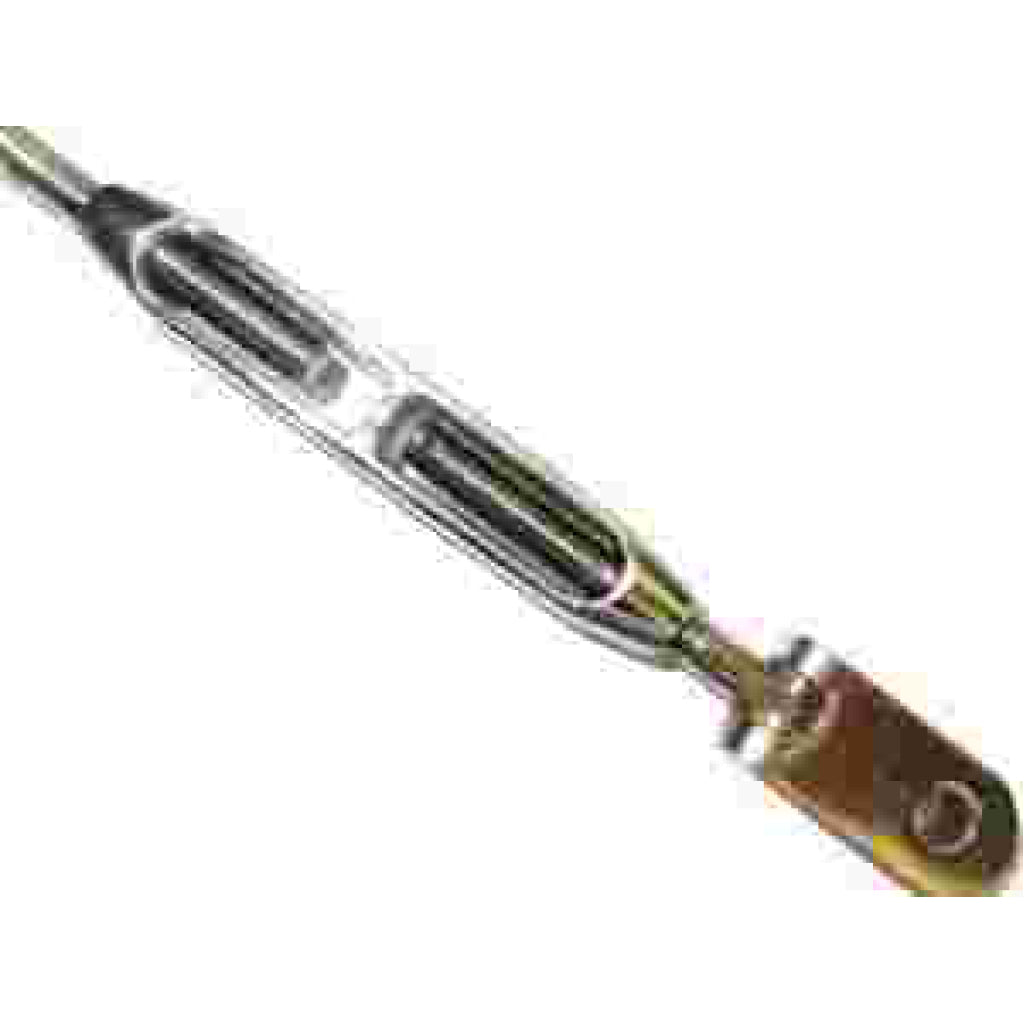

ALEXANDER-ROBERTS CO.Open-Body Swage Turnbuckles Chrome-plated bronze body Stainless steel toggle
Arco Part # | Wire Size | Body Size | Pin Size | Length Extended | Length Closed | Tensile Strength |
---|---|---|---|---|---|---|
TS040808 | 1/8" | 1/4" | 1/4" | 10 5/16" | 7 3/16" | 3400 lbs |
TS050808 | 5/32" | 1/4" | 1/4" | 10 3/8" | 7 1/4" | 3400 lbs |
TS051010 | 5/32" | 5/16" | 5/16" | 11 1/4" | 8" | 4900 lbs |
TS061010 | 3/16" | 5/16" | 5/16" | 11 3/8" | 8 1/8" | 3400 lbs |
TS061212 | 3/16" | 3/8" | 3/8" | 13 3/16" | 9 1/4" | 8900 lbs |
TS071212 | 7/32" | 3/8" | 3/8" | 13 1/4" | 9 5/16" | 8900 lbs |
TS071414 | 7/32" | 7/16" | 7/16" | 13 7/8" | 9 7/8" | 11500 lbs |
TS081212 | 1/4" | 3/8" | 3/8" | 13 1/4" | 9 5/16" | 8900 lbs |
TS081414 | 1/4" | 7/16" | 7/16" | 14 1/2" | 10 1/8" | 11500 lbs |
TS081616 | 1/4" | 1/2" | 1/2" | 14 1/2" | 10 1/8" | 15000 lbs |
TS091616 | 9/32" | 1/2" | 1/2" | 14 9/16" | 10 3/16" | 15000 lbs |
TS101616 | 5/16" | 1/2" | 1/2" | 14 9/16" | 10 3/16" | 15000 lbs |
TS101620 | 5/16" | 1/2" | 5/8" | 14 9/16" | 10 3/16" | 15000 lbs |
TS102020 | 5/16" | 5/8" | 5/8" | 17 3/4" | 12 3/4" | 22000 lbs |
TS122020 | 3/8" | 5/8" | 5/8" | 23 1/8" | 12 3/4" | 22000 lbs |
