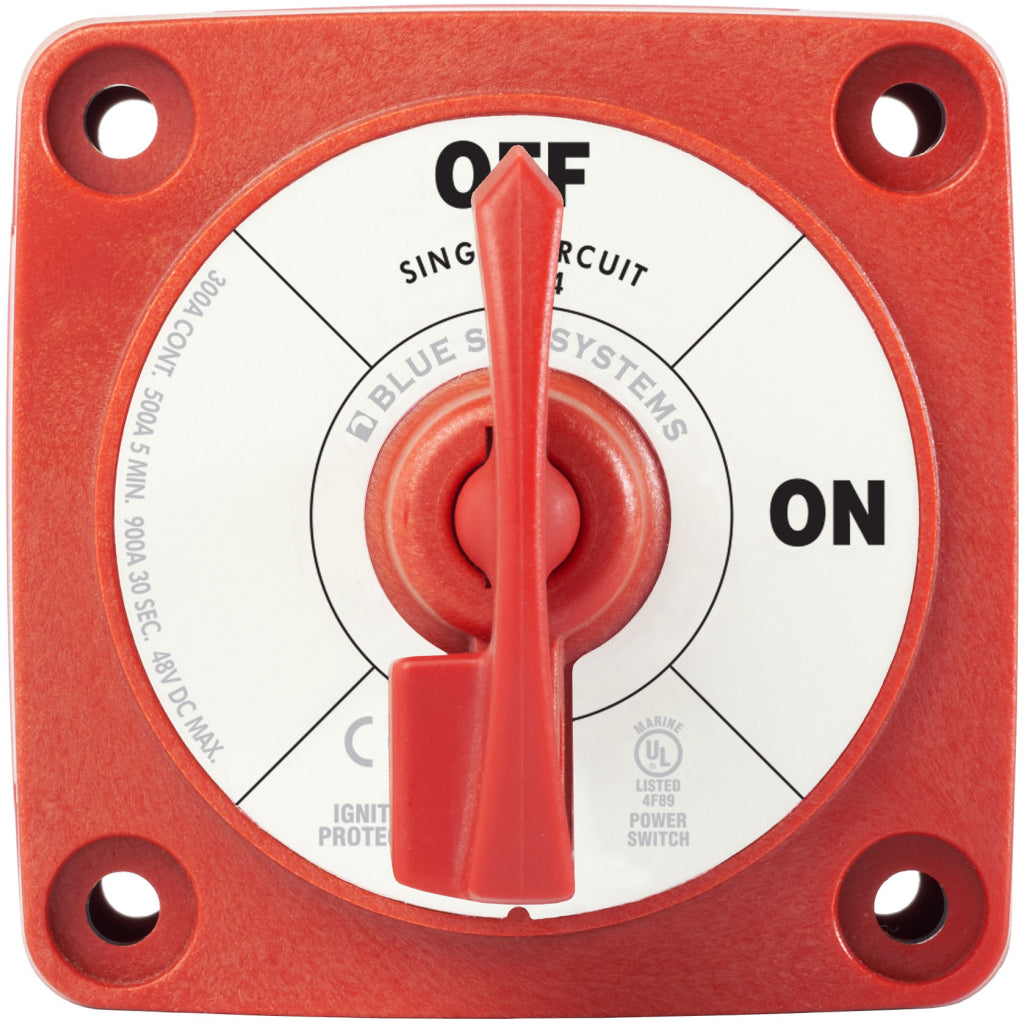

Blue Sea Red Single Circuit

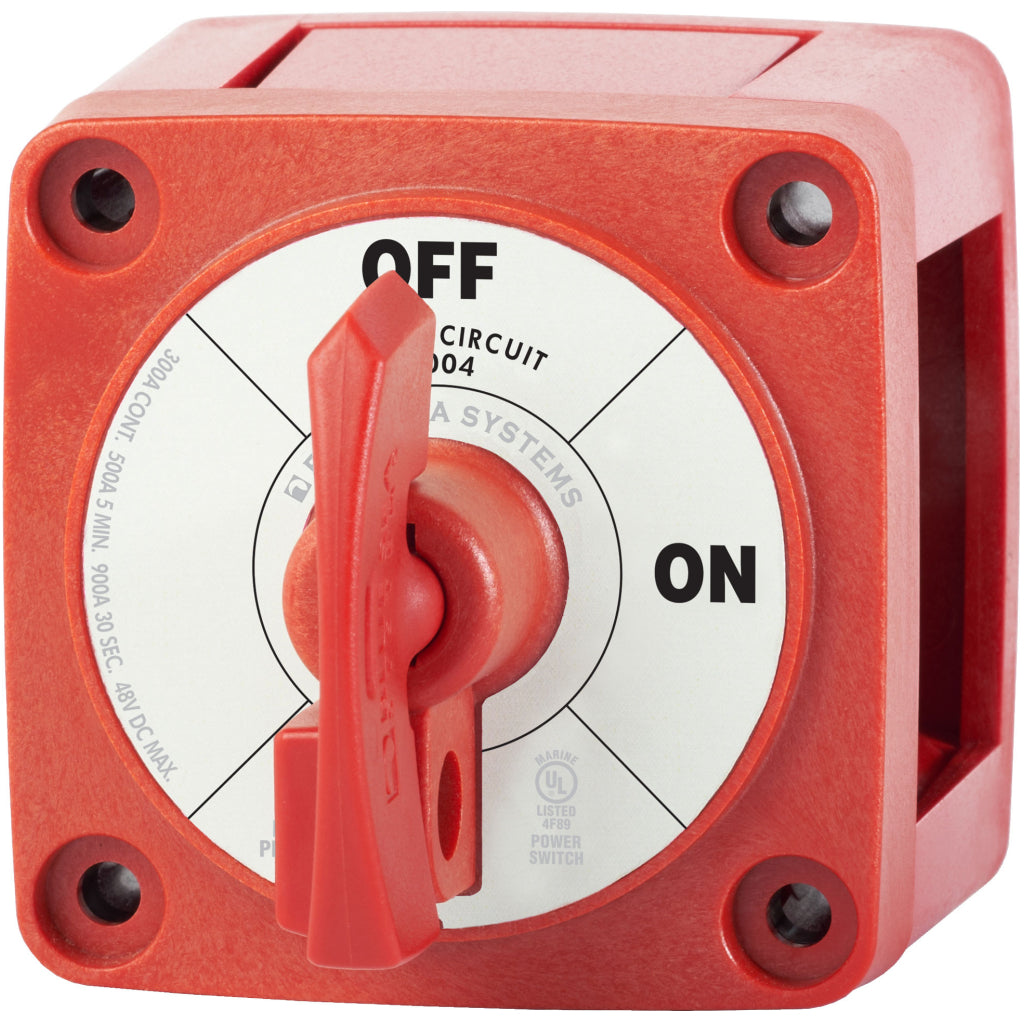

Blue Sea Red Single Circuit Angle

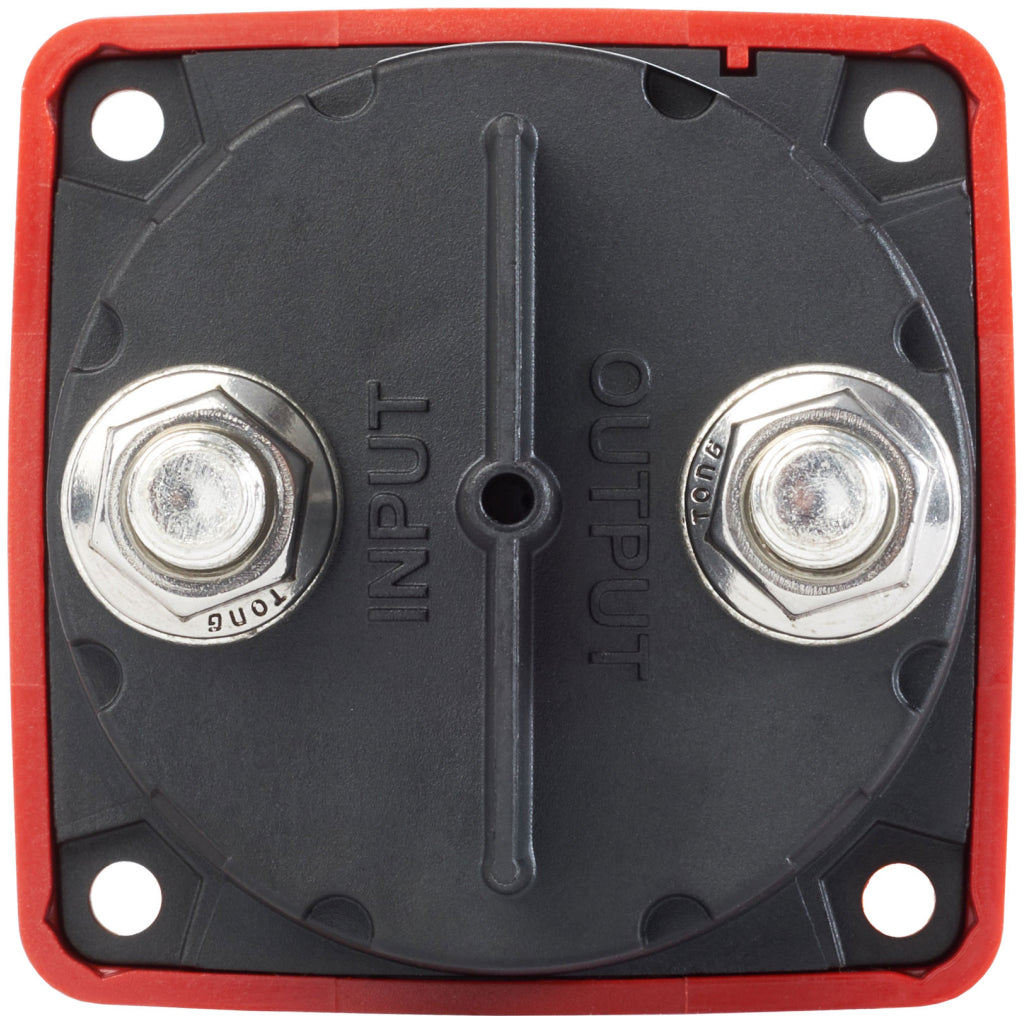

Blue Sea Red Single Circuit Angle Reverse
Blue Sea Red Single Circuit
Blue Sea Red Single Circuit Angle
Blue Sea Red Single Circuit Angle Reverse
ELECTRICAL

Blue Sea 6004 Single Circuit W/Locking Key - Red

SKU# BS6004
$4999
Check Delivery Time

Blue Sea 6004 Single Circuit W/Locking Key - Red may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

✕
//riggingshoppe.com/cdn/shop/files/happy-child-on-sailboat_e18ec5af-8b2e-4722-ae68-af51a4129615_500x500.jpg?v=1667832716

Check Delivery Time


Item# 6004

300 Amps continuous rating for outboards and small gasoline or diesel engines

Features:

  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3/8" (M10) ring terminals
  • 7/8" (22 mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • One-piece stainless flange nuts ensure safe and secure connections
  • Isolating cover protects rear contacts
  • Breakout tabs allow wire access in any direction

Specifications:

  • Switch Type:Single Circuit ON-OFF
  • Color:Red
  • Maximum Voltage:48V DC
  • Stud Size:3/8"
  • Continuous Rating: 300A
  • Intermittent Rating: 500A
  • Cranking Rating: 30 sec 900A
  • Stud Material:Tinned Copper
  • Stud Torque:120 in-lb (13.56 Nm)
  • Weight:0.65lb (0.29 kg)
