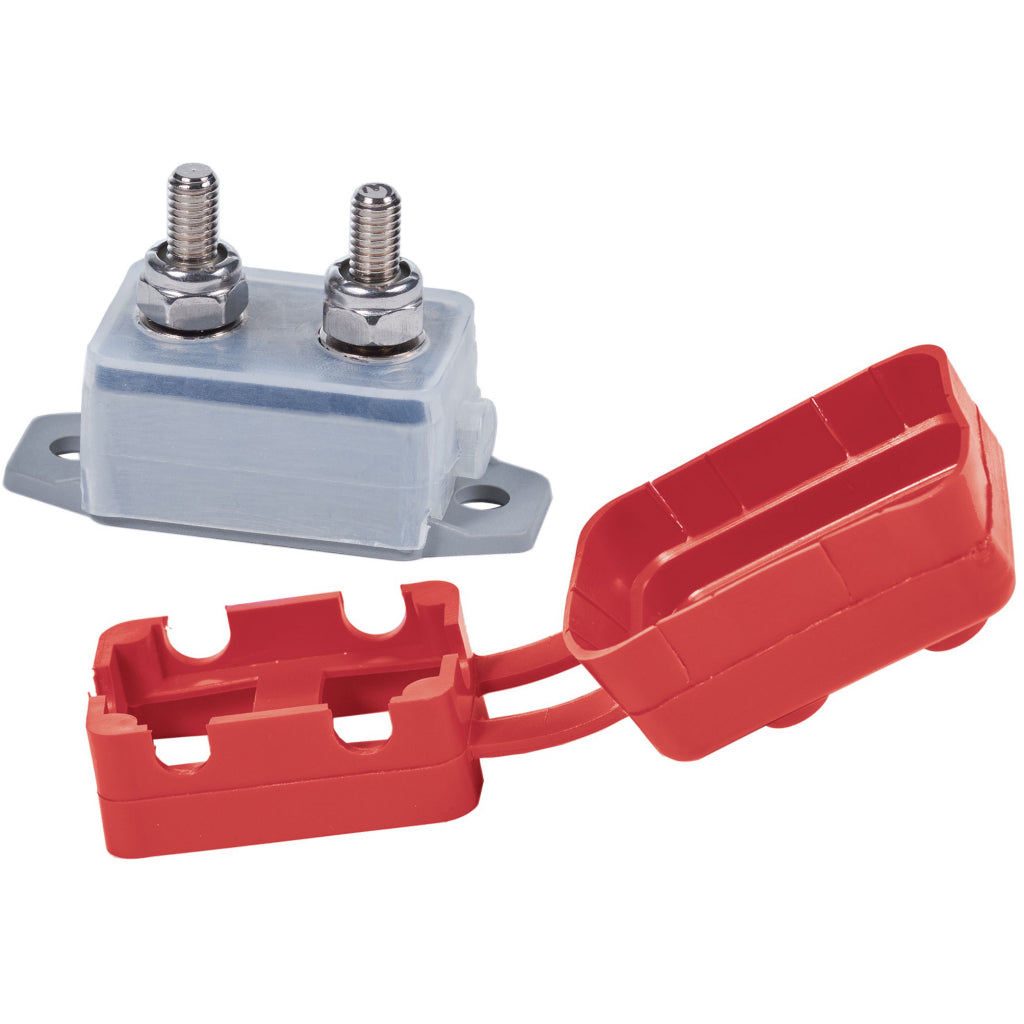

Item# 7151
Features:
- Corrosion resistant materials to withstand harsh environments.
- IP64 water resistant boot protects against dust and splashing water.
- Push-to-reset operation only disconnects when tripped.
- Stainless steel lock nuts for secure connections.
- Red insulating boot included.
Specifications:
- Amperage:10A DC
- Maximum Voltage:28V DC
- Circuit Breaker Type: Thermal trip, manual reset
- Terminal Stud Torque:20 in-lb (2.26 Nm)
- Interrupt Capacity: 2500A 28V DC
- Minimum Operating Temperature:-10° C
- Maximum Operating Temperature: 60° C
- Terminal Stud:10-32
- Weight:0.06lb (0.03 kg)
