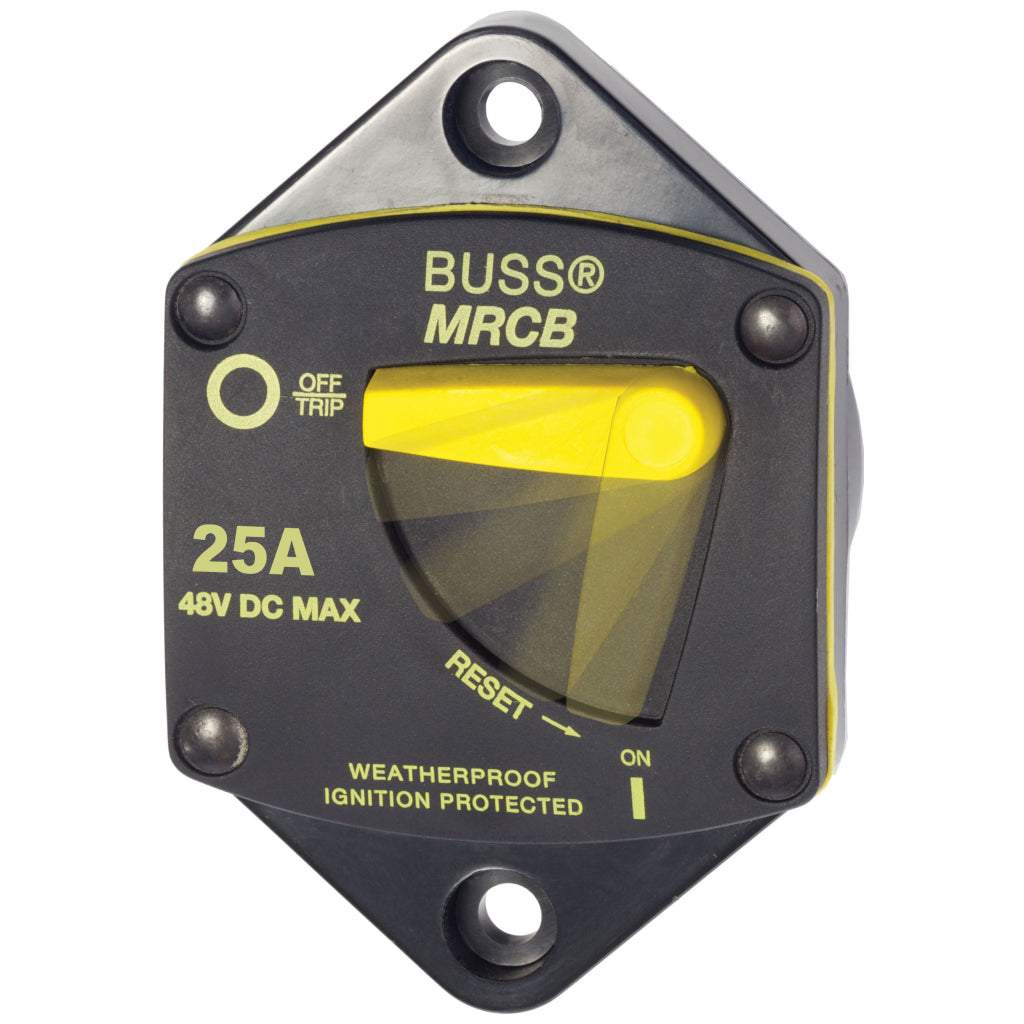

Item# 7035
Features:
- Clear, single lever operation.
- "Trip Free" design cannot be held "ON" during fault current condition.
- Waterproof
- Recessed mounting holes for clean appearance.
- Large Clearance around terminal studs accept heavy gauge wire lugs.
- Robust 5/16 M8 terminals provide high torque connections.
- Large lever with vertical/horizontal orientation provides indication of trip status.
- Ignition Protected
Specifications:
- Amperage:25A
- Maximum Voltage:48V DC
- Mounting:Panel Mount
- Circuit Breaker Type: Thermally responsive Bi-metal blade
- Terminal Stud Torque:75 in-lb (8.47 Nm)
- Interrupt Capacity:
- 5000A 12V
- 3000A 24V
- 1500A 42V
- Minimum Operating Temperature:-40° C
- Maximum Operating Temperature:85° C
- Case Material:Thermoset Polyester
- Circuit Breaker Class:Type III - switchable/manual reset - trip free
- Mounting Hole:Accept 10 (M5) Screw
- Terminal Stud Size:5/16" - 18
- Weight:0.50lb (0.23 kg)
