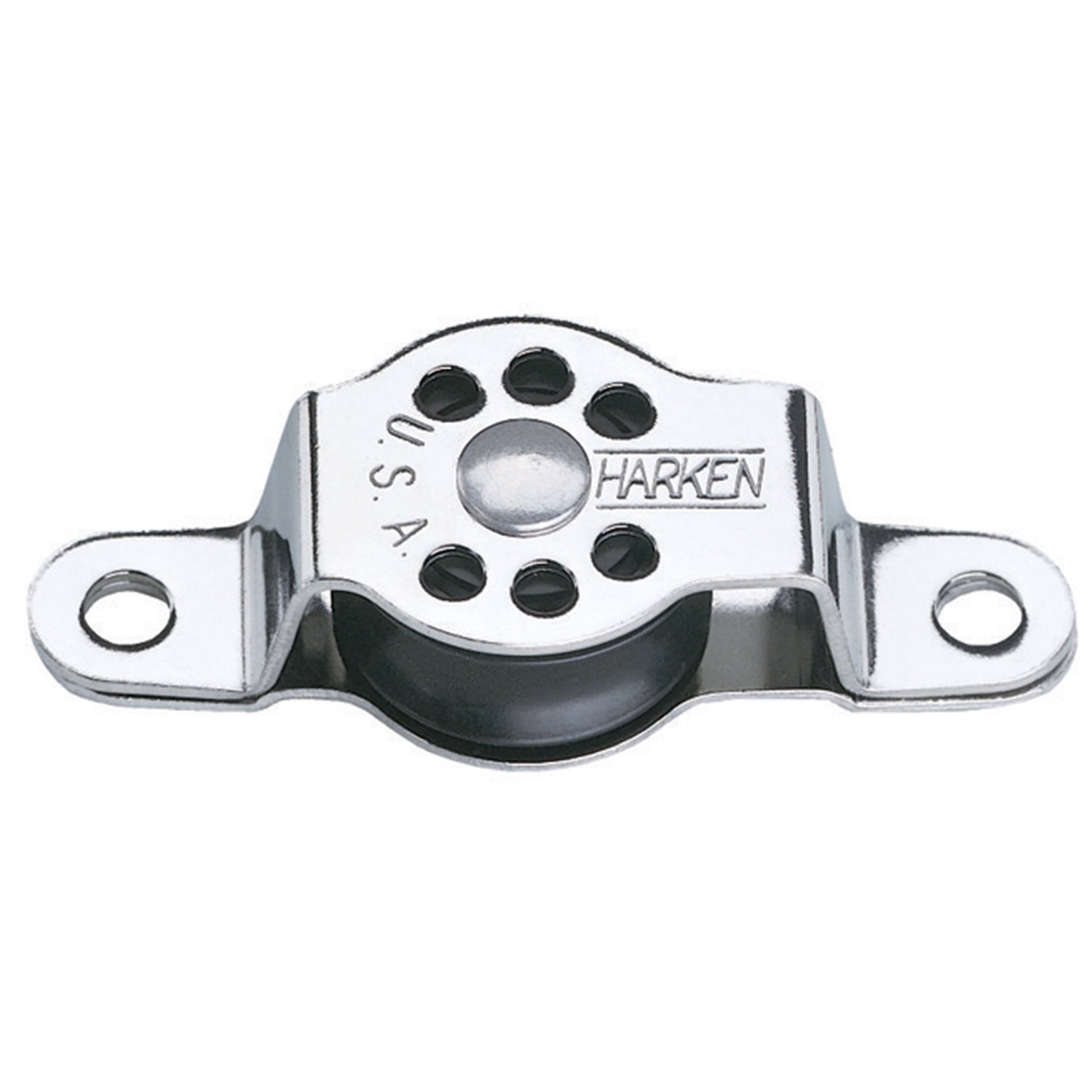

Harken Micro Cheek Block

Harken Micro Cheek Block offers low-friction efficiency in a sleek, lightweight package. Ideal for micro block applications on sailboards, small dinghies, and lightly loaded control lines on various boat sizes.

• Weight (oz): .75 oz
• Sheave Ø (mm): 22 mm
• Sheave Ø (in): 7/8 in
• Length (mm): 64 mm
• Length (in): 2 1/2 in
• Weight (g): 21 g
• Maximum line Ø (mm): 6 mm
• Maximum line Ø (in): 1/4 in
• Fasteners (mm): 5 RH mm
• Fasteners (in): #10 RH in
• Maximum working load (kg): 91 kg
• Maximum working load (lb): 200 lb
• Breaking load (kg): 544 kg
• Breaking load (lb): 1200 lb
• Mounting hole spacing (mm): 52 mm
• Mounting hole spacing (in): 2 1/16 in
