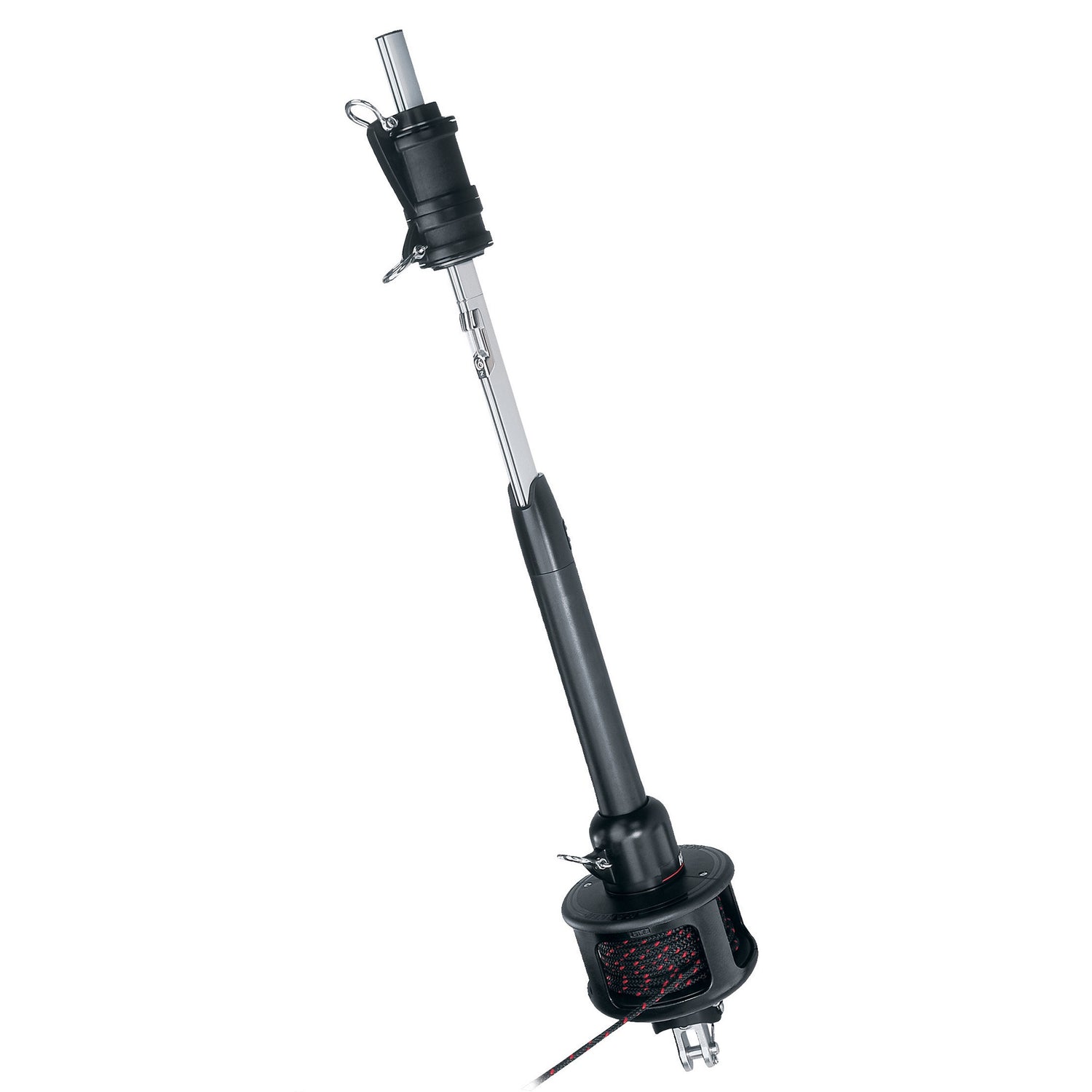

Harken MKIV Furling System - Unit 0 Clear

SKU# 7410.10.CLEAR
Check Delivery Time

Harken MKIV Furling System - Unit 0 Clear may require an additional to 2 days to ship.


Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

For seamless sailing, consider the Harken MKIV Furling System - Unit 0 Clear. This furler system offers the ideal blend of strength, aerodynamics, and longevity. Known for its user-friendly design, it's also simple to install.

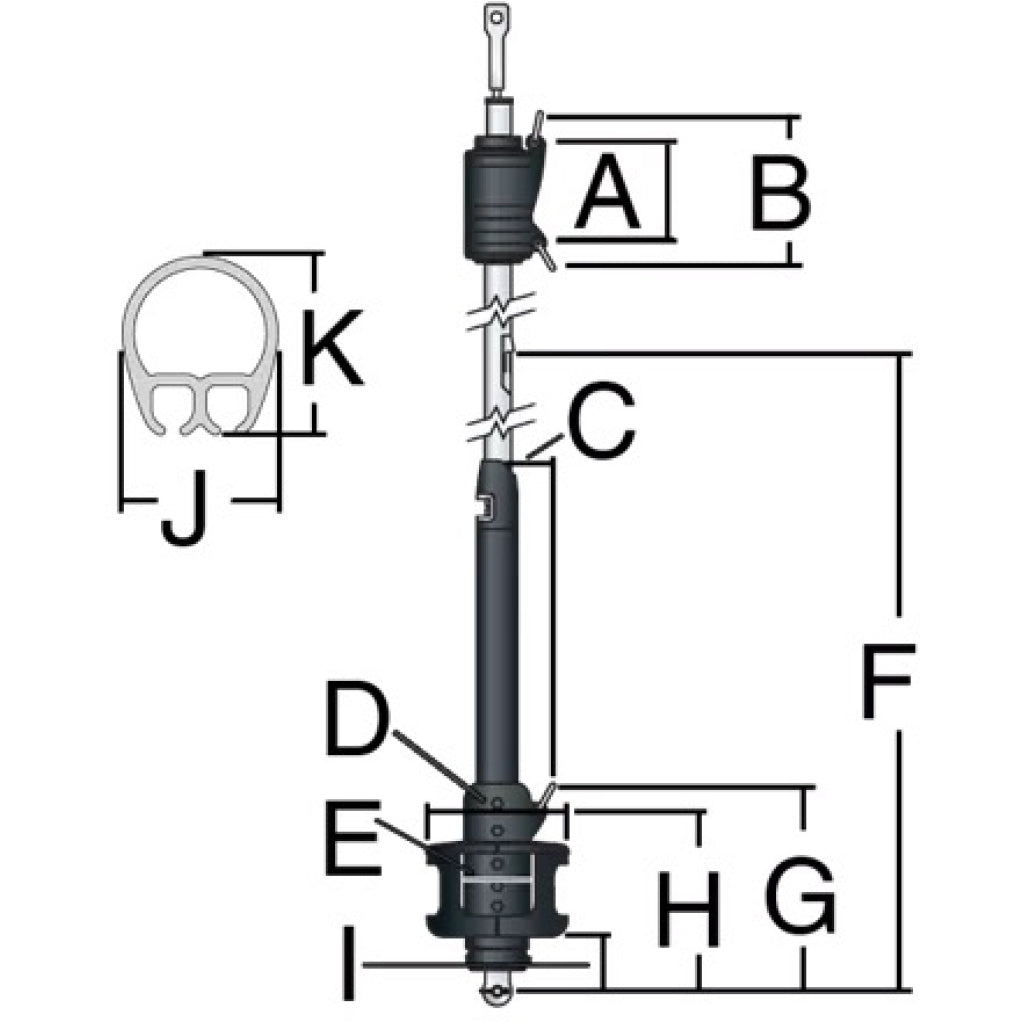

A (mm) 96 mm
A (in) 3 3/4 in
B (mm) 150 mm
B (in) 5 7/8 in
C (mm) 47 mm
C (in) 1 7/8 in
Wire Ø (1 x 19 SS) (mm) 6 mm
Wire Ø (1 x 19 SS) (in) 7/32 in
Rod Ø (mm) 5.03 mm
Rod Ø (dash) -6
Clevis pin Ø (mm) 11.1 mm
Clevis pin Ø (in) 7/16 in
Standard headstay length (m) 11.77 m
Standard headstay length (ft in) 38' 7" ft in
Maximum headstay length (m) 13.9 m
Maximum headstay length (ft in) 45' 7" ft in
D (mm) 140 mm
D (in) 5 1/2 in
E (mm) 66 mm
E (in) 2 5/8 in
F maximum (mm) 1041 mm
F maximum (in) 41 in
F minimum (mm) 997 mm
F minimum (in) 39 1/4 in
G maximum (mm) 213 mm
G maximum (in) 8 3/8 in
G minimum (mm) 203 mm
G minimum (in) 8 in
H maximum (mm) 186 mm
H maximum (in) 7 5/16 in
H minimum (mm) 175 mm
H minimum (in) 7 in
I maximum (mm) 59 mm
I maximum (in) 2 5/16 in
I minimum (mm) 51 mm
I minimum (in) 2 in
J (mm) 23 mm
J (in) 7/8 in
K (mm) 26 mm
K (in) 1 1/32 in
Extrusion length (m) 2.13 m
Extrusion length (ft in) 7' ft in
Luff tape size (mm) 5 mm
Luff tape size (in) 6 (6/32) in

Item 7410.10.CLEAR
