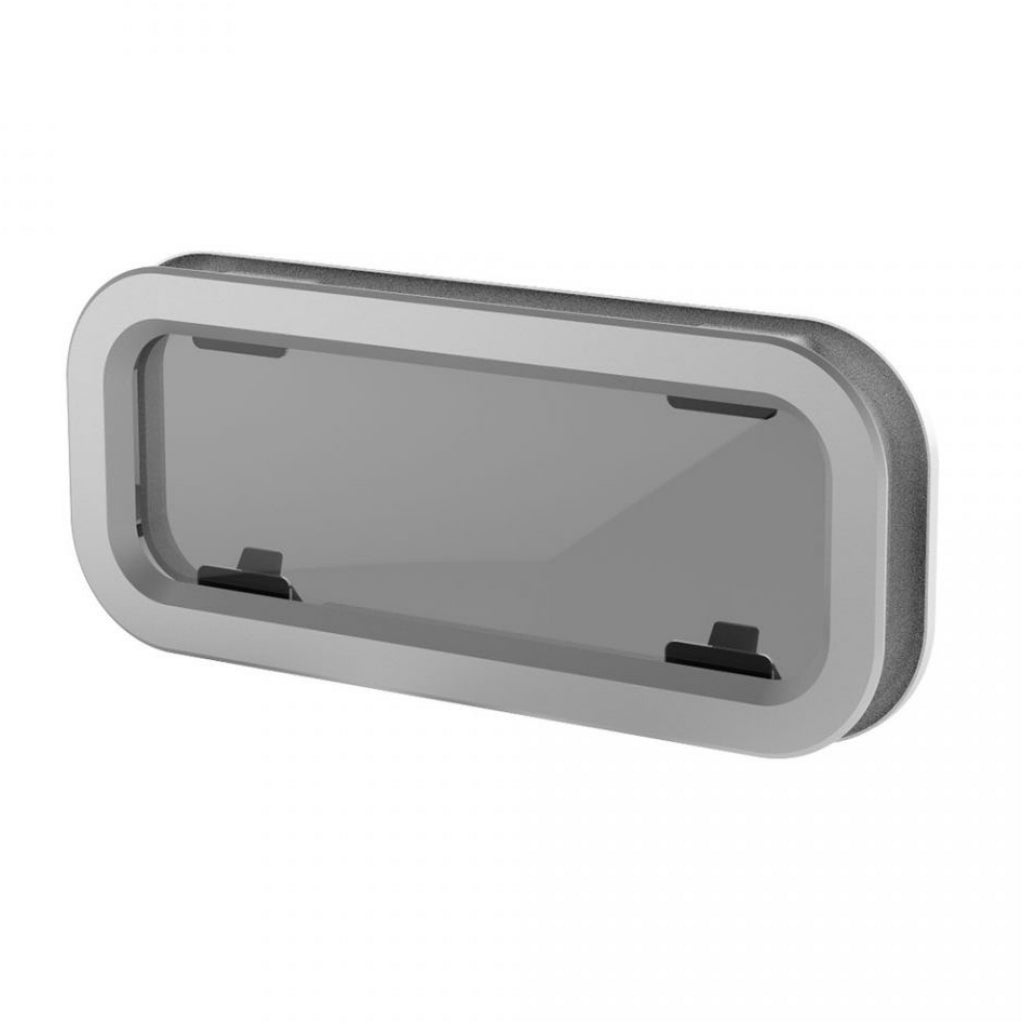

The Lewmar Newsz3 Smoke Open White Portlight seamlessly integrates with Lewmar hatches, offering a stylish, affordable, and user-friendly solution. Renowned globally, this portlight is a top choice for sailboats, known for its reliability, ease of installation, and competitive pricing, enhancing the aesthetics and functionality of marine vessels worldwide.
- Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame
- Can be installed with sealant or closed cell PVC tape
- White ABS Plastic Trim
- Supplied complete with flyscreen (except sizes 4L and 4R)
- Full range of spare parts available.
- All portlights are supplied with 12 off M5 x 25 screws for hull thickness 17-25 mm
- Opening angle at 21mm hull thickness is 165°
| Description | Imperial | Metric | |
| X (Length) | 7 1/2in. | 191.00mm | |
| Y (Width) | 17 2/3in. | 449.00mm | |
| Z (Height) | 1/6in. | 4.00mm | |
| R (Radii) | 2 4/9in. | 62.00mm | |
| X1 (Length) | 6 3/4in. | 171.00mm | |
| Y1 (Width) | 16 8/9in. | 429.00mm | |
| R1 (Radii) | 2.00 in. | 52.00mm | |
| Portlight weight | 3.74lb. | 1.70kg | |
| Acrilic Window Thickness | 2/5in. | 10.00mm |
