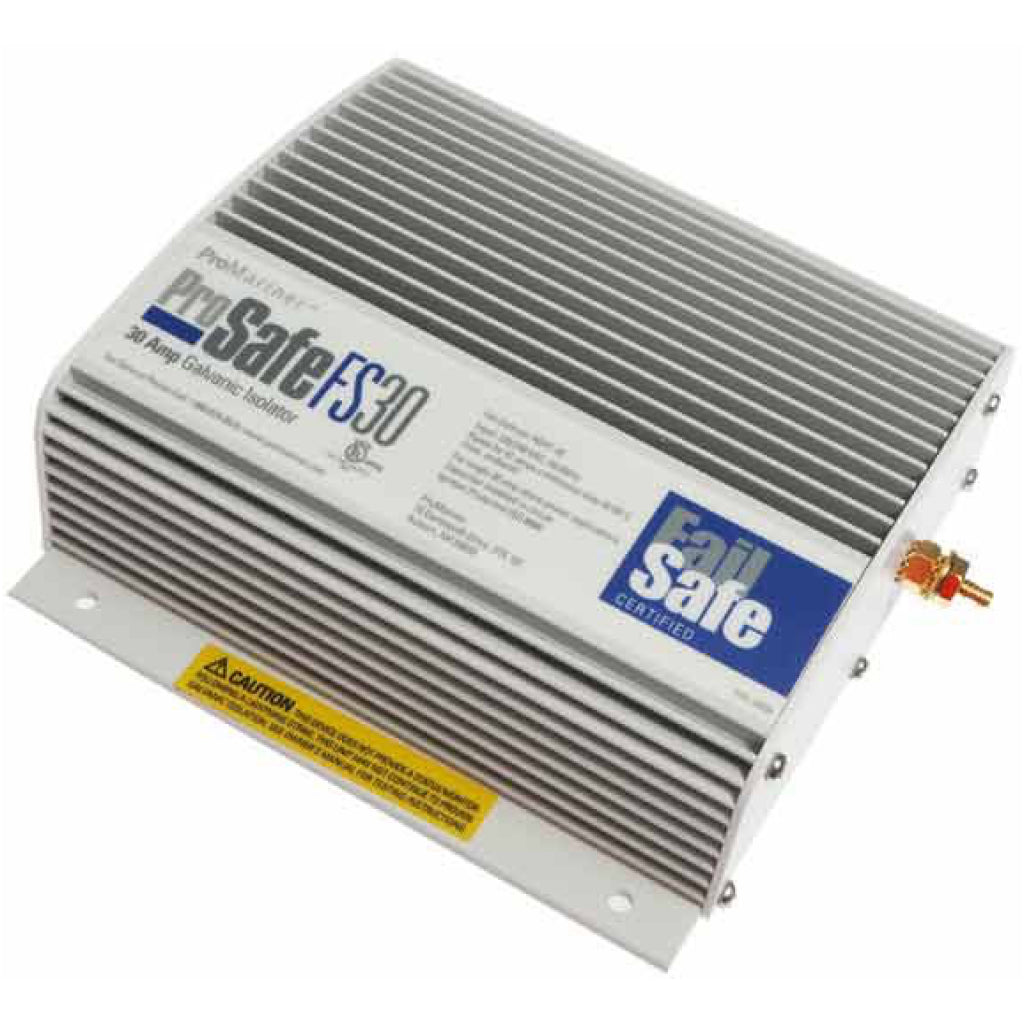

The ProSafe FS Series is UL Certified to meet the parameters of the ABYC A-28 recommendation

ProSafe FS installs easily and does not require a dedicated monitor to verify the operational status of the galvanic isolator as required by non FailSafe Certified galvanic isolators.

It is built on robust Flat Pack Semiconductor platforms, ensuring that in the event of a failure, the failure is safe by not compromising the ground continuity on-board when connected to AC Shore Power.

Ensures shore power safety ground wire is maintained through the isolator.

Features:

• Flat Pack High Power Semiconductors: Robust high power diodes allow the FS Series to meet the new FailSafe criteria for conducting inrush currents 3,000 and 5,000 amps (FS30 and FS60 respectively) for the required duration period.
• Innovative Design: The FS60 will cool itself in the event it must conduct current insuring cooler operation in this mode
• Ignition Protected: Meets ISO 8846 and either model can be mounted within an engine compartment
• Gold Plated Terminations: Simply install in your on board green safety ground wire (between your AC inlet and your AC Panel) to separate your DC Bonding System from your Shore AC Green wire
