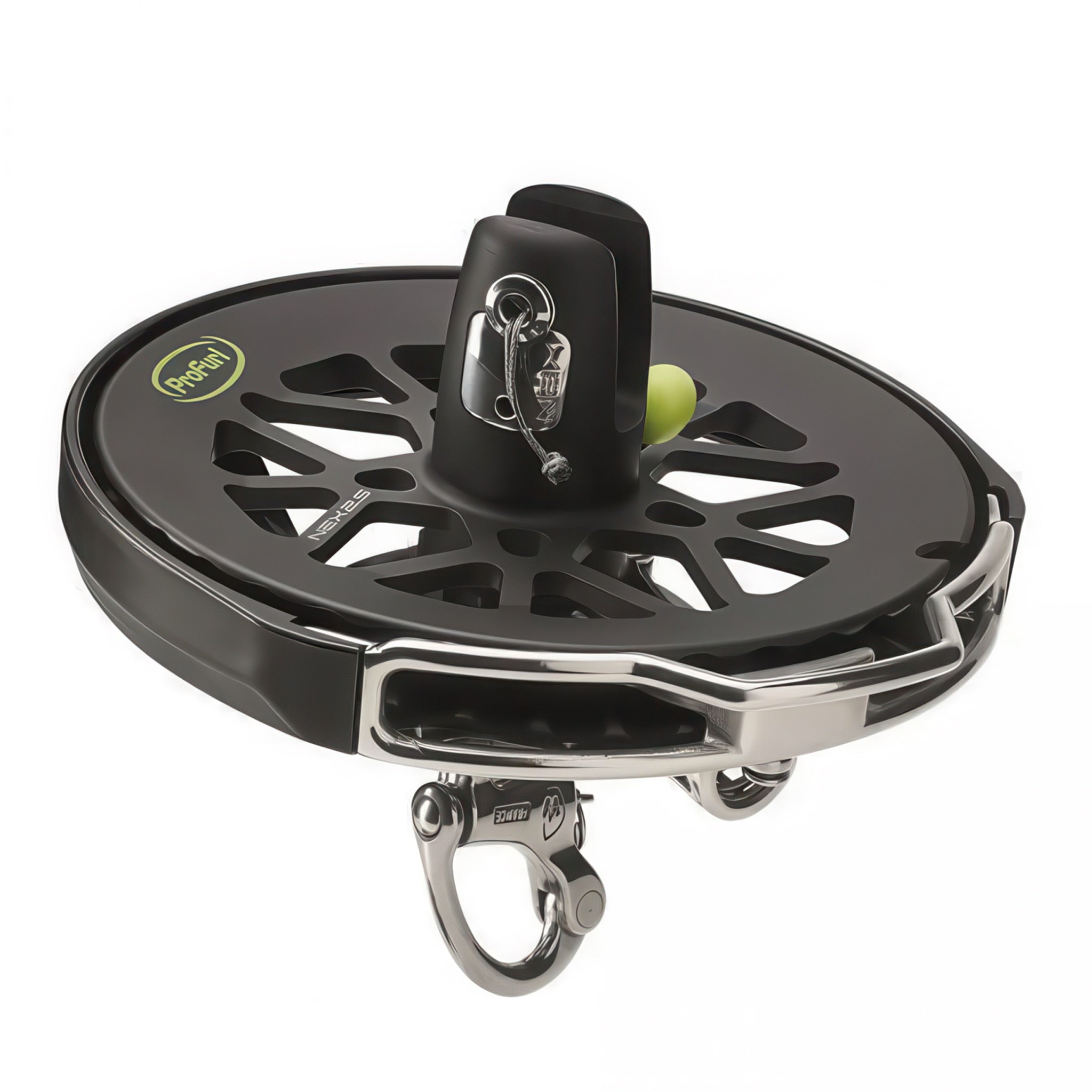

The NEX 4.0 free flying furler from Profurl is engineered for high-performance control of flying sails such as gennakers, Code Zero, solent, and staysails. Designed for yachts over 80 feet with sails up to 350m², it’s part of Profurl’s latest generation of furlers featuring key innovations in performance, safety, and handling.

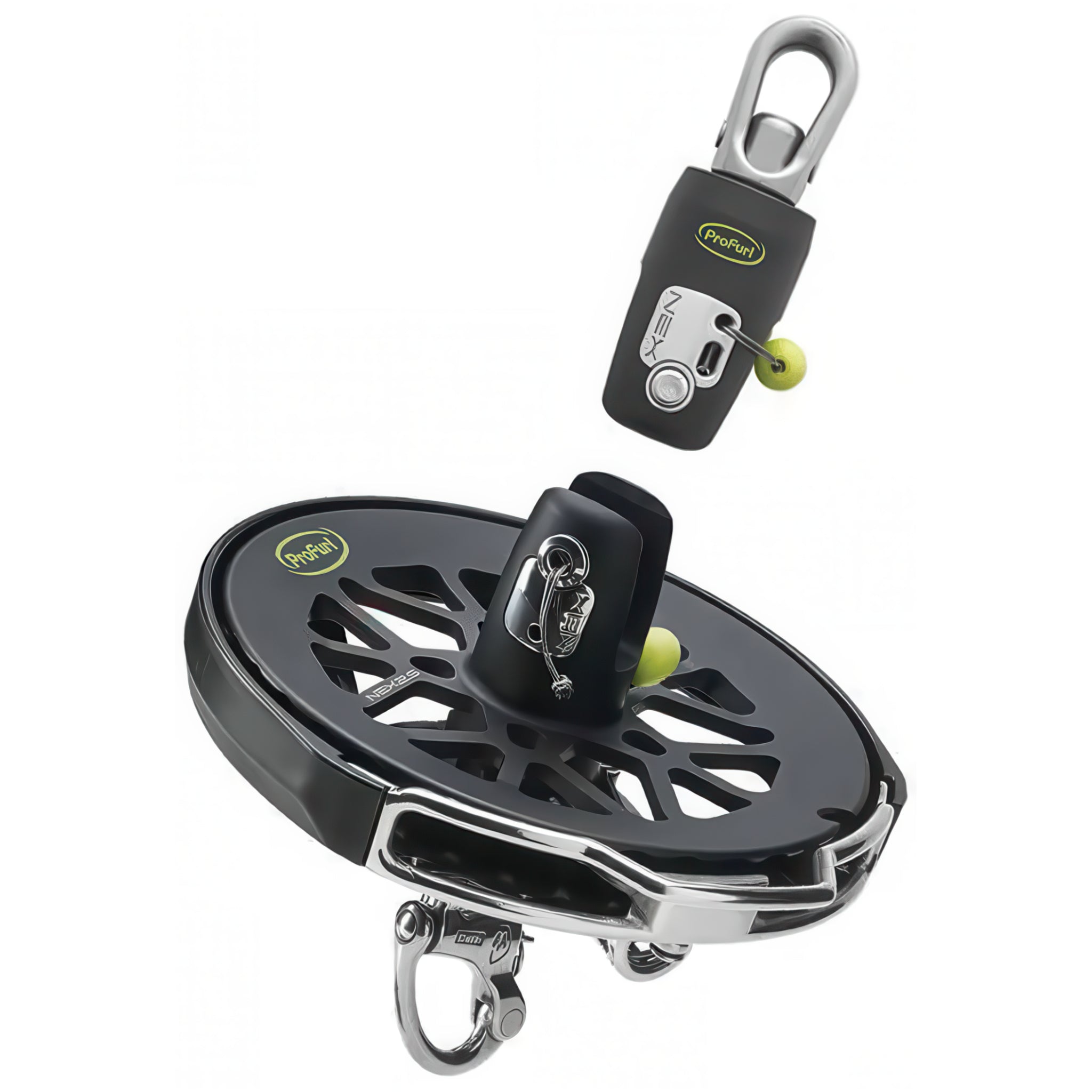

This model includes a drum with clevis pin snap shackle and a top swivel with a high-resistance D-shackle. The FURLASSIST ratchet system is available separately and can be added at any time.
Key features:
- S-GRIP technology – Groove design enhances line grip, even when wet, for smoother furling and reduced line wear
- Optimized spool diameter – Provides ideal torque for easier furling with less effort
- Lightweight construction – Spool, swivel, and terminals are designed for reduced weight and improved sail response
- SAFE SYSTEM – Stops the furling line during sail deployment to prevent free-running, accidental damage, and line wear
- I-CONNECT quick attachment – Integrated, single-handed sail connection system with a captive pin for safe and efficient sail changes
| Description | Imperial | Metric | ||
| Model | With spool | With spool | ||
| Working load | 11023.10lb | 5.00ton | ||
| Type of sails | For light sails (gennaker, code zero) and heavy sails (solent, staysail) | For light sails (gennaker, code zero) and heavy sails (solent, staysail) | ||
| Lower terminal | Clevis snap shackle | Clevis snap shackle | ||
| Upper terminal | Halyard shackle | MX | Halyard shackle | MX |
| Anti twist torque rope Ø | Max. 5/8in | Max. 16.00mm | ||
| Continuous line Ø | 3/8in | 10.00mm | ||
| Weight / spool | 2.42lb | 1.10kg | ||
| Weight / swivel | 1.10lb | 0.50kg | ||
| Height / drum mechanism | 4 5/16in | 109.50mm | ||
| Drum diameter | 7 11/16in | 195.00mm | ||
| Height / swivel | 3 45/64in | 94.00mm | ||
| Width / swivel | 1 31/32in | 50.00mm |
Item NEX 4.0
