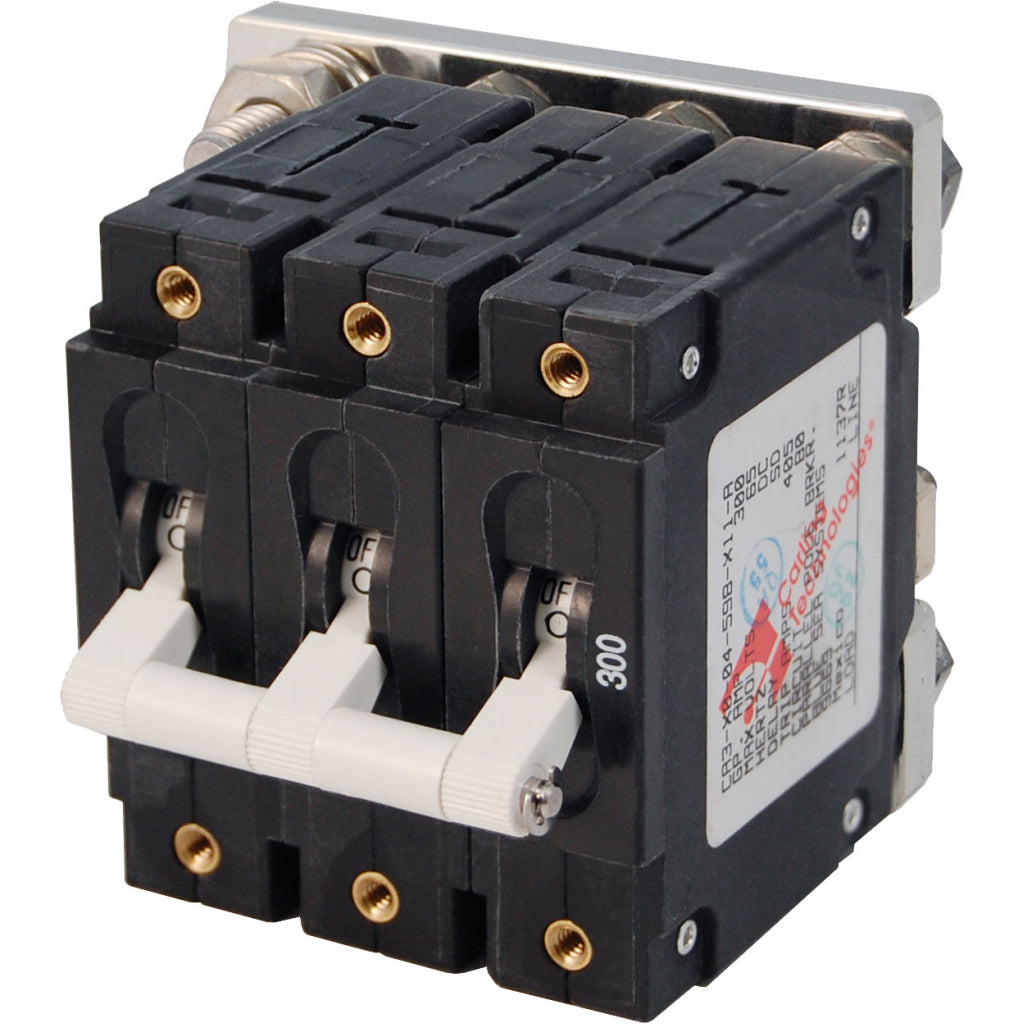

Item# 7271

Features:

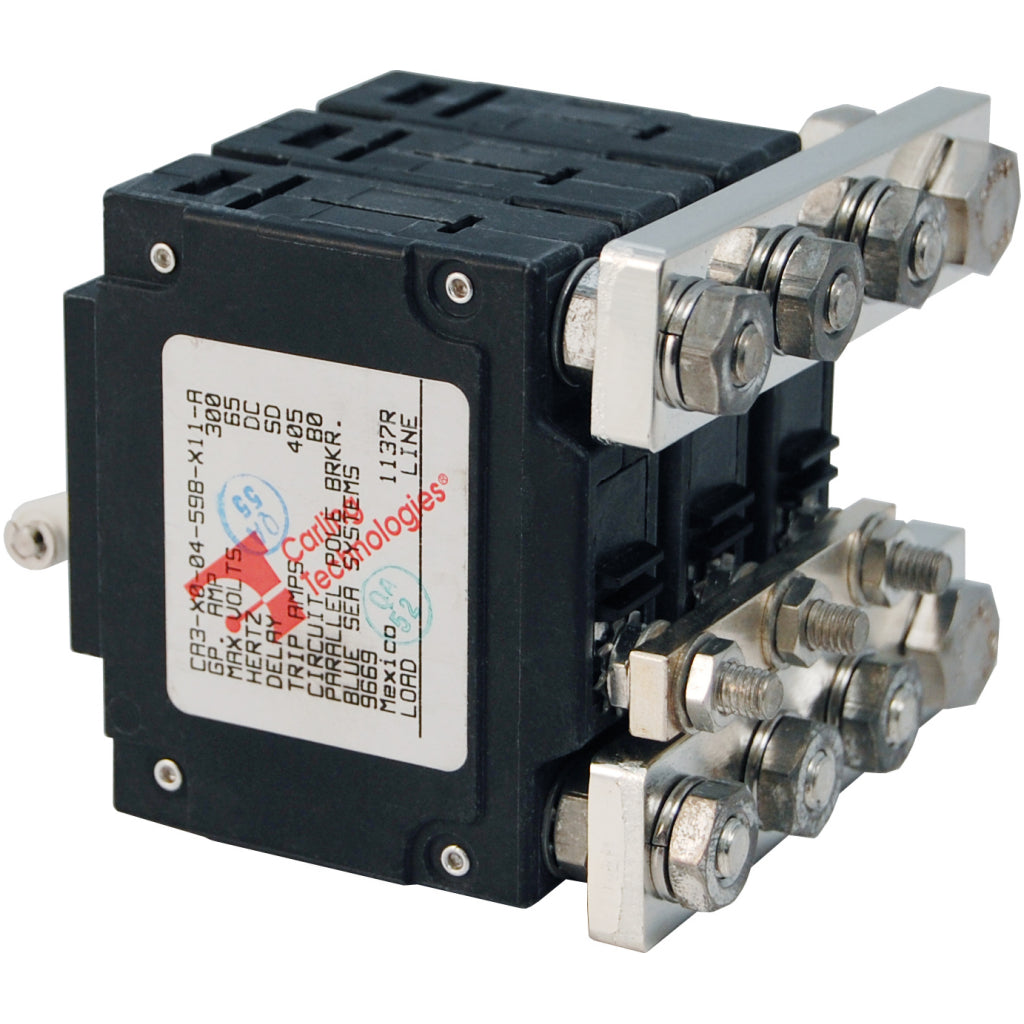

• Paralleled poles have 5/16" stud on bus
• Provides overcurrent protection for inverters, bow thrusters, and windlasses
• Combines switching and circuit protection into a single device
• "Trip Free" - cannot be held closed after trip

Specifications:

• Amperage:300A DC
• Color:White
• Actuator Style: Toggle
• Poles:3
• Maximum Voltage:120V AC
• 240V AC
• 65V DC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Terminal Stud Torque:35 in-lb (3.95 Nm)
• Interrupt Capacity:5000A 65V DC
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw:6-32 Stainless Steel
• Mounting Screw Torque:6 in-lb (0.68 Nm)
• Switching Cycles:10000
• Terminal Stud:1/4-20 Tin-Plated Brass
• Weight:0.90lb (0.41 kg)
