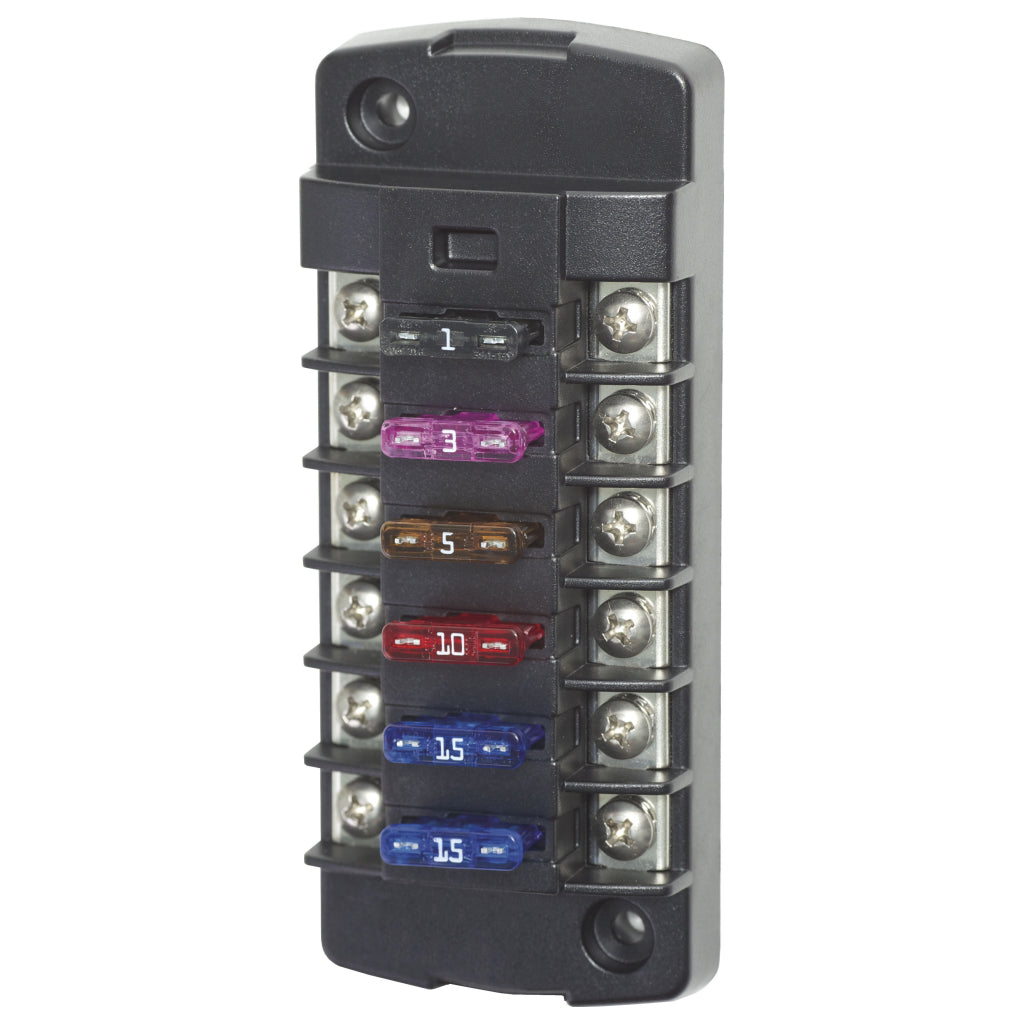

Blue Sea 6 Circuit Blade Fuse Block

Item Number: BS5037

Blue Sea 6 Circuit Blade Fuse Block usually available 2-5 business days upon ordering.


  • Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system
  • Accepts ring or snap fork type terminals
  • Includes two terminal block jumpers


  • Circuits:6
  • Maximum Amperage: 30A per circuit
  • 40A per jumped circuit group
  • Maximum Voltage:32V DC
  • Mounting:8 Screw (M4)
  • Screw Terminal Torque:18 in-lb (2.03 Nm)
  • Screw Terminal Type:8-32 with Captive Star Lockwasher
  • Weight:0.35lb (0.16 kg)
