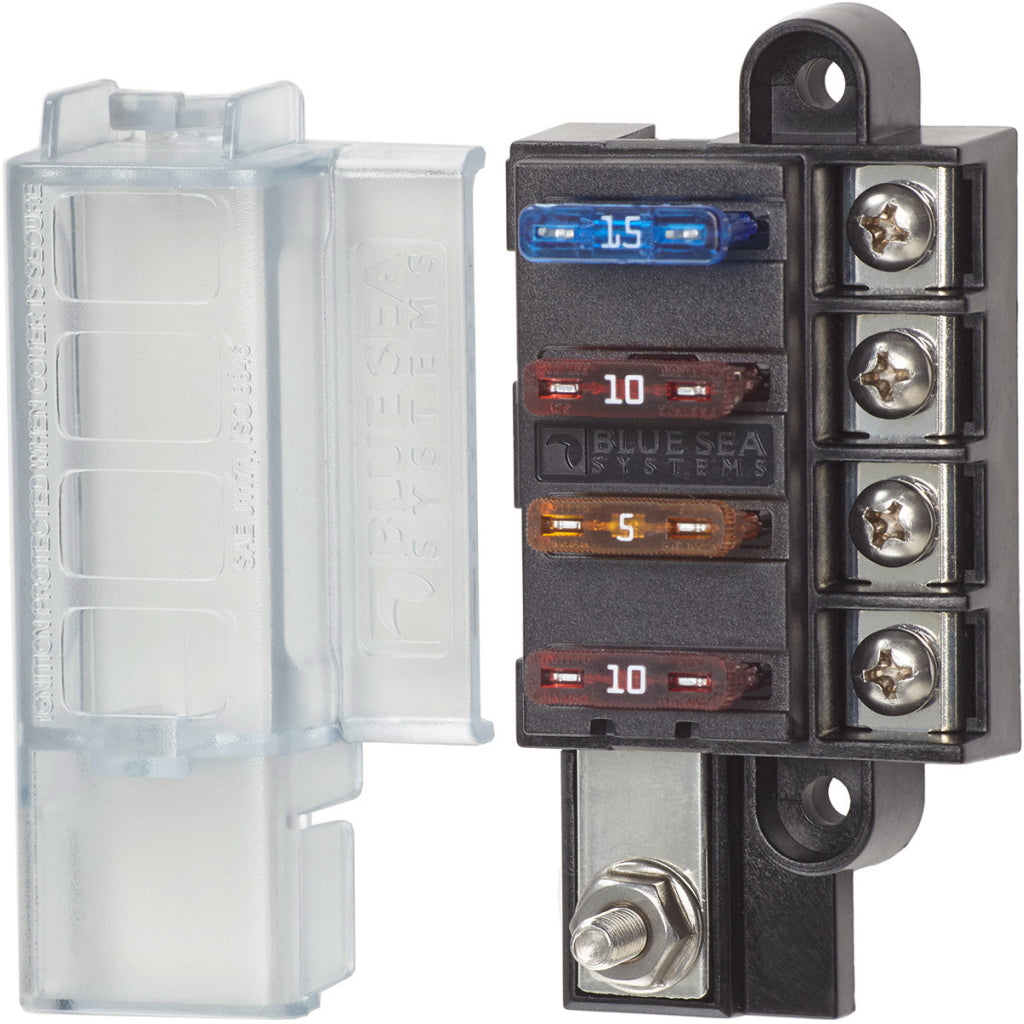

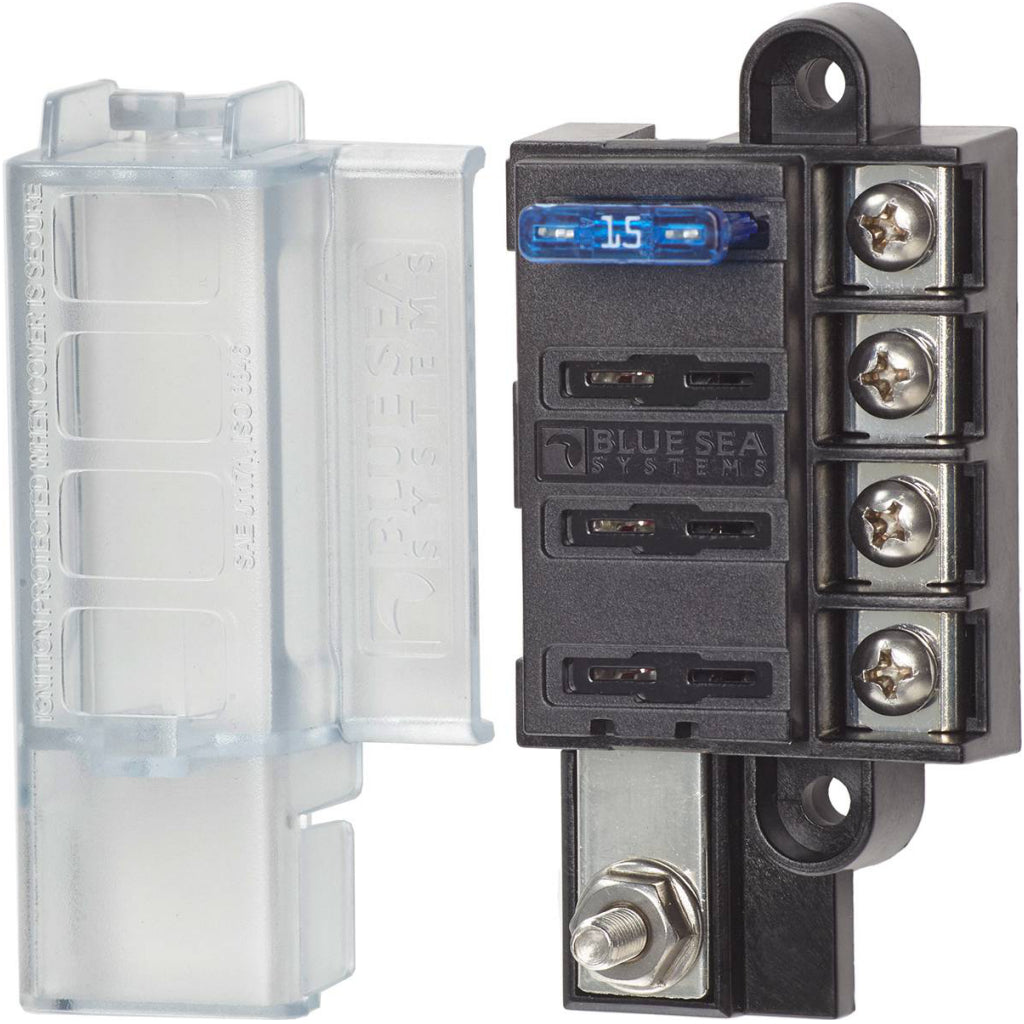

Blue Sea Blade Compact Fuse Blocks

SKU# BS5045
$4299
Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

Item# 5045

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint.

Features:

  • Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Single side design allows wire entry from one side to minimize footprint
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Includes 4 write-on circuit labels
  • Fuses sold separately

Specifications:

<
  • str>Circuits:4
  • Maximum Amperage:100A per block
  • 30A per circuit
  • Maximum Voltage:32V DC
  • Mounting:8 Screw (M4)
  • Terminal Stud Torque:24 in-lb (2.71 Nm)
  • Screw Terminal Torque:18 in-lb (2.03 Nm)
  • Screw Terminal Type:8-32 Scews with captive star lock washer
  • Terminal Stud Size:10-32
  • Weight:0.25lb (0.11 kg)
