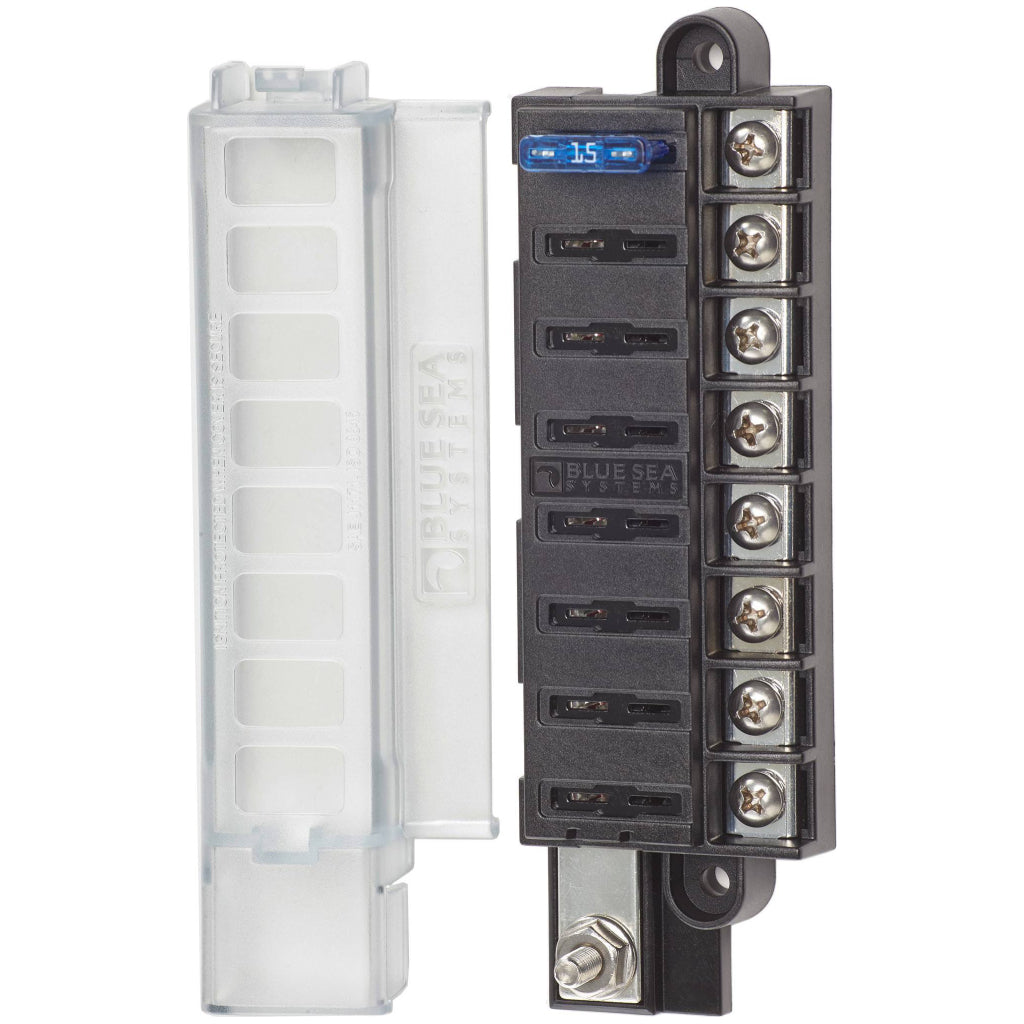

Blue Seas Systems 8 Circuit Compact Fuse Block

Item# 5046

Features:

• Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment.
• Single side design allows wire entry from one side to minimize footprint.
• Insulating cover meets ABYC/USCG insulation requirements.
• Tin-plated copper buses and fuse clips.
• Accepts ring or snap fork type terminals.
• Includes 8 write-on circuit labels.

Specifications:

• Circuits:8
• Maximum Amperage:
• 100A per block
• 30A per circuit
• Maximum Voltage:32V DC
• Mounting:8 Screw (M4)
• Terminal Stud Torque:24 in-lb (2.71 Nm)
• Screw Terminal Torque:18 in-lb (2.03 Nm)
• Screw Terminal Type:8-32 Scews with captive star lock washer
• Terminal Stud Size:10-32
• Weight:0.40lb (0.18 kg)
