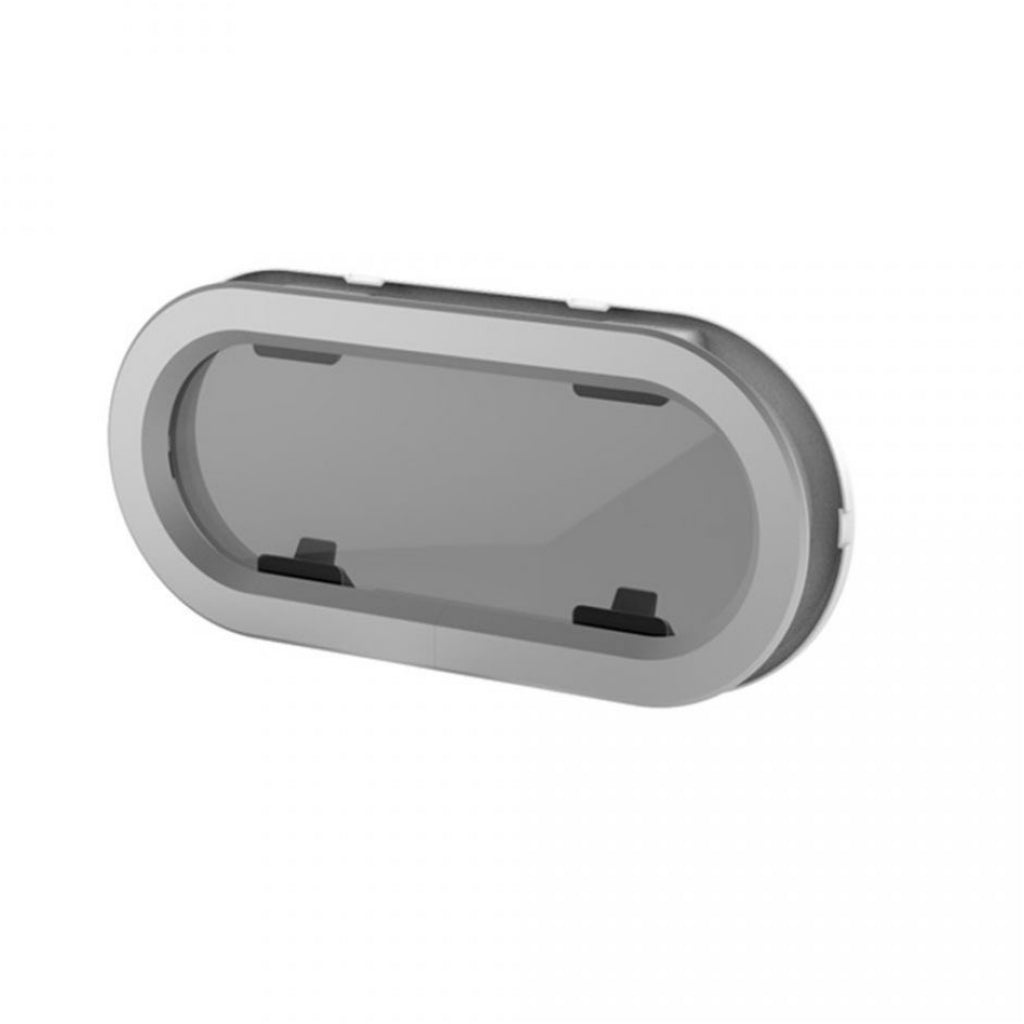

Discover the Lewmar SZ7 Re White Trim Portlight, seamlessly compatible with Lewmar hatches. Stylish, competitively priced, and easy to install. Trusted by thousands of sailboats worldwide.
- Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame
- Can be installed with sealant or closed cell PVC tape
- White ABS Plastic Trim
- Supplied complete with flyscreen (except sizes 4L and 4R)
- Full range of spare parts available
- All portlights are supplied with 12 off M5 x 25 screws for hull thickness 17-25 mm
| Description | Imperial | Metric |
| Width (X) | 7 1/2in. | 191.00mm |
| Length (Y) | 16 3/4in. | 425.00mm |
| Height (Z) | 5/32in. | 4.00mm |
| Radii (R) | 3 3/4in. | 95.50mm |
| Cut out Width (X1) | 6 3/4in. | 171.00mm |
| Cut-out length (Y1) | 15 15/16in. | 405.00mm |
| Cut out Radii (R1) | 3 6/16in. | 85.50mm |
| Weight | 5.28 lb. | 2.40 kg. |
| Acrylic Window Thickness | 5/16in. | 8.00mm |
