When building a windlass, it is crucial to choose materials that are lightweight, high in mechanical strength, and corrosion-resistant. Durability should be enhanced through chemical or galvanic treatments to improve anti-corrosion properties.
Each component of the windlass should be specifically designed for marine use, avoiding motors, gearboxes, or other parts not suited for the marine environment. While industrial components might offer lower costs, they lack the resilience required for the demanding conditions of yachts and boats.
Therefore, every component in a Lofrans’ windlass is designed and manufactured to withstand harsh marine conditions, even at a higher cost than standard industrial parts.

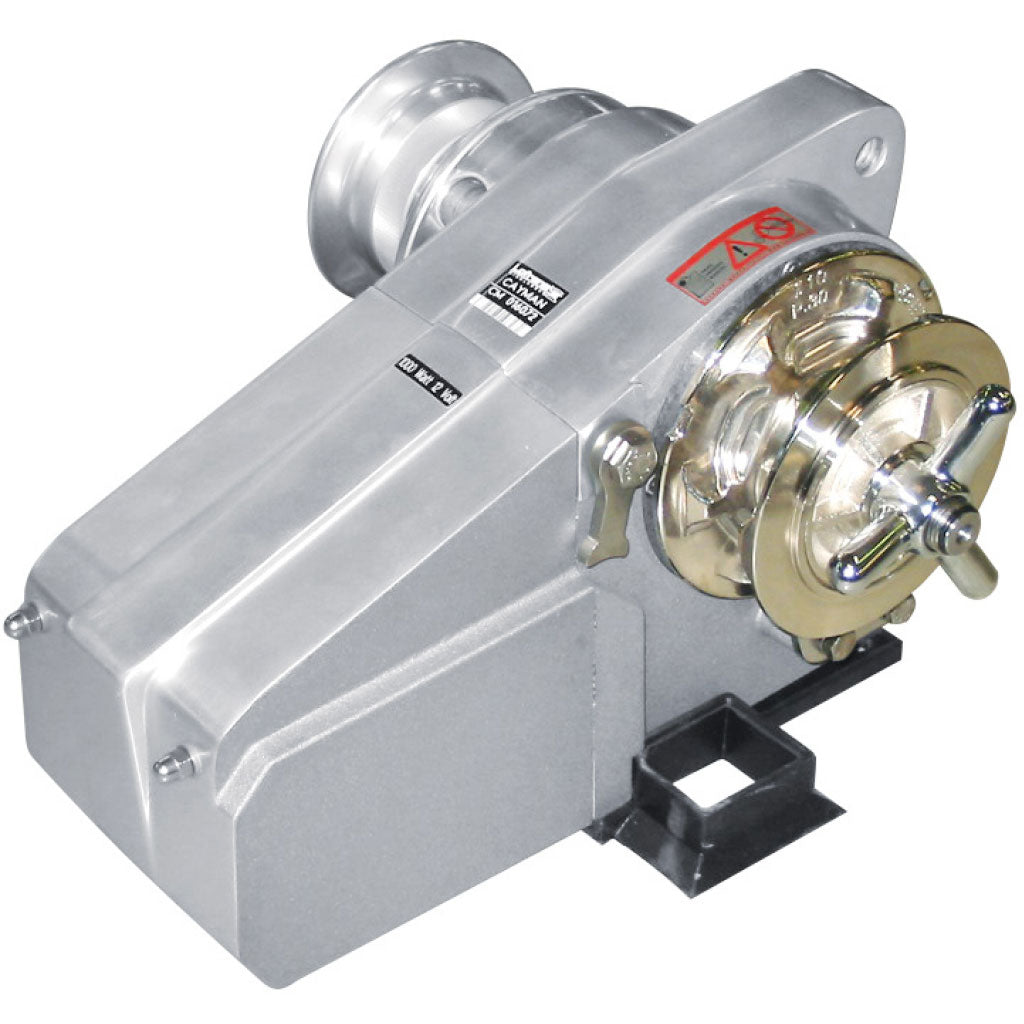

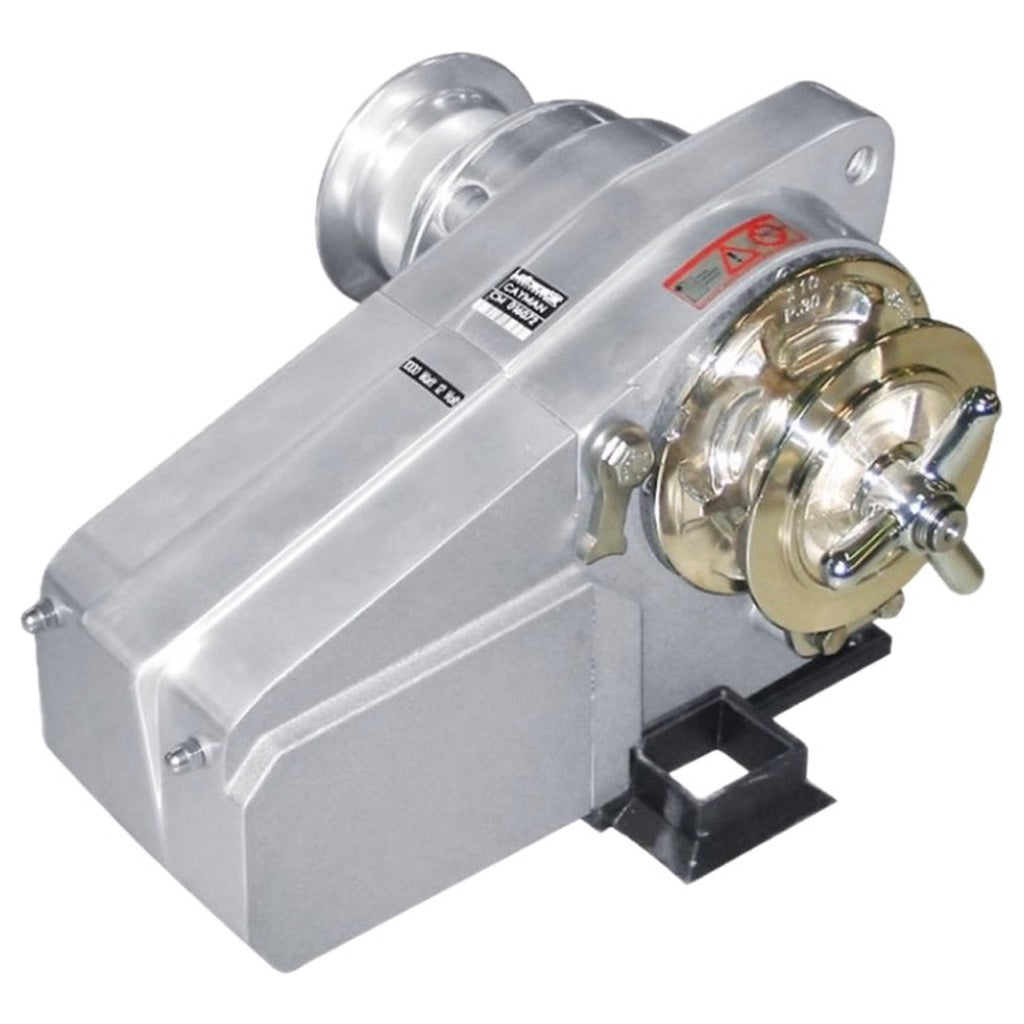

- Suitable for boats 35-45' in length
- Constructed with special marine-grade aluminum alloy
- Hot-forged gypsy in special bronze for enhanced mechanical strength
- Equipped with emergency manual override
- Gypsy selection based on the size/type of chain used
- Line Speed at Working Load: 25 m/min (75 ft/min)
- Working Load Capacity: 170 kg (374 lbs)
- Current Draw: 70-100 Amp (1,000 Watt, 12 Volt)
- Maximum Pull: 1,250 kg (2,755 lbs)
- Weight: 25 kg (55 lbs)
- Main shaft crafted from stainless steel AISI 431 for high mechanical strength
- Windlass body, drum, and components made from special polished and anodized aluminum alloy
- Worm-wheel constructed of alloy bronze; worm made from 38NCD4 steel
- Screws and outer components made from stainless steel AISI 304 or AISI 316
- Features a Lofrans gearbox for high mechanical efficiency, specifically designed for marine environments
- Gearbox ratio between 1/50 and 1/75 for optimal performance and speed balance
- Long-life oil bath lubrication reduces noise and protects internal gearbox components
- Black anodized gear case for extended protection
- Lofrans electric motors manufactured to IP 56 protection standard (DIN 40 050) for water resistance
- Shaft, screws, nuts, and cover made from stainless steel
- Electric motor case protected by black paint for durability
