SKU: TS 081212
ALEXANDER-ROBERTS CO.

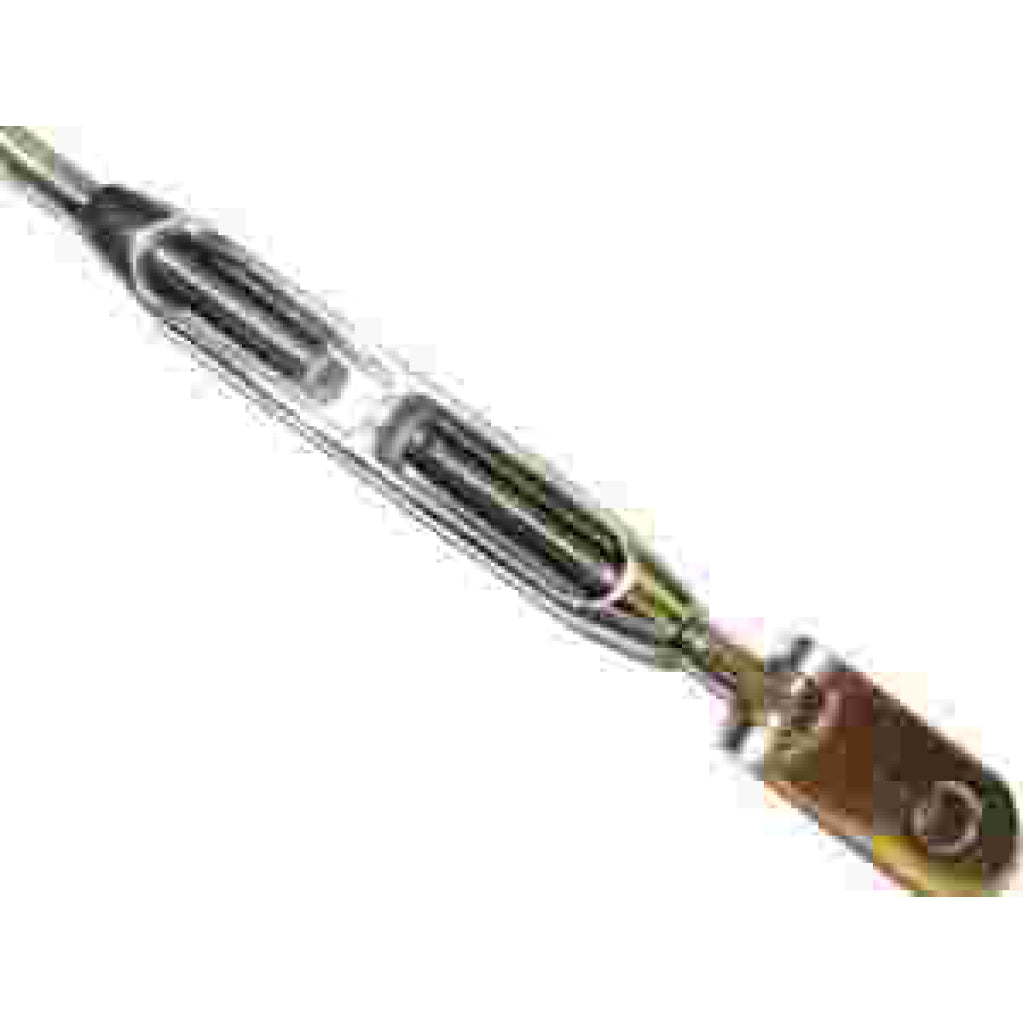

  • Open-Body Swage Turnbuckles
  • Chrome-plated bronze body
  • Stainless steel toggle
  • Arco Part # Wire Size Body Size Pin Size Length Extended Length Closed Tensile Strength
    TS040808 1/8" 1/4" 1/4" 10 5/16" 7 3/16" 3400 lbs
    TS050808 5/32" 1/4" 1/4" 10 3/8" 7 1/4" 3400 lbs
    TS051010 5/32" 5/16" 5/16" 11 1/4" 8" 4900 lbs
    TS061010 3/16" 5/16" 5/16" 11 3/8" 8 1/8" 3400 lbs
    TS061212 3/16" 3/8" 3/8" 13 3/16" 9 1/4" 8900 lbs
    TS071212 7/32" 3/8" 3/8" 13 1/4" 9 5/16" 8900 lbs
    TS071414 7/32" 7/16" 7/16" 13 7/8" 9 7/8" 11500 lbs
    TS081212 1/4" 3/8" 3/8" 13 1/4" 9 5/16" 8900 lbs
    TS081414 1/4" 7/16" 7/16" 14 1/2" 10 1/8" 11500 lbs
    TS081616 1/4" 1/2" 1/2" 14 1/2" 10 1/8" 15000 lbs
    TS091616 9/32" 1/2" 1/2" 14 9/16" 10 3/16" 15000 lbs
    TS101616 5/16" 1/2" 1/2" 14 9/16" 10 3/16" 15000 lbs
    TS101620 5/16" 1/2" 5/8" 14 9/16" 10 3/16" 15000 lbs
    TS102020 5/16" 5/8" 5/8" 17 3/4" 12 3/4" 22000 lbs
    TS122020 3/8" 5/8" 5/8" 23 1/8" 12 3/4" 22000 lbs
