SKU: V9126

ALTAIR – OMNIDIRECTIONAL TV ANTENNA – 27,5 DB - DIAMETER 250 MM (10’’) – 50023/98 AMPLIFIER - 20 M (66') COAXIAL CABLE - V9144 CONNECTOR

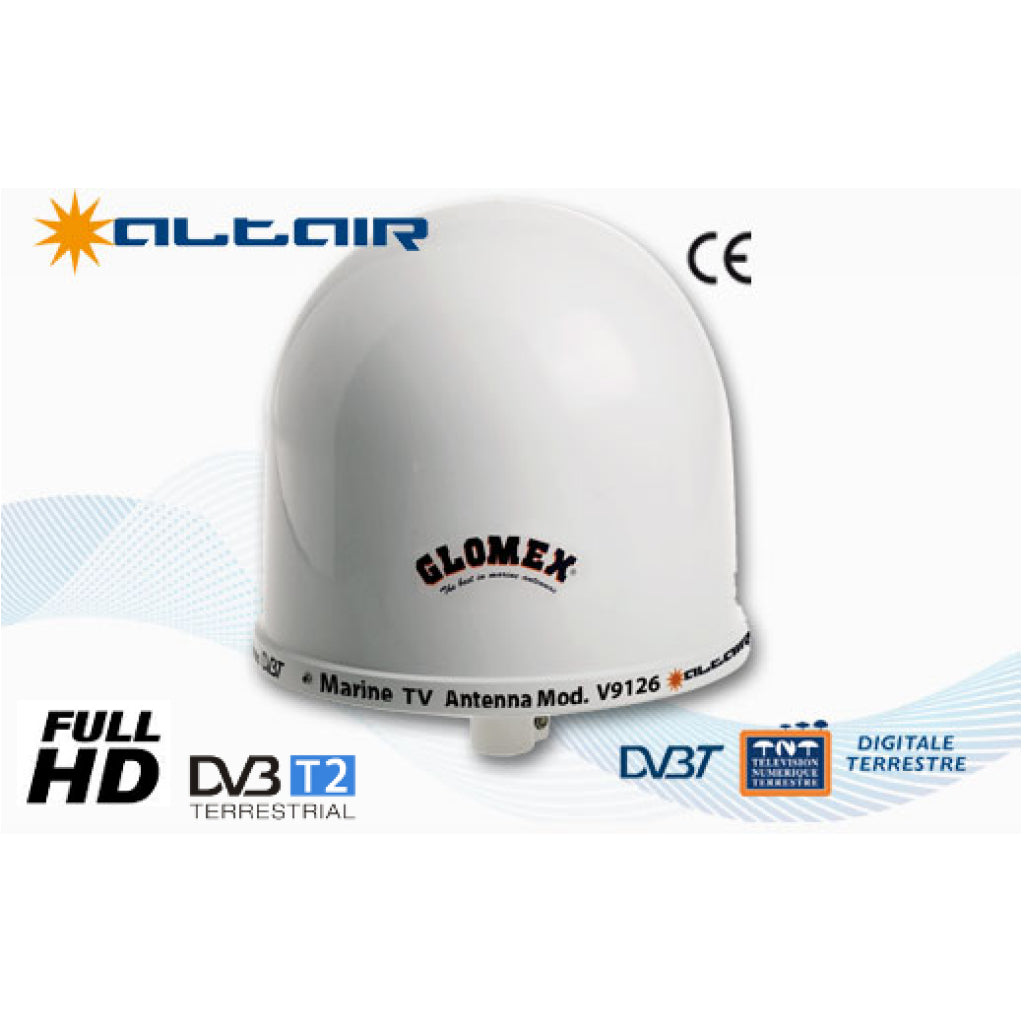

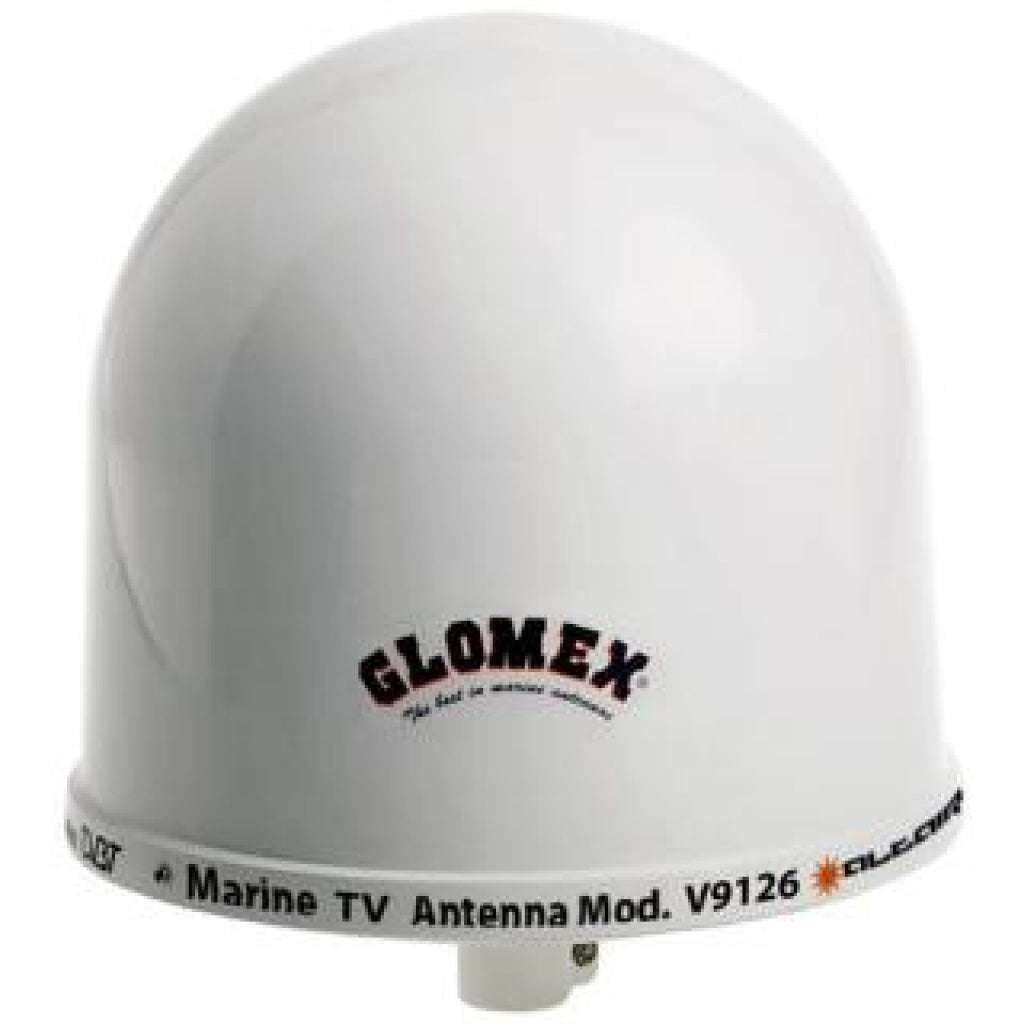

Altair is the omni-directional TV antenna ensuring high performance in signal reception with both polarizations: horizontal and vertical.

In fact Altair, is different to the other omni-directional antennas, in that it has a Radome with dimensions (diameter 250 mm/10'', height 300 mm/12'') allowing the installation of the vertical reception component inside. Altair is equipped with amplifier with by-pass function (50023/98.) In order to keep a balanced look of your boat, Altair can be matched to the VHF RA124, as they are identical in shape and size.

TECHNICAL SPECIFICATIONS

  • ANTENNA DIAMETER: 250 mm (10'')
  • ANTENNA HEIGHT: 300 mm (12'')
  • BASE DIAMETER: 25 mm (1'')
  • ANTENNA WEIGHT: 430 g (15,17 oz)
  • RADOME MATERIAL: U.V. resistant ASA
  • ANGLE OF RECEPTION: 360°
  • POLARIZATION: Horizontal / Vertical
  • IMPEDANCE: 75 ohms
  • FREQUENCY RANGE: 40/890 MHz
  • GAIN AVERAGE: 27,5 dB
  • NOISE FACTOR: 2,1 dB
  • POWER CONSUPTION: 25 mA
  • POWER SUPPLY: 12/24 Vdc
  • ANTENNA AMPL/BY PASS: Yes
  • ADJUSTABLE GAIN: Yes
  • TV SET MAX: 2
  • TERMINATION F: female
  • CONNECTOR SUPPLIED F: male gold plated connector (V9144)
  • A/B SWITCH: No
