17000 BTU Diesel Heater Kit

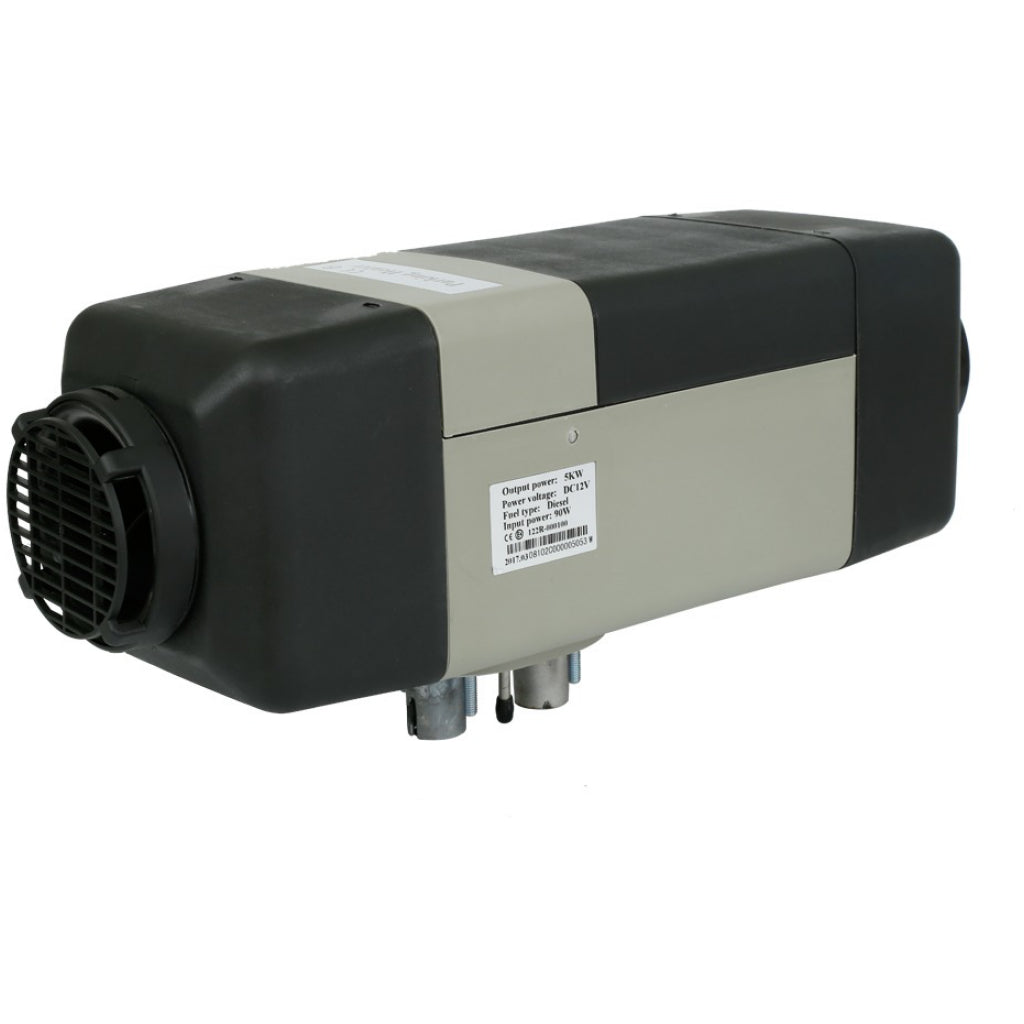

General Components Bison 5000 5kW/17000BTU compact no-idle forced air furnace designed for cab/bunk heating applications in commercial vehicles, boats and RV’s.

5kW/17000BTU air heater kit, 12V or 24V models, diesel/kerosene, with digital programmable 7-day timer. This kit includes all the necessary hardware for basic installation.

• Heat Output: BTU/hr (kW/hr) 8189(2.4) – 17061(5)
• Diesel Fuel Consumption: U.S Gal./hr (L/hr) 0.07(0.27) – 0.16(0.62)
• Electric Power Consumption: Amps (Watts) 12VDC 1.25 (15 ) – 7.92 (95)
• Electric Power Consumption: Amps (Watts) 24VDC 0.63 (15 ) – 3.96 (95)
• Voltage Operating Range: Volts DC (for 12V models) 10.5 – 16 with Low and High Voltage Protecton
• Voltage Operating Range: Volts DC (for 24V models) 21 – 32 with Low and High Voltage Protecton
• Operating Modes: Automatic Regulation – Adjustable 41°F to 95°F (5°C to 35°C) Constant Heat Output Selection Air Circulation / Ventilation
• Dimensions: LxWxH, Inches (mm) 16.73 x 5.83 x 6.38 (425 x 148 x 162)
• Weight: lbs (kg) 13 (5.9)
