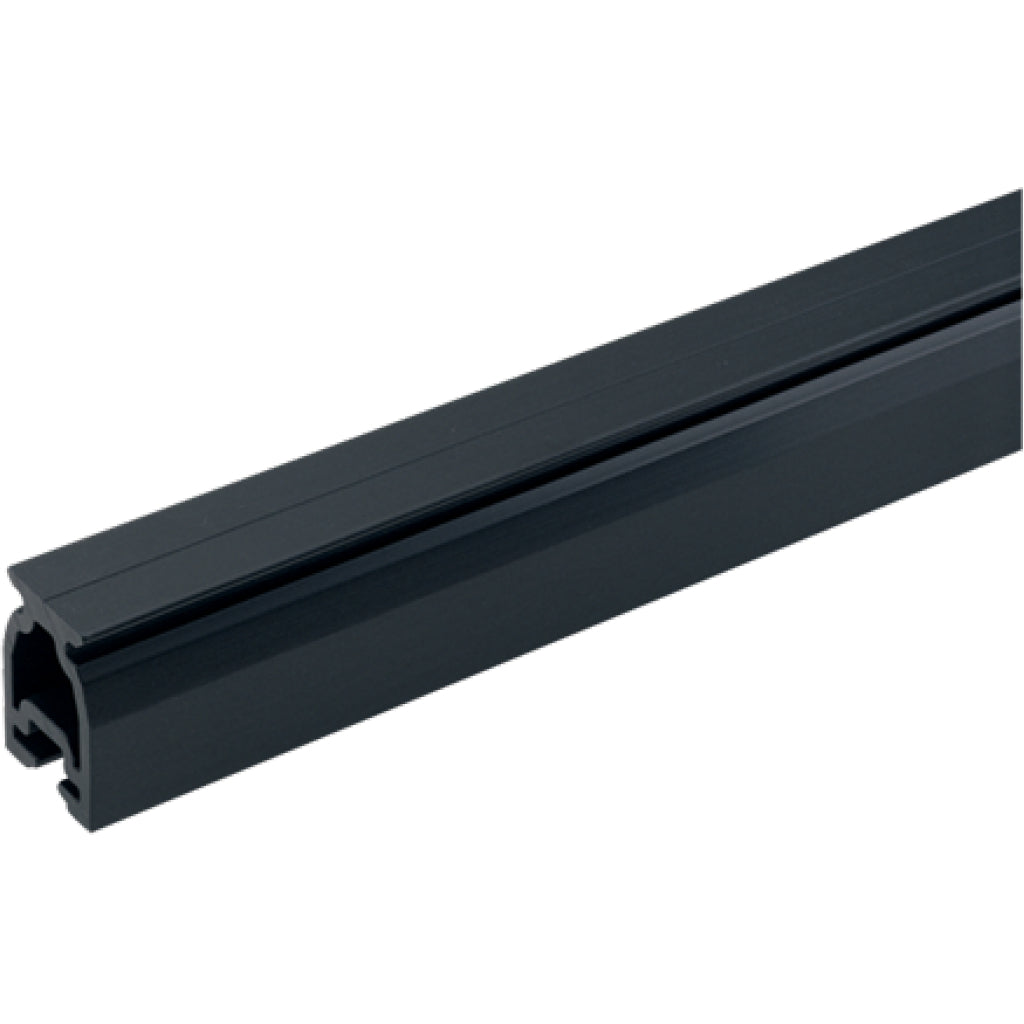

High-Beam Track

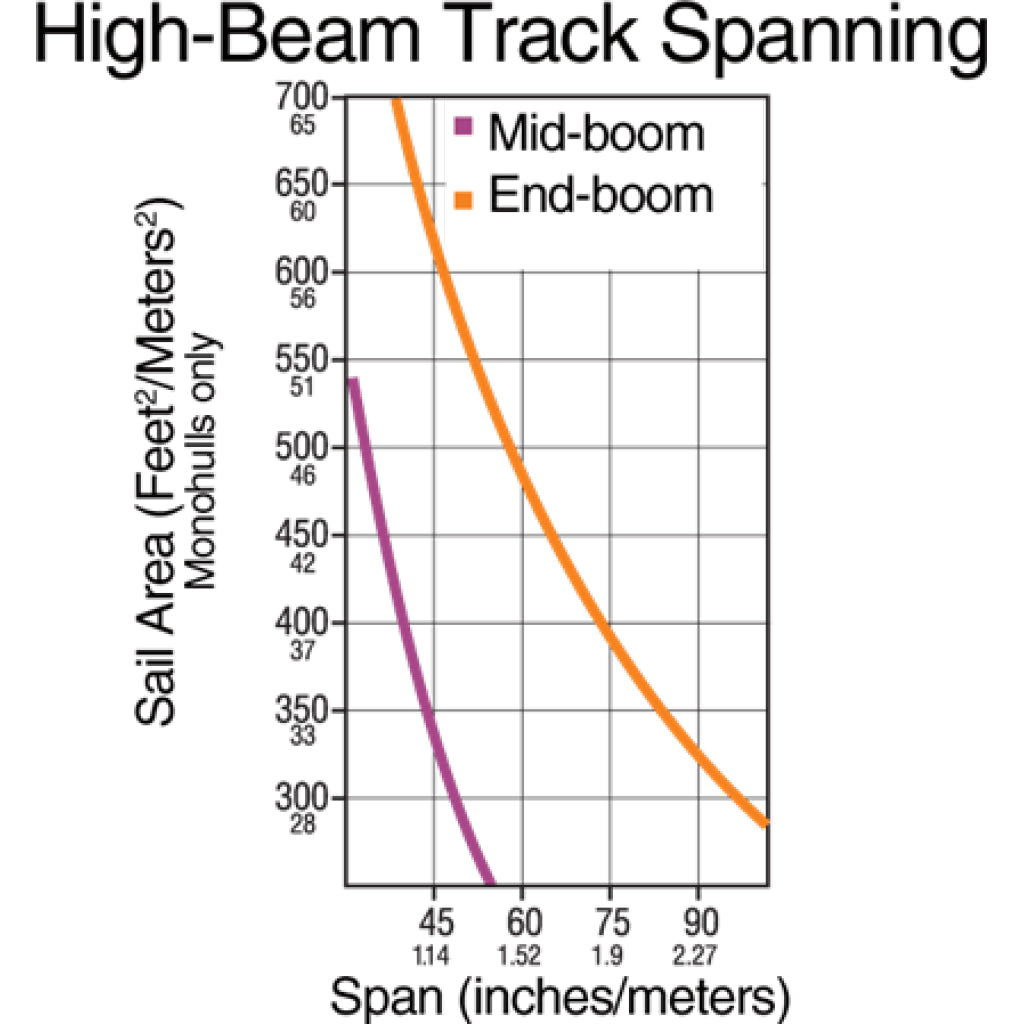

High-Beam Track Spanning

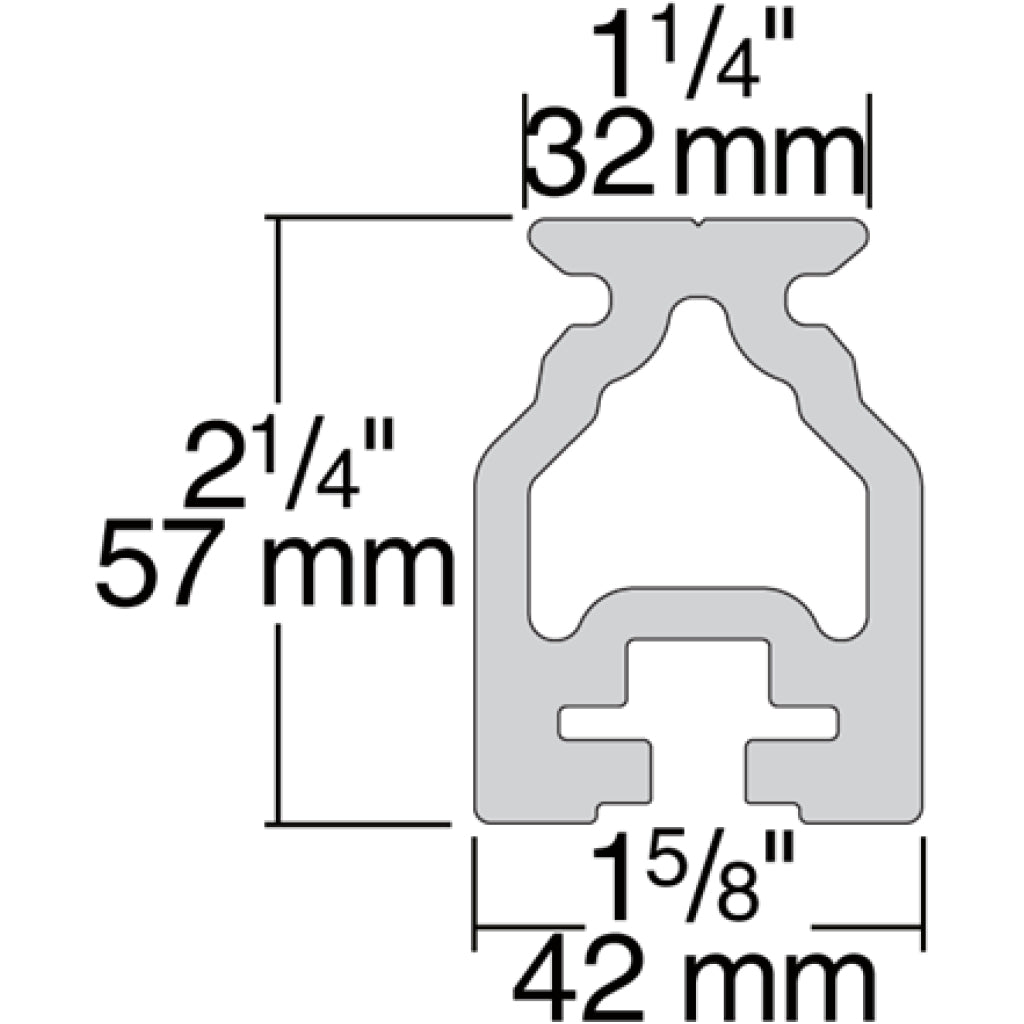

High-Beam Track Cross section diagram
High-Beam Track
High-Beam Track Spanning
High-Beam Track Cross section diagram
RUNNING RIGGING

Harken 32 mm High-Beam Track - 1.8 m

SKU# R32HB.1.8M
$36599
Check Delivery Time

Harken 32 mm High-Beam Track - 1.8 m may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

✕
//riggingshoppe.com/cdn/shop/files/happy-child-on-sailboat_e18ec5af-8b2e-4722-ae68-af51a4129615_500x500.jpg?v=1667832716

Check Delivery Time


Track is extruded from high-grade 6061-T6 aluminum and hardcoat-anodized for a hard, long-lasting surface.

High-beam variable hole spacing track is used to span cockpits or other unsupported areas. Track features internal slide bolts, allowing new track to be installed without drilling additional holes.

Specifications

  • Length (m): 1.8 m
  • Length (ft in): 5' 10 7/8" ft in
  • Weight (oz): 201 oz
  • Weight (kg): 5.69 kg
  • Fasteners (mm): 8 HH mm
  • Fasteners (in): 5/16 HH in
  • Mounting hole spacing (mm): Slide bolt mm
  • Mounting hole spacing (in): Slide bolt in
  • Endstop: 562
  • Trim cap: 3158

Item# R32HB.1.8M
