57mm Carbo Trpl/150 w/Cam Harken

$367.99
SKU: 2630

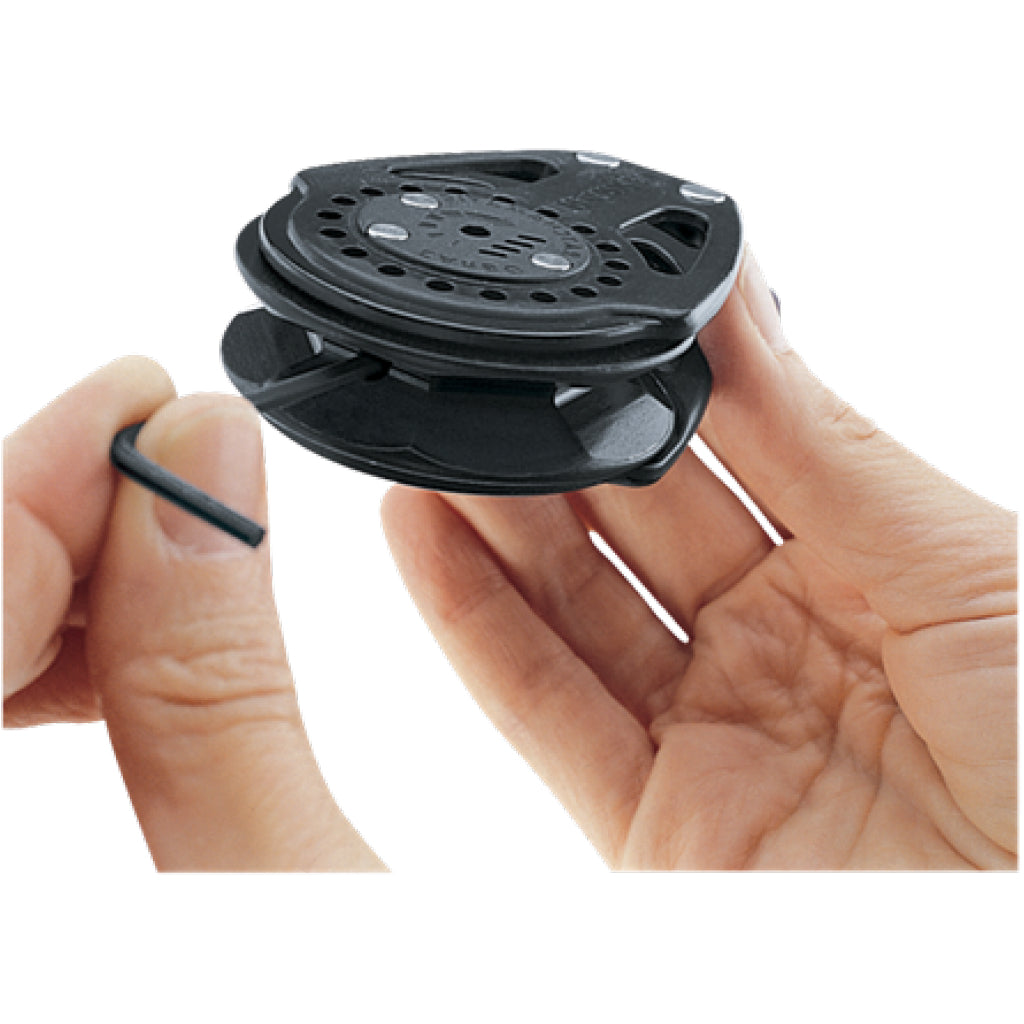

The Carbo Ratchamatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase.

Shifting between ratchet and light-air modes is seamless.

Specifications

  • Footnote: Maximum working loads and breaking loads for blocks based on cam strengths.
  • Sheave Ø (mm): 57 mm
  • Sheave Ø (in): 2 1/4 in
  • Length (mm): 125 mm
  • Length (in): 4 15/16 in
  • Weight (g): 431 g
  • Weight (oz): 15.2 oz
  • Shackle pin Ø (mm): 6 mm
  • Shackle pin Ø (in): 1/4 in
  • Maximum line Ø (mm): 10 mm
  • Maximum line Ø (in): 3/8 in
  • Maximum working load (kg): 816 kg
  • Maximum working load (lb): 1800 lb
  • Breaking load (kg): 2041 kg
  • Breaking load (lb): 4500 lb
  • Holding power: 10:1
