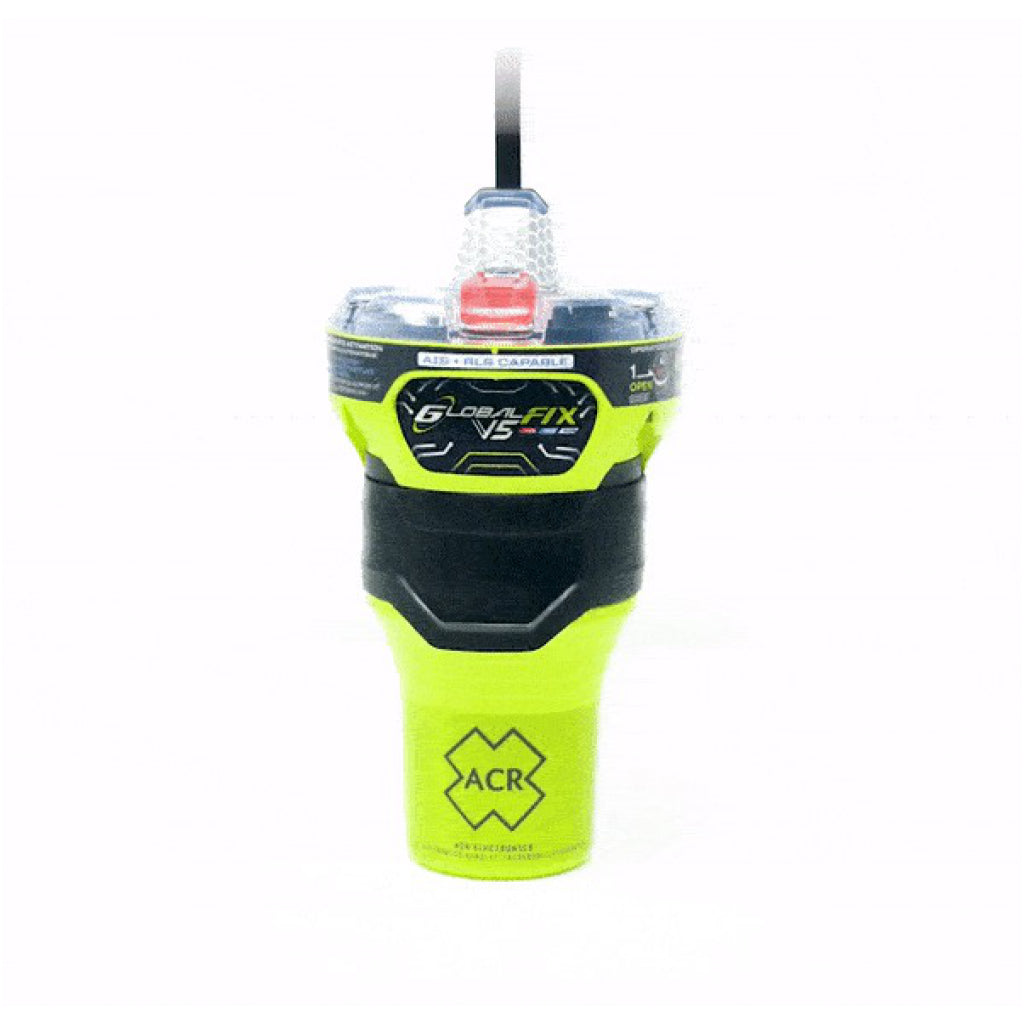

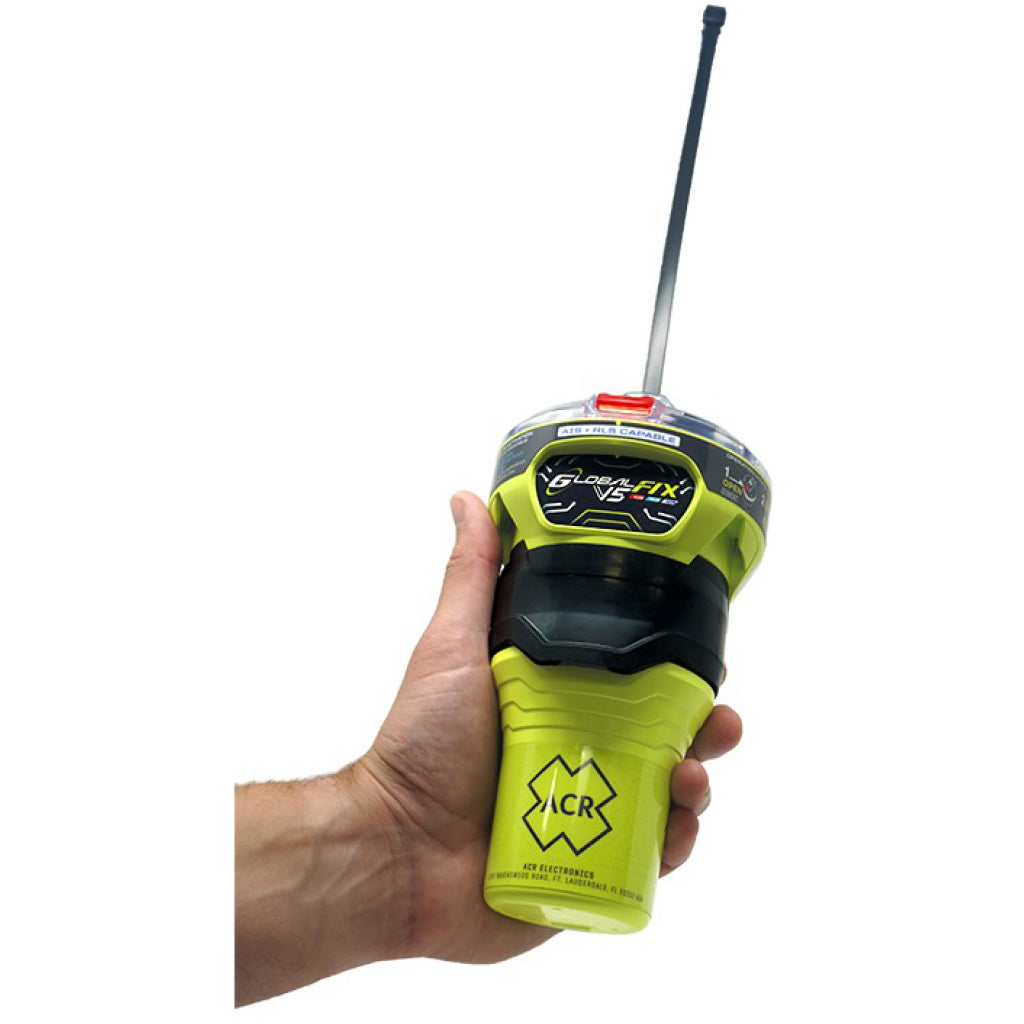

ACR GlobalFix V5 AIS EPIRB: Advanced Technology for Swift Rescues

The ACR GlobalFix V5 AIS EPIRB is a cutting-edge emergency beacon designed to speed up rescue response time. Featuring 406 MHz satellite connectivity and Automatic Identification System (AIS), this EPIRB ensures swift and accurate distress signal transmission to the global Cospas Sarsat satellite rescue system and immediate visibility to AIS equipped vessels nearby.

Reliability of ACR EPIRB and Quick Rescue Response

Equipped with GNSS (GPS, Galileo, Glonass) positioning networks, the GlobalFix V5 EPIRB provides precise location information for faster rescue. When activated, both the 406 MHz distress transmission and the AIS signal are relayed, alerting the worldwide Cospas Sarsat search and rescue satellite network, and nearby AIS-outfitted vessels respectively. The AIS target display further enables local responders and nearby vessels to navigate directly to the EPIRB, significantly speeding up recovery times.

Unmatched Smartphone Connectivity & Return Link Service (RLS)

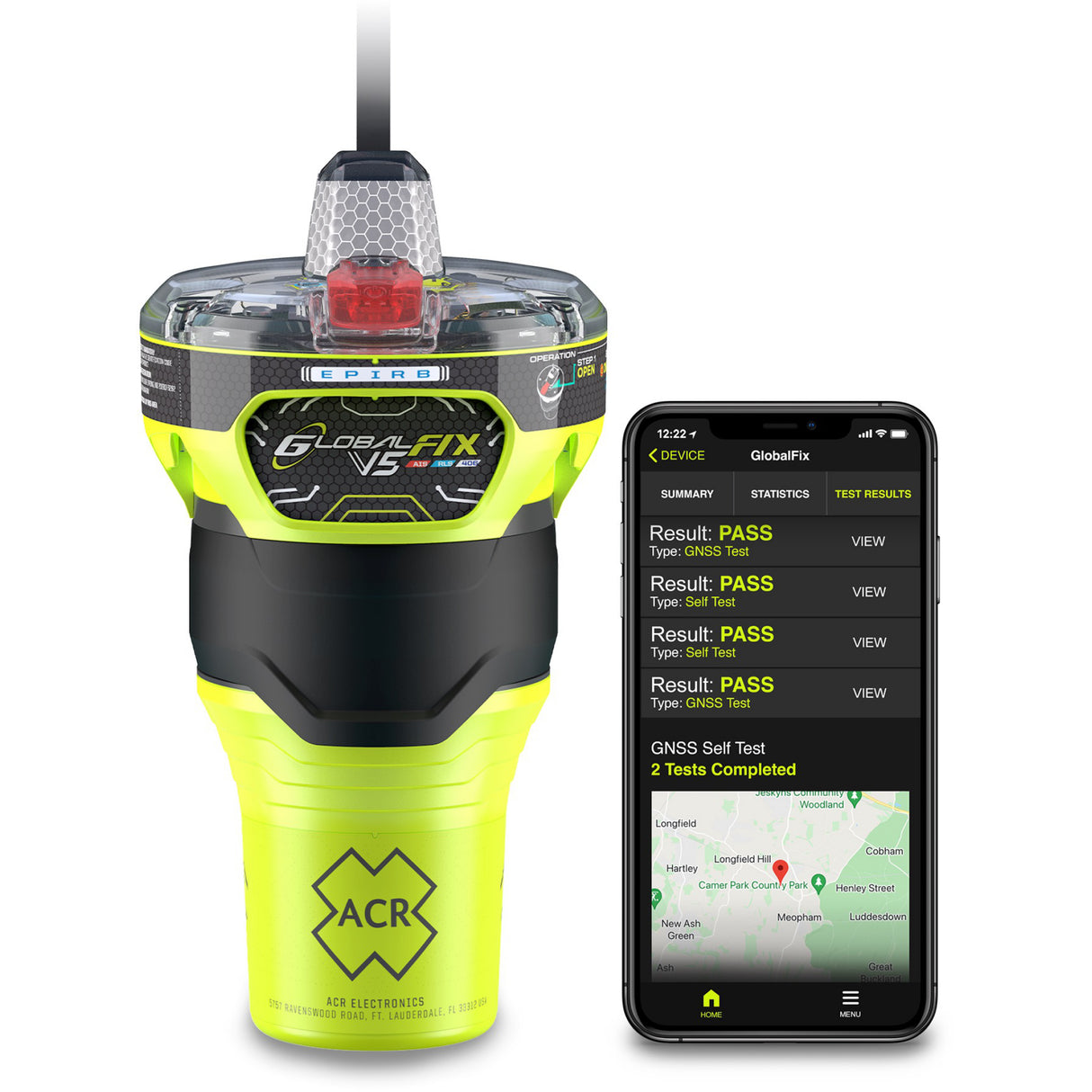

With Near Field Communication (NFC) technology, users can access EPIRB diagnostics using their smartphones, providing crucial beacon status information at their fingertips. The unique Return Link Service (RLS) confirms the successful delivery of the distress message, indicated by a flashing blue light, adding a reassuring layer of safety in emergency situations.

The ACR GlobalFix V5 AIS EPIRB: Ideal for All Mariners

From coastal cruising to ocean crossing, the advanced features of the GlobalFix V5 EPIRB deliver unparalleled safety and convenience. Experience enhanced peace of mind with the innovative ACR GlobalFix V5 AIS EPIRB, designed to make rescues faster and safer than ever before.

Specifications

• Output Power: (406/121.5)406.040 MHz, 5W (nominal) / 121.5 MHz, 50mW (nominal)
• AIS: Yes, AIS Alerts for Local Rescue
• Return Link Service: Yes, Enabled RLS confirmation direct to beacon
• NFC / Mobile App: Yes, Near Field Communication (NFC) and Mobile App Included
• Strobe: White & Infrared Dual Technology
• Size (antenna up) – Beacon Only: 18.5” x 4.3” x 4.36” (470 mm x 109 mm x 111 mm)
• Weight – Beacon Only: 1.78 lbs (810 G)
• Battery: Lithium battery, Li/FeS2
• Battery Replacement: 10-year replaceable battery (replace 10 years after the date of manufacture or after activation)
• Temperature Range (Class 2): Storage: -22°F to +158°F (-30°C to +70°C). Operating: -4°F to +131°F (-20°C to +55°C)
• GPS: 72 Channel Multi-constellation receiver (GPS, Galileo, & Glonass GNSS)
• Activation: Out of bracket and wet, or manually in or out of the bracket
• Waterproof: 33 ft (10 m) for 5 min.
• Buoyant: Yes
• Operational Life: 48 hours minimum @ -4°F (-20°C)
• Deployment: Category I – Hydrostatic Release (auto deploy) or Category II – Manual Release (manual deploy)
• Warranty: 5 years
• Accessories: EPIRB Mounting Hardware (Included – P/N 9657). Cat I Bracket (P/N 9660) (Included in P/N 2851). Cat II Bracket (P/N 9656) (Included in P/N 2852). HRU (P/N 9490.1) (Included in in P/N 2851)
