Keep your music going longer and enjoy high-quality sound with our marine amplifiers, designed with minimal distortion and noise for optimal audio. The Easy Tune feature automatically regulates audio settings, while LED indicators let you identify electrical issues at a glance. Install the amplifiers with ease using the included mounting brackets, and connect up to two speakers per channel for greater setup options.

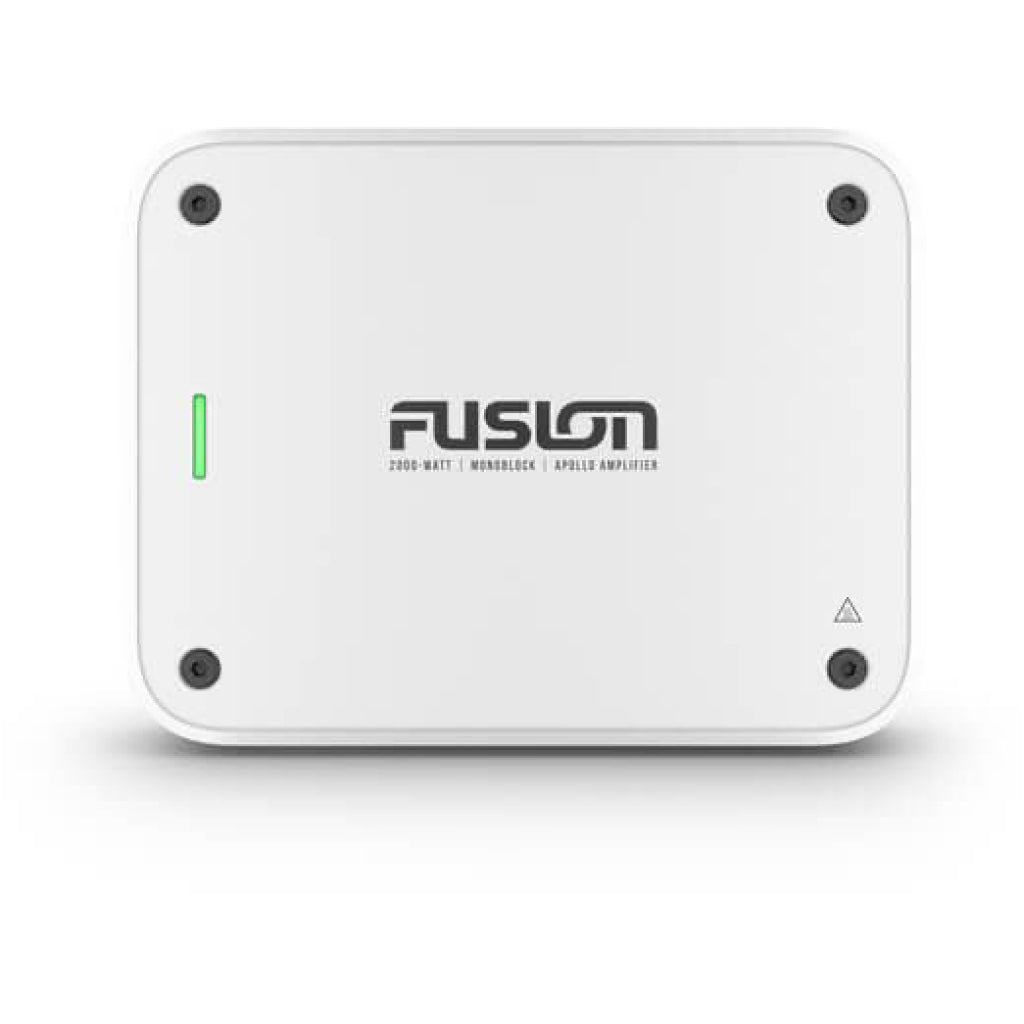

With an ignition protection design, you don't have to worry about potential overheating damage. Plus, the circuit board is specially coated for extra protection from marine elements. The amplifiers are built to last, tested to withstand salt fog, temperature, vibration, and UV. Add extra power to your system with the 2000-watt (650-watt RMS) monoblock amplifier designed to power a subwoofer.
| Physical dimensions without bracket (LxWxH) | 9.25" x 7.06" x 1.75" (235 x 180 x 45 mm) |
| Physical dimensions with bracket (LxWxH) | 9.25" x 7.06" x 2.13" (235 x 180 x 50 mm) |
| Weight | 4.85 lb (2.2 kg) |
| Water Rating | IPX2 |
| Amplifier class | Class-D |
| CEA-2006 power rating | 650 watt RMS x 1 14.4 V input - 4 ohm < 1% THD |
| Total rated power output - 2 ohm (watts) | 1100 watt RMS x 1 14.4 V input - 2 ohm < 1% THD |
| Total rated power output - 4 ohm Bridged (watts) | NA |
| Peak power (watts) | 2000 watts |
| Input sensitivity | 2 V RMS |
| Input impedance | 22k ohm |
| Operating voltage | 10.8 V - 16 V DC |
| Current consumption (StandBy) | < 5 mA 14.4 V input |
| Current consumption (Idle) | < 0.89 A 14.4 V input |
| Current consumption (Max) | 87 A |
| Fuse rating | 125 A electronic fuse (no replacement necessary) |
| Ignition Safety Protected (SAE J1171) | Yes |
| Protection circuits | Reverse voltage Input under/over voltage Over temperature Output short circuit |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
