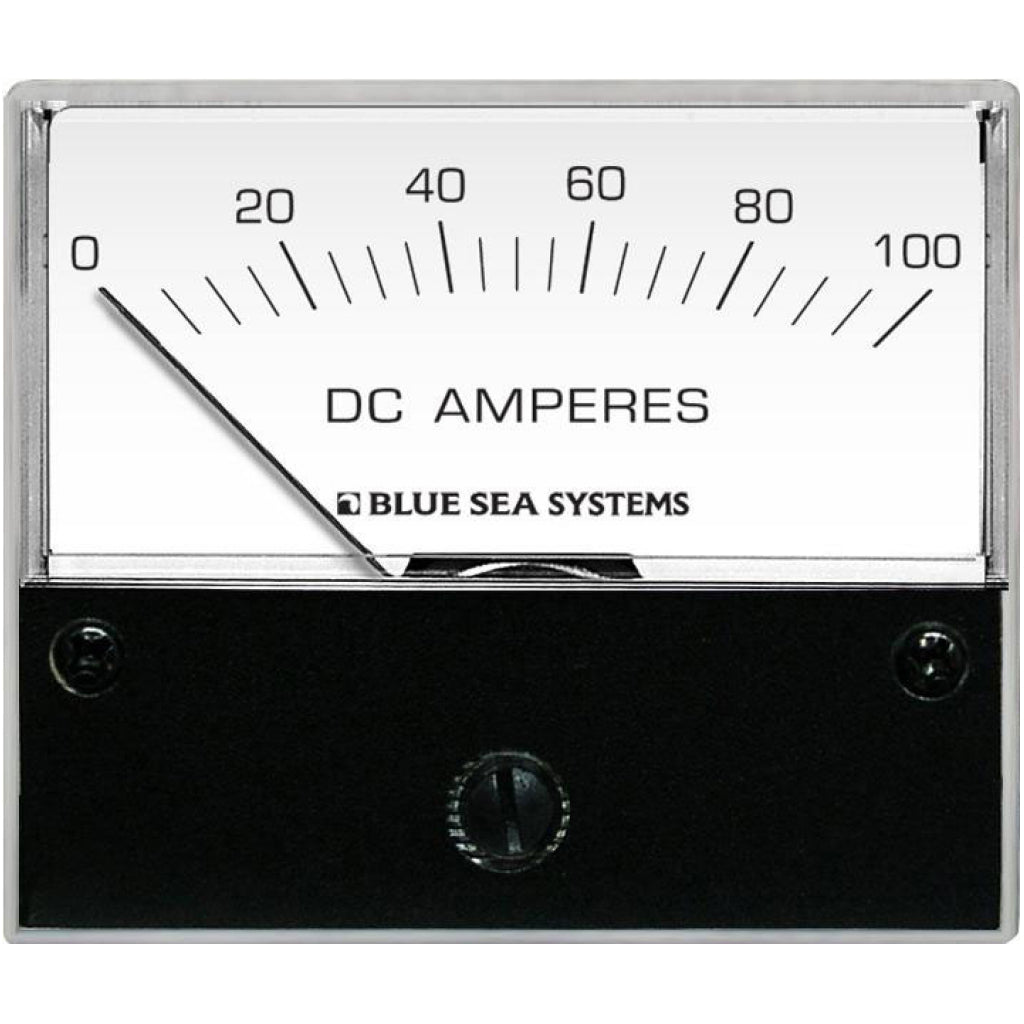

Blue Sea 0-100A DC Analog Ammeter

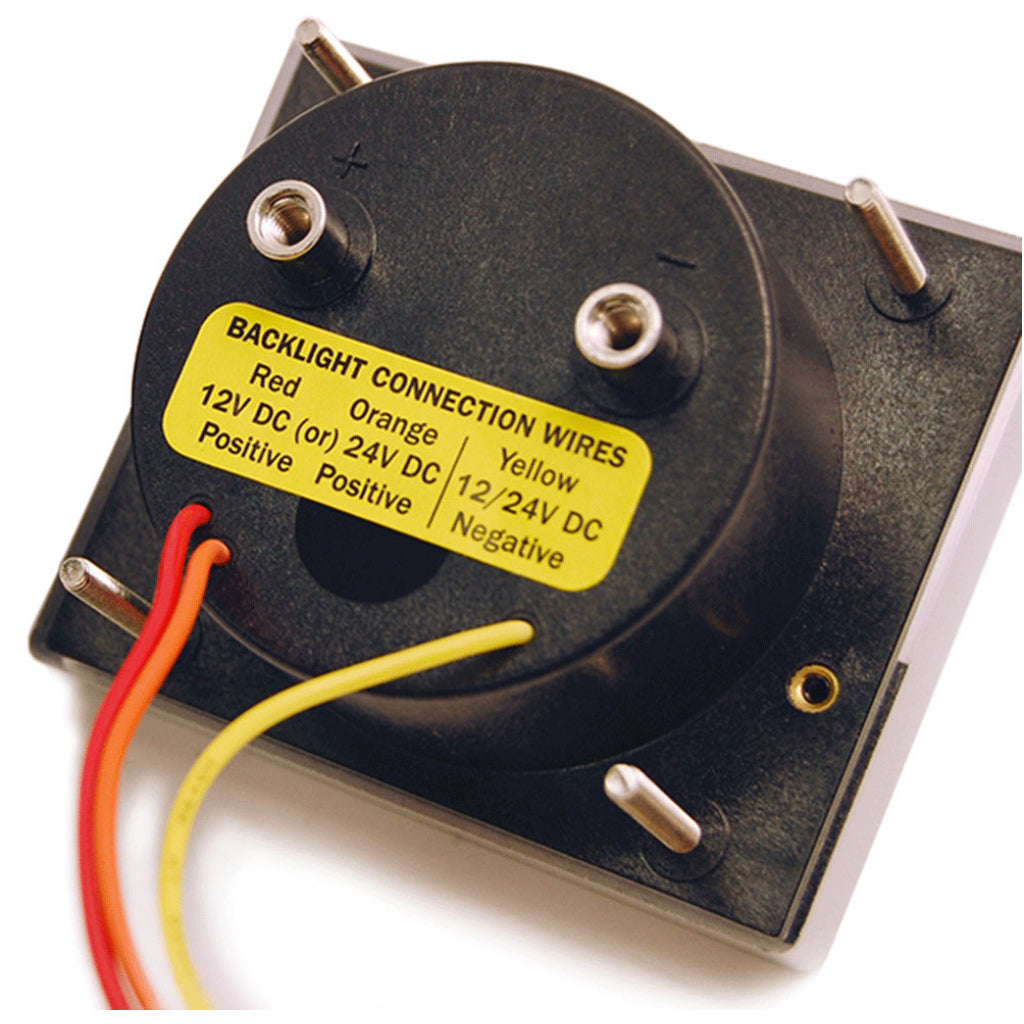

Blue Sea 0-100A DC Analog Ammeter Reverse
Blue Sea 0-100A DC Analog Ammeter
Blue Sea 0-100A DC Analog Ammeter Reverse
ELECTRICAL

Blue Sea 0-100A DC Analog Ammeter

SKU# BS8017
$13499

Blue Sea 0-100A DC Analog Ammeter may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

✕
//riggingshoppe.com/cdn/shop/files/happy-child-on-sailboat_e18ec5af-8b2e-4722-ae68-af51a4129615_500x500.jpg?v=1667832716

Check Delivery Time


Item# 8017

Features:

  • Simple 4-wire connection from shunt
  • Meter senses and powers from shunt connection
  • Includes DC shunt
  • Backlit meter face (separate 12 or 24V DC backlight connections)

Specifications:

  • Meter:Current
  • Face Size:2.75in (69.85 mm)
  • Function:0 to 100A
  • Backlighting Amperage:16mA 12V DC
  • 20mA 24V DC
  • Meter Current:1mA at full scale
  • Shunt Type:External 50mVfull scale
  • Weight:0.60lb (0.27 kg)
