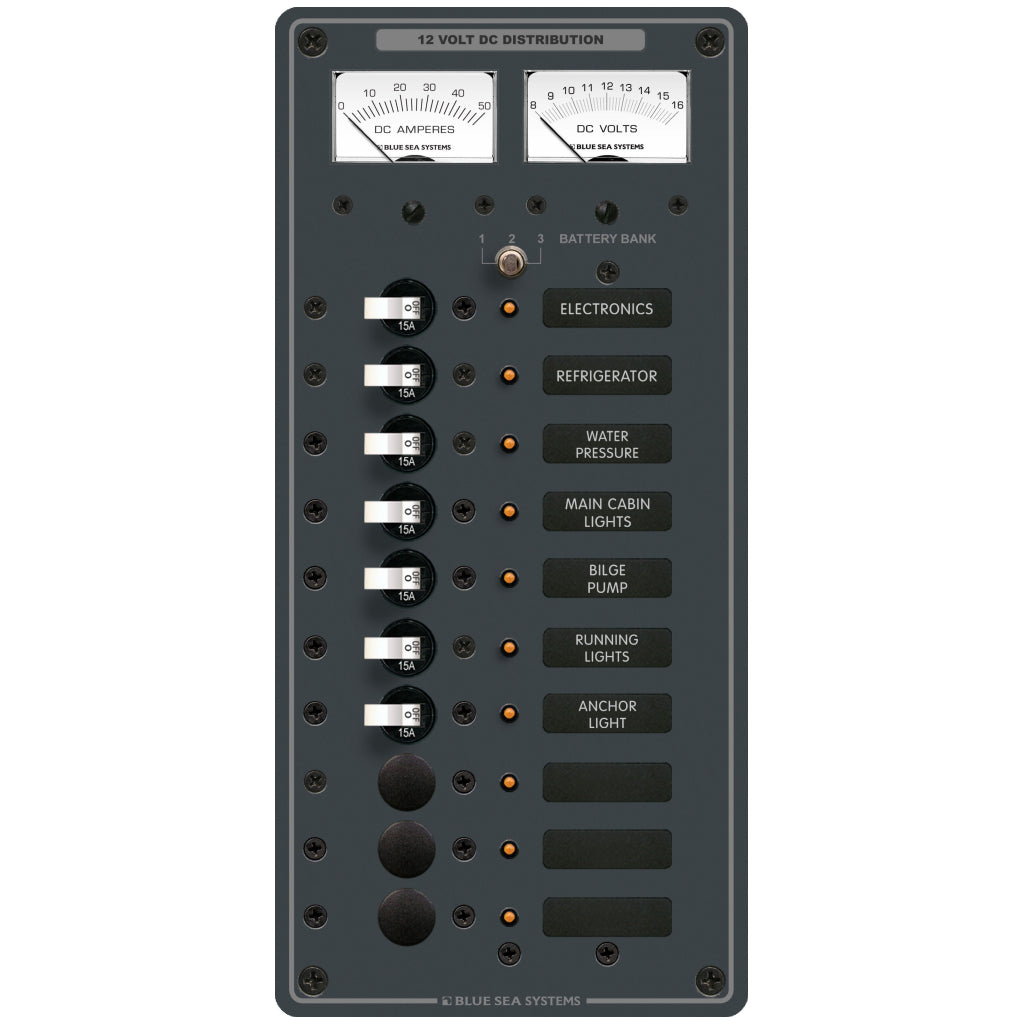

Item# 8082
Features:
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
Specifications:
- Positions: 10
- Nominal Voltage: 12V DC
- Maximum Amperage: 50A
- Height:11.25in (285.75 mm)
- Width:5.25in (133.35 mm)
- Depth:2.50in (63.5 mm)
- Weight:3.35lb (1.52 kg)
