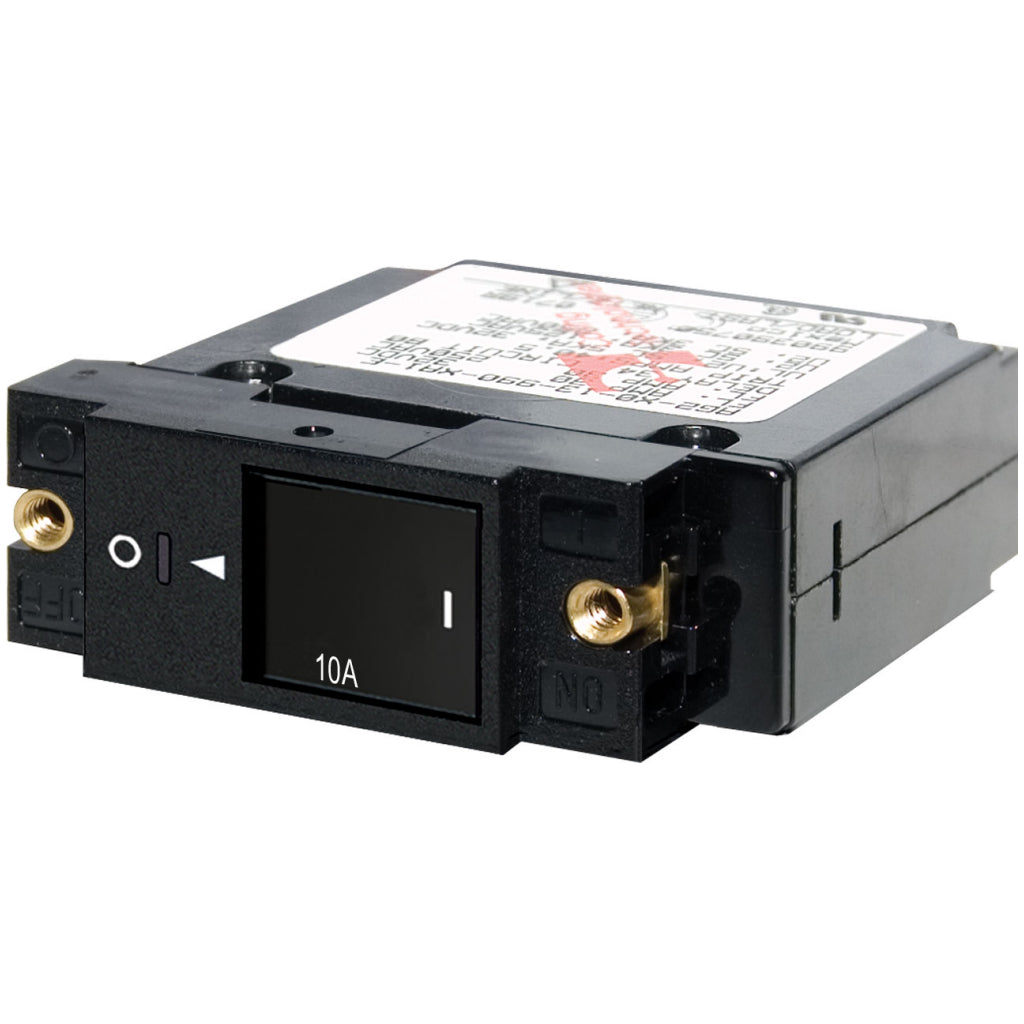

Blue Sea 10A A-Series Circuit Breaker

SKU# BS7427
Check Delivery Time

Blue Sea 10A A-Series Circuit Breaker may require an additional to 2 days to ship.


Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

Item# 7427


  • Rocker actuator is flush in the “ON” position, eliminating the risk of accidential switching
  • Color actuator indicates “OFF” position
  • “Trip Free” design cannot be held “ON” during fault current condition
  • 2 different actuator styles available
  • Prevents accidental switching of 24 hour circuits
  • International ON/OFF symbols support vertical or horizontal mounting


Amperage: 10A AC 10A DC Actuator Style: Restricted Off Poles: 1 Maximum Voltage: 240V AC 32V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 3000A 125V AC 1500A 240V AC 5000A 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: 6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Screw Terminal Torque: 14 in-lb (1.58 Nm) Switching Cycles: 10000 Terminal Screws: 10-32 Stainless Steel Weight: 0.18lb (0.08 kg)
