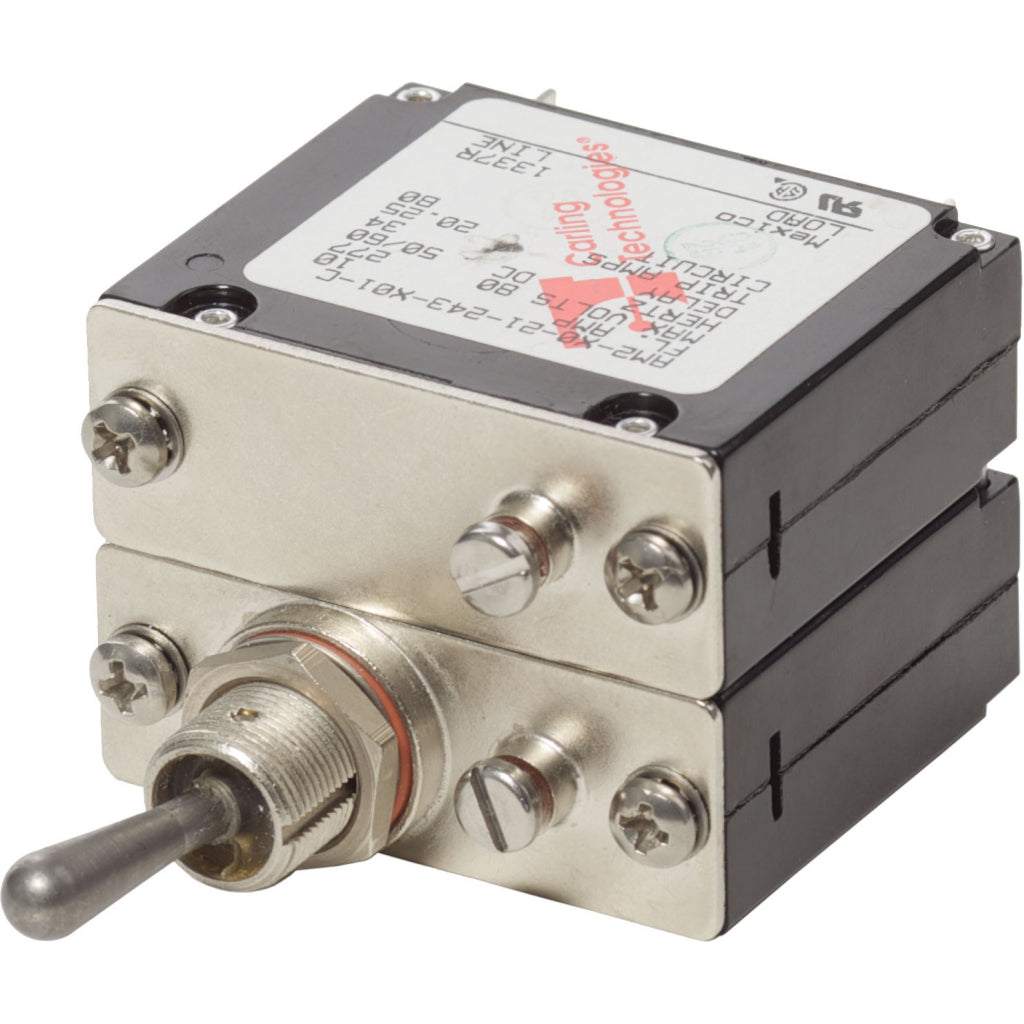

Item# 7311
May be suitable for use when military specifications are required under CFR 46.
Specifications:- Amperage:10A
- Actuator Style: Metal Toggle
- Poles:2
- Maximum Voltage:277V AC
- 65V DC
- Circuit Breaker Type: Magnetic Hydraulic—Trip free
- Interrupt Capacity: 1500A AC
- 7500A DC
- Minimum Operating Temperature:-40° C
- Maximum Operating Temperature:85° C
- Mounting Boss:1/2-32 Hex Nut SS
- Mounting Nut Torque:30in-lb (3.39 Nm)
- Mounting Screw:6-32 SS
- Mounting Screw Torque:7 in-lb (0.79 Nm)
- Screw Terminal Torque:14 in-lb (1.58 Nm)
- Switching Cycles:6000 Electrical
- 4000 Mechanical
- Terminal Screws:10-32 SS
- Weight:0.13lb (0.06 kg)
