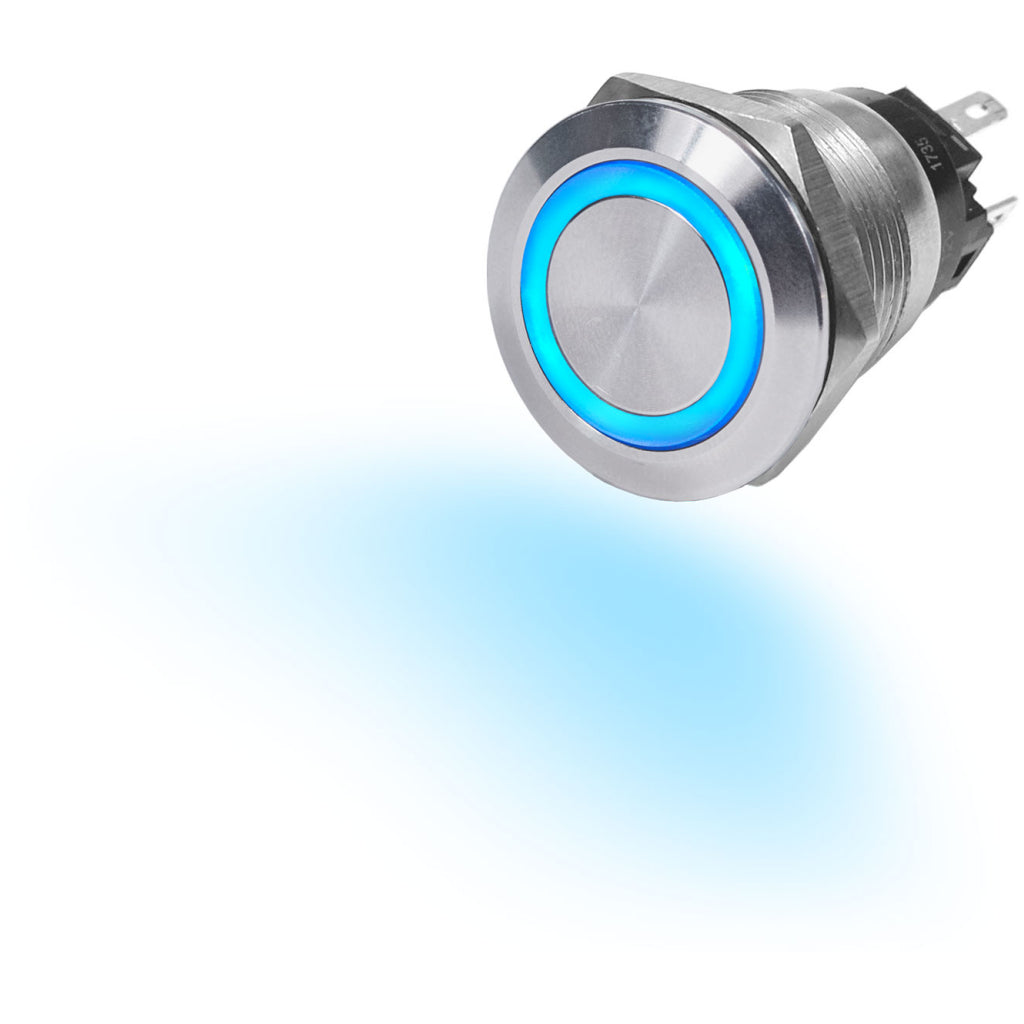

Blue Sea, Blue LED On-Off Push Button Ring Switch

$30.99
Item Number: BS4160

Features:

  • 10A continuous
  • Single Pole Double Throw or Single Pole Single Throw
  • Can be wired for normally open or normally closed
  • Available in Blue & Red
  • Available in momentary and non-momentary
  • Installs with .110inch quick connects (included in retail package)

Specifications:

  • Action: OFF-ON
  • Amperage:10A 12V DC Resistive
  • 3A 12V Inductive
  • Nominal Voltage:12V DC
  • Maximum LED Operating Current:20mA
  • Minimum Operating Temperature:-10° C
  • Maximum Operating Temperature: 70° C
  • Minimum Storage Temperature:-55° C
  • Maximum Storage Temperature:85° C
  • Illumination:Independent – Separate contacts for LED power
  • Max Panel Thickness:0.31in (7.87 mm)
  • Mounting Hole:¾” (19mm)
  • Switching Cycles:40,000
  • Termination:5 – 0.110inch Quick Connect terminals
  • Weight:0.20lb (0.09 kg)
