Item# 5113

A fuses' ability to react to a detected in high amperage circuits is critical to their preservation. To effectively protect battery banks, inverters, and other high amperage circuits, fuses must trip instantly to save components connected to the circuit.

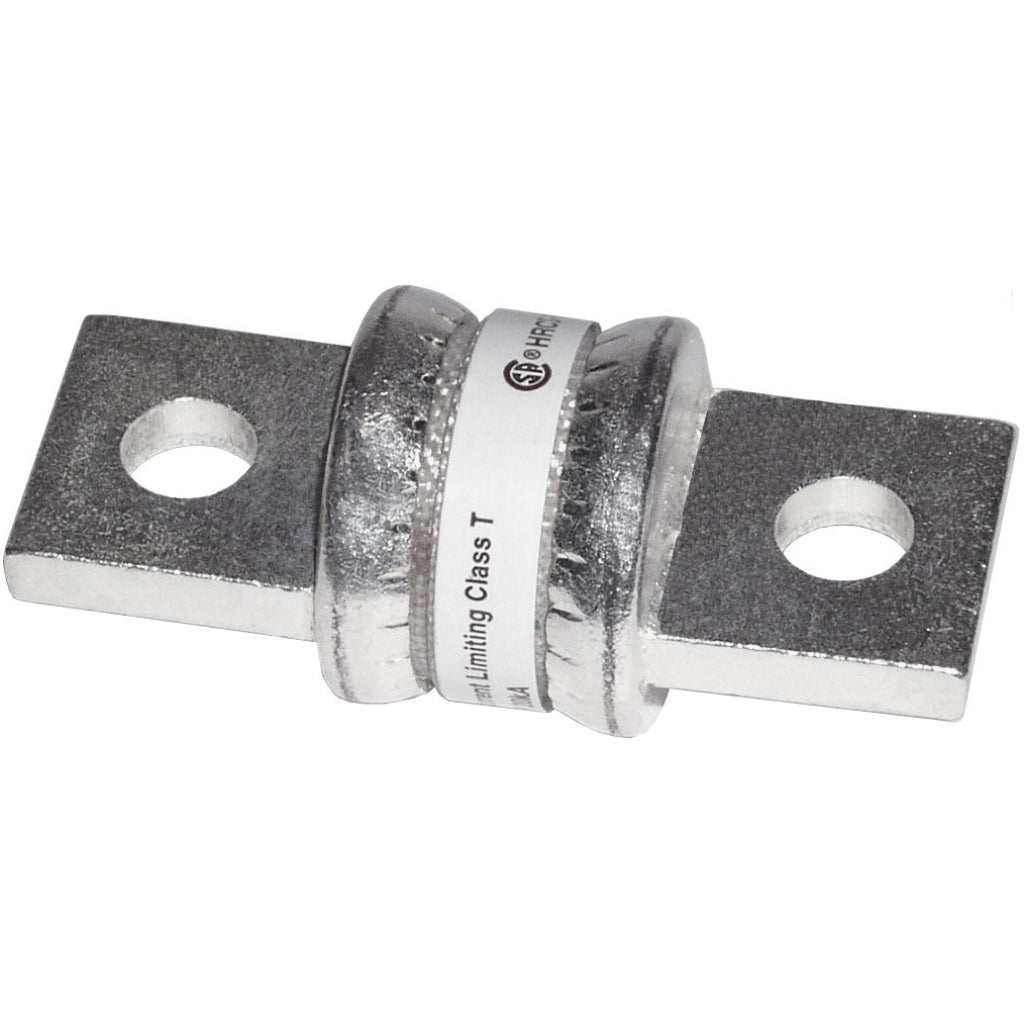

Blue Sea Systems designed these Class-T fuses to have an extremely fast reaction to detected faults and offer the best possible protection. Class-T fuses and fuse blocks are compact and easy to install in tight spaces.

Features:

• Extremely fast short-circuit response
• 20,000 Ampere Interrupt Capacity (AIC)

Specifications:

• Amperage:125A
• Maximum Voltage:125V DC
• Interrupt Capacity: 20000A 125V DC
• Stud Torque:3/8" in-lb (0.34 Nm)
• Weight:0.30lb (0.14 kg)
