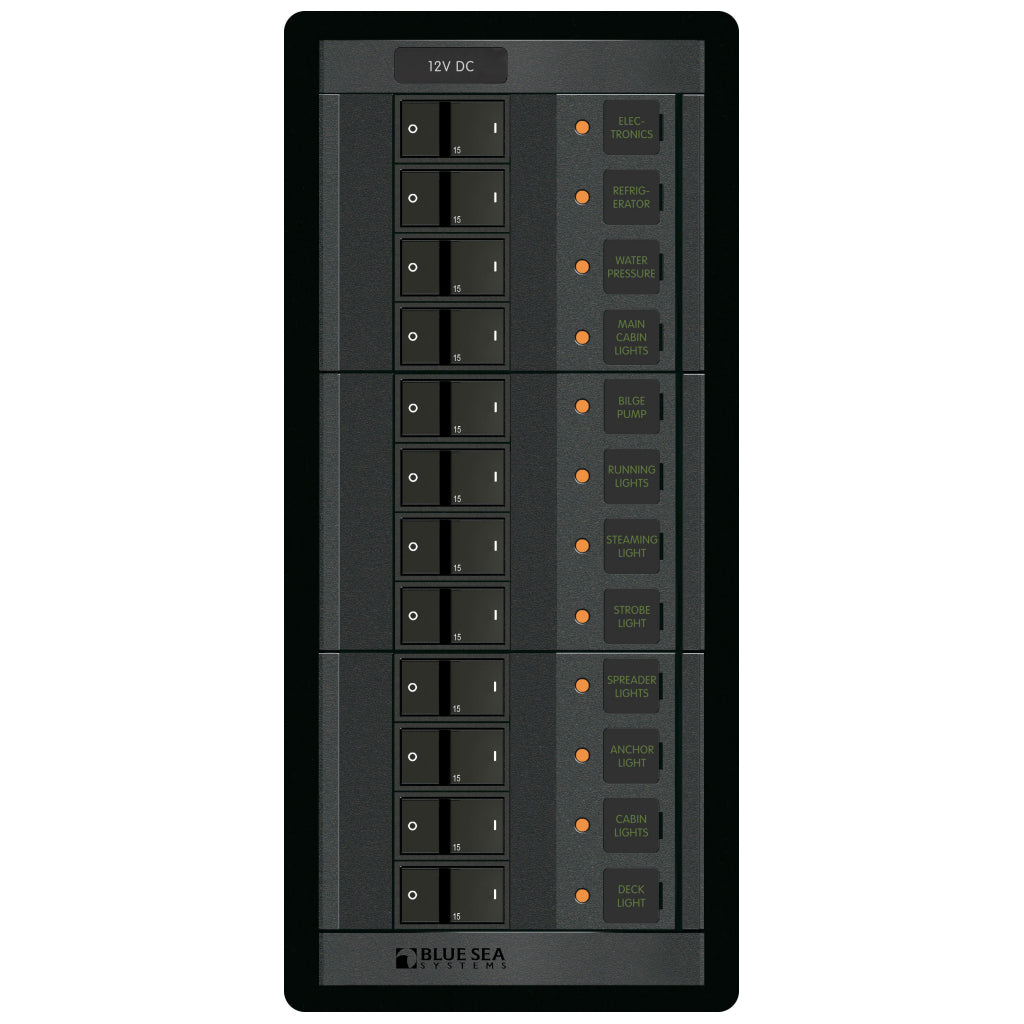

Blue Sea 12V 12 Pos. DC Panel

Item# 1223

Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers
• Available with voltmeters, ammeters, and digital multimeters
• Includes 4205—Square Format Label Set

Specifications:

• Positions:12
• Nominal Voltage:12V DC
• Maximum Amperage: 100A
• Height:10.75in (273.05 mm)
• Width:4.88in (123.95 mm)
• Depth:3.00in (76.2 mm)
• Weight:4.85lb (2.2 kg)
