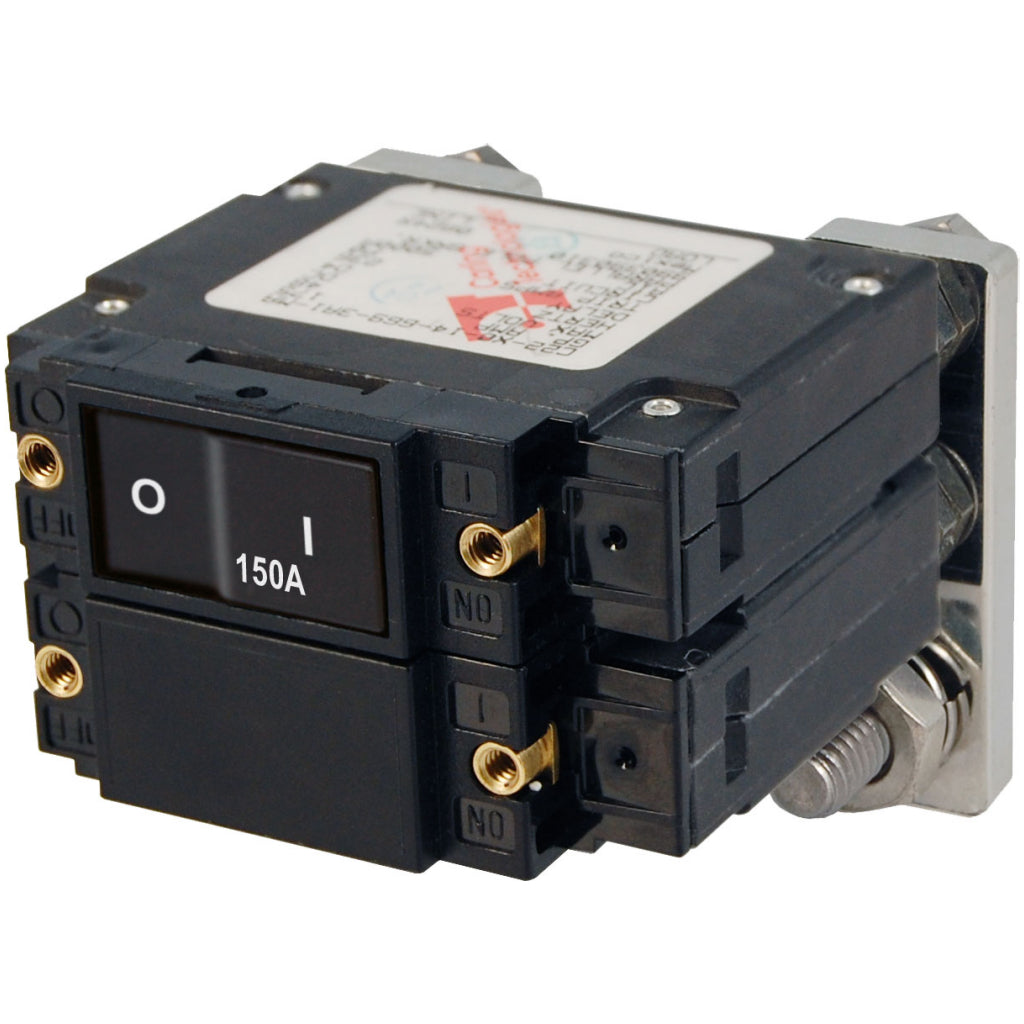

Item# 7475

Features:

• Paralleled poles have 5/16" stud on bus
• Rocker actuator is flush in the “ON” position, eliminating the risk of accidental switching
• Color actuator indicates “OFF” position
• Provides overcurrent protection for inverters, bow thrusters, and windlasses
• Combines switching and circuit protection into a single device
• “Trip Free”—cannot be held closed after trip

Specifications:

• Amperage:150A DC
• Actuator Style: Flat Rocker
• Poles:2
• Maximum Voltage:120V AC
• 240V AC
• 48V DC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Terminal Stud Torque:35 in-lb (3.95 Nm)
• Interrupt Capacity: 5000A 48V DC
• Minimum Operating Temperature:-40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw:6-32 Stainless Steel
• Mounting Screw Torque:6 in-lb (0.68 Nm)
• Switching Cycles:10000
• Terminal Stud:1/4-20 Tin-Plated Brass
• Weight:0.64lb (0.29 kg)
