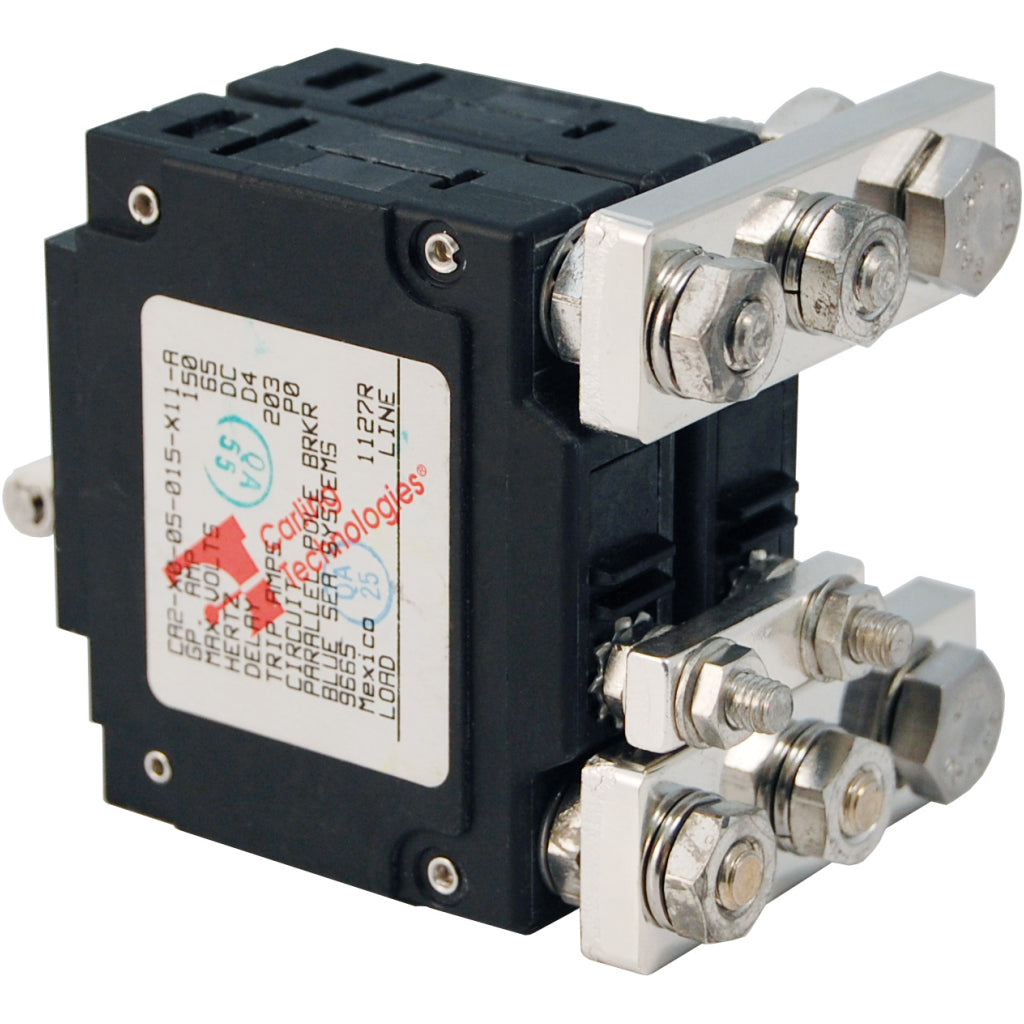

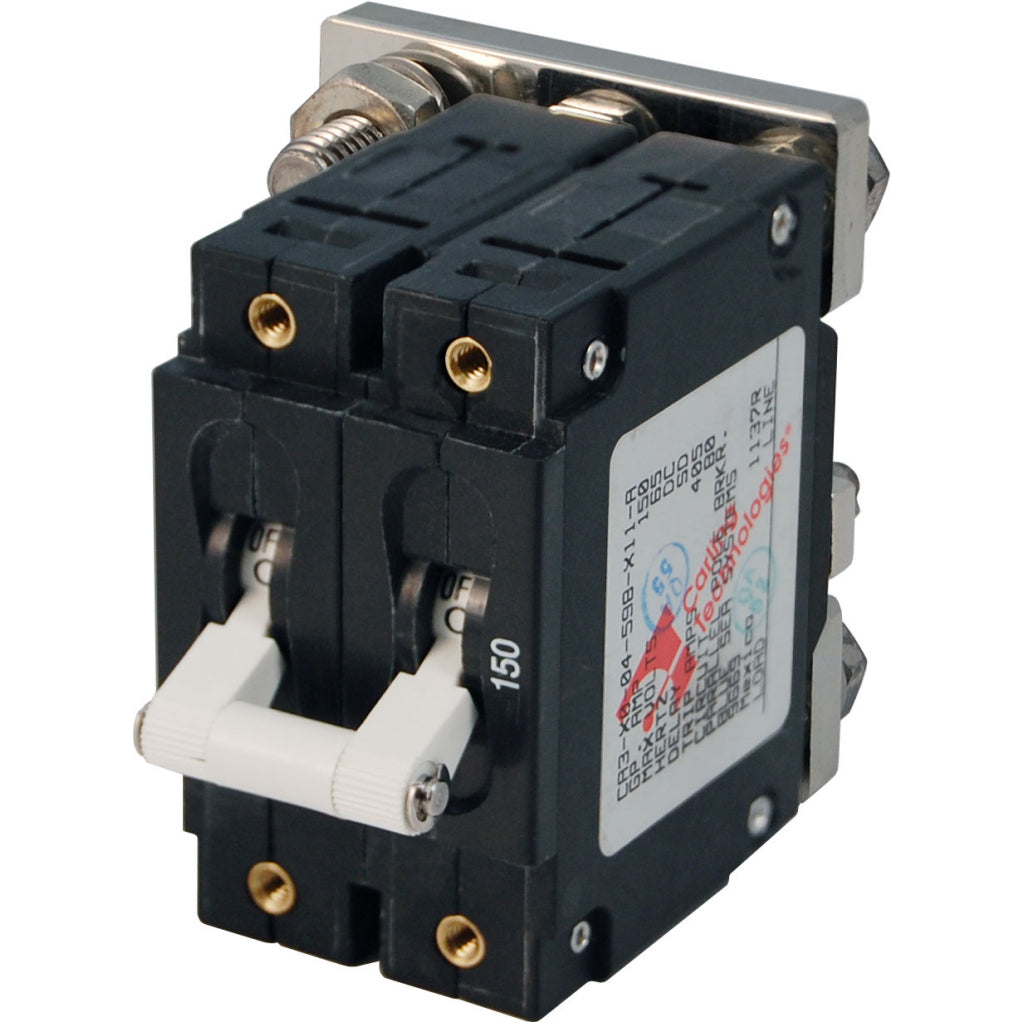

Blue Sea 150A C-Series Toggle Circuit Breaker

$153.99
Item Number: BS7267

Features:

  • Paralleled poles have 5/16" stud on bus
  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Combines switching and circuit protection into a single device
  • "Trip Free" - cannot be held closed after trip

Specifications:

  • Amperage:150A DC
  • Color:White
  • Actuator Style:Toggle
  • Poles:2
  • Maximum Voltage:120V AC
  • 240V AC
  • 65V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Terminal Stud Torque:35 in-lb (3.95 Nm)
  • Interrupt Capacity:5000A 65V DC
  • Minimum Operating Temperature:-40° C
  • Maximum Operating Temperature:85° C
  • Mounting Screw:6-32 Stainless Steel
  • Mounting Screw Torque:6 in-lb (0.68 Nm)
  • Switching Cycles:10000
  • Terminal Stud:1/4-20 Tin-Plated Brass
  • Weight:0.64lb (0.29 kg)
