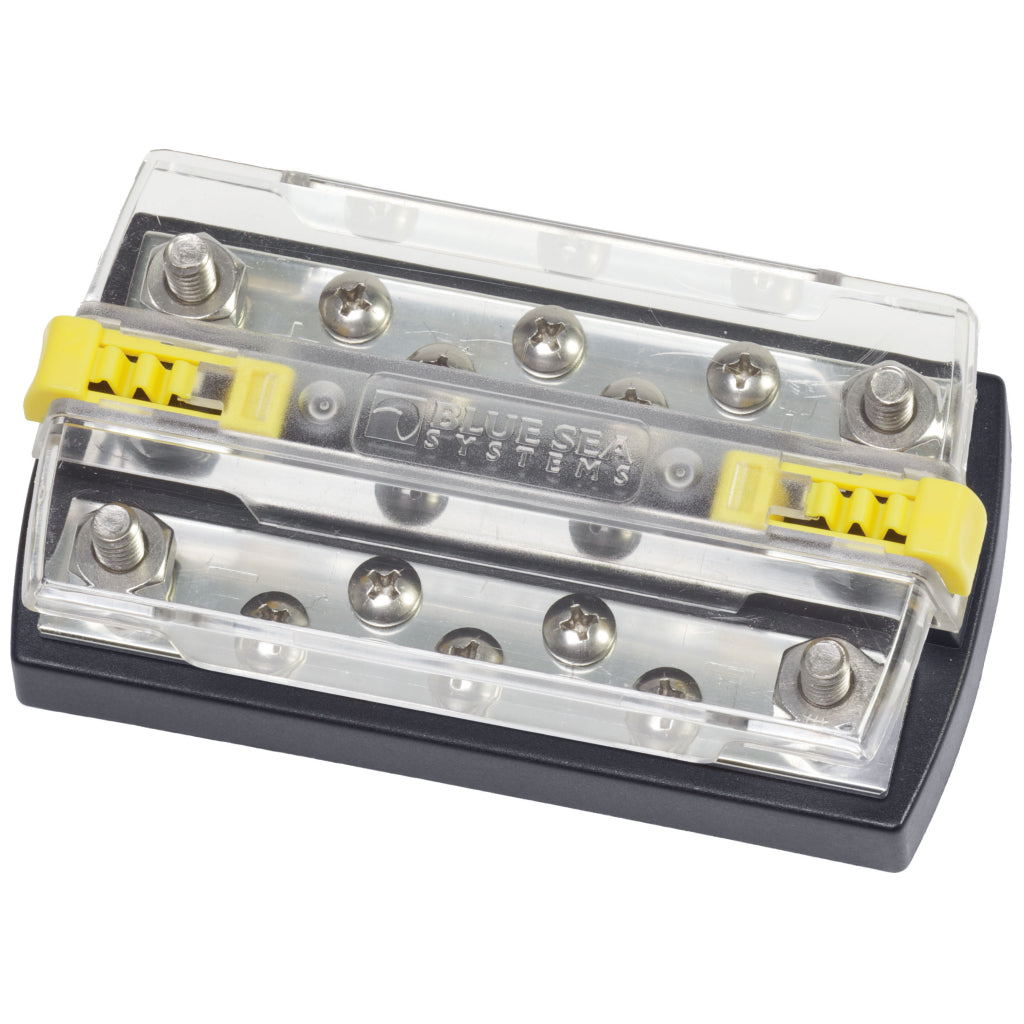

Item# 2723

Features:

• Combines negative and positive buses on one block
• Clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements

Specifications:

• Maximum Voltage:300V AC
• 48V DC
• Number of Screw Terminals:5 per bus
• Number of Terminal: Studs2 per bus
• Terminal Type:10-32 Screw
• 5/16" Stud
• Continuous Rating:130A AC
• 150A DC
• Base Material:UL 94-V0 Rated, Glass Reinforced Thermoplastics
• Bus Material:Tin-Plated Copper CDA 110 / UNS 11000
• Cover Material:Clear Polycarbonate
• Mounting Screw:10 (M5)
• Screw Terminal Torque:18 in-lb (2.03 Nm)
• Stud Torque:120 in-lb (13.56 Nm)
• Weight:0.61lb (0.28 kg)
