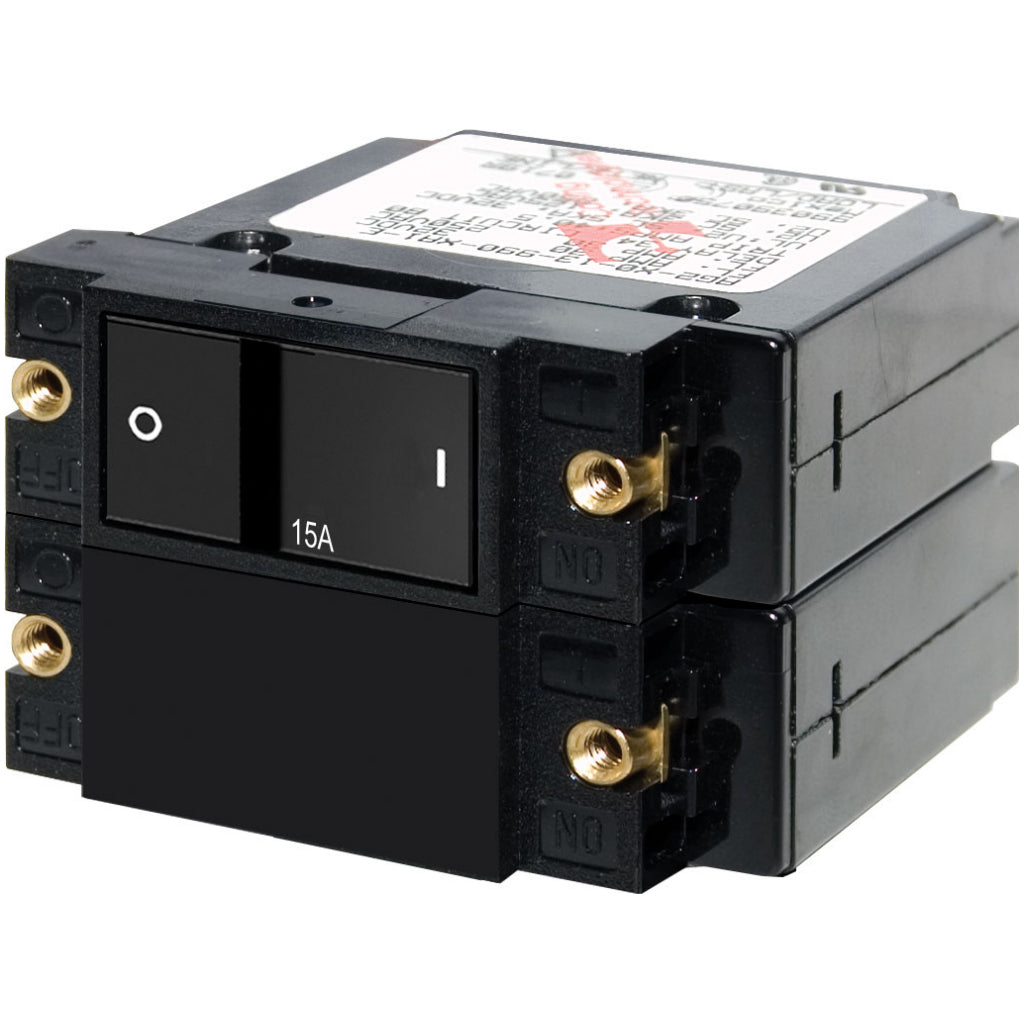

Blue Sea 15A A-Series Double Pole Circuit Breaker

SKU# BS7411
$5899
Check Delivery Time

Blue Sea 15A A-Series Double Pole Circuit Breaker may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

Item# 7411

Features:

  • Color actuator indicates “OFF” position
  • “Trip Free” design cannot be held “ON” during fault current condition
  • International ON/OFF symbols support vertical or horizontal mounting

Specifications:

  • Amperage:15A AC
  • 15A DC
  • Actuator Style: Raised Rocker
  • Poles:2
  • Maximum Voltage:120V AC
  • 240V AC
  • 32V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 3000A 240V AC
  • 1500A 240V ACTUV
  • 5000A 32V DC
  • Minimum Operating Temperature:-40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw:6-32 Stainless Steel
  • Mounting Screw Torque:6 in-lb (0.68 Nm)
  • Screw Terminal Torque:14 in-lb (1.58 Nm)
  • Switching Cycles:10000
  • Terminal Screws:10-32 Stainless Steel
  • Weight:0.38lb (0.17 kg)
