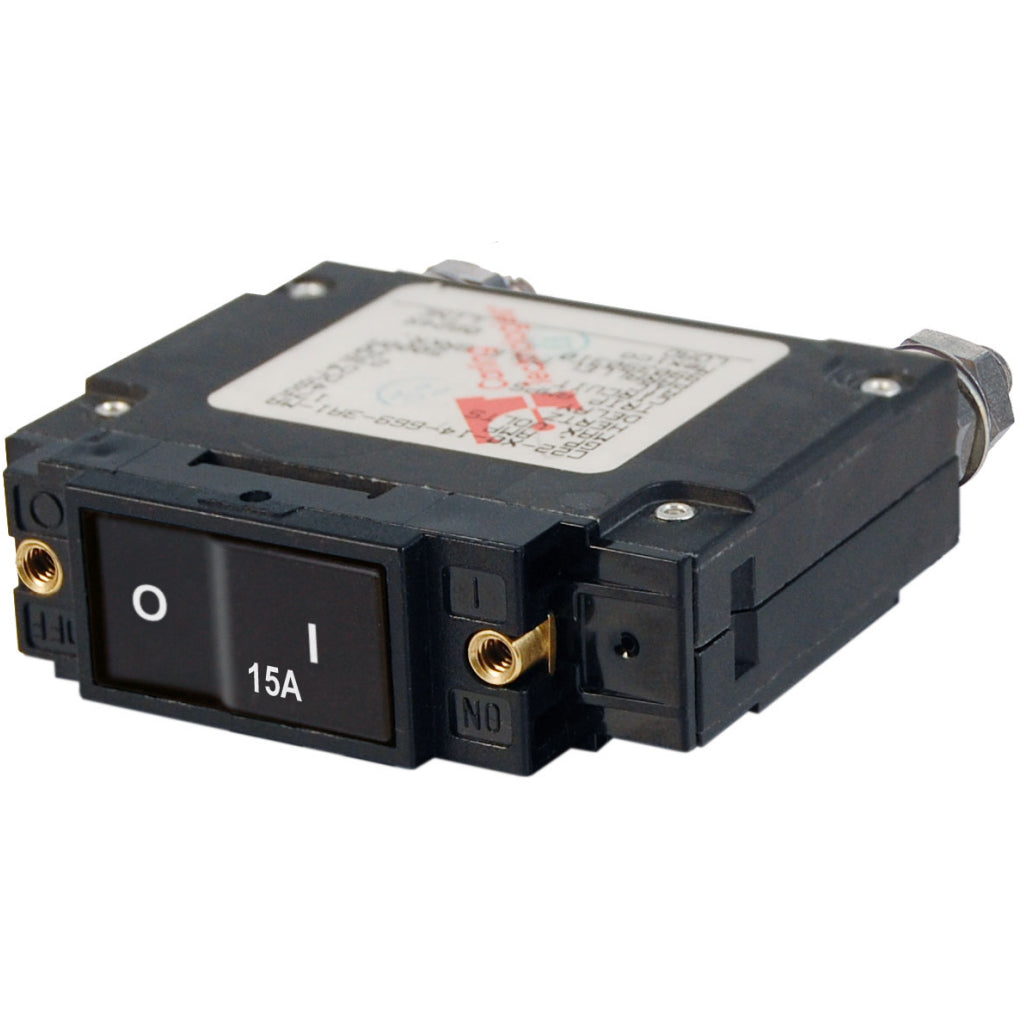

Blue Sea 15A C-Series Flat Rocker Circuit Breaker

$44.99
Item Number: BS7542

Features:

  • Rocker actuator is flush in the “ON” position, eliminating the risk of accidential switching
  • Color actuator indicates “OFF” position
  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Combines switching and circuit protection into a single device
  • “Trip Free”—cannot be held closed after trip
  • Ignition protected—safe for installation aboard gasoline powered boats

Specifications:

  • Amperage:15A AC
  • 15A DC
  • Actuator Style: Flat Rocker
  • Poles:1
  • Maximum Voltage:240V AC
  • 48V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Terminal Stud Torque:35 in-lb (3.95 Nm)
  • Interrupt Capacity:3000A 120V AC
  • 3500A 240V AC
  • 5000A 32V DC
  • Minimum Operating Temperature:-40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw:6-32 Stainless Steel
  • Mounting Screw Torque:6 in-lb (0.68 Nm)
  • Switching Cycles:10000
  • Terminal Stud:1/4-20 Tin-Plated Brass
  • Weight:0.28lb (0.13 kg)
