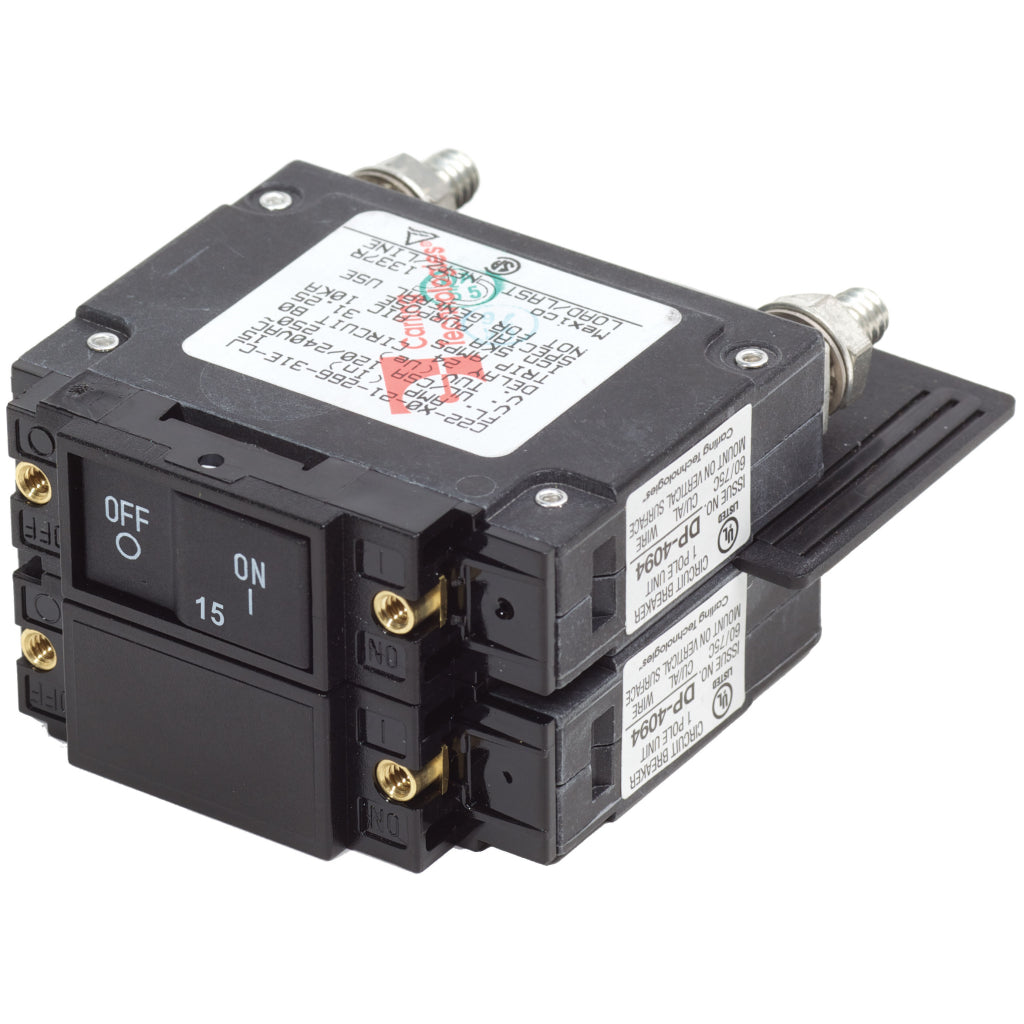

Item# 7462
Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
Specifications:
- Amperage:15A AC
- Actuator Style: Flat Rocker
- Poles: 2
- Maximum Voltage:240V AC
- Circuit Breaker Type: Magnetic Hydraulic—Trip free
- Terminal Type:1/4"-20 Stud Tin Plated Brass
- Terminal Stud Torque:35 in-lb (3.95 Nm)
- Interrupt Capacity:5000A
- Minimum Operating Temperature:-40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw:6-32 SS
- Mounting Screw Torque:8 in-lb (0.9 Nm)
- Switching Cycles:10000
- Weight:0.18lb (0.08 kg)
