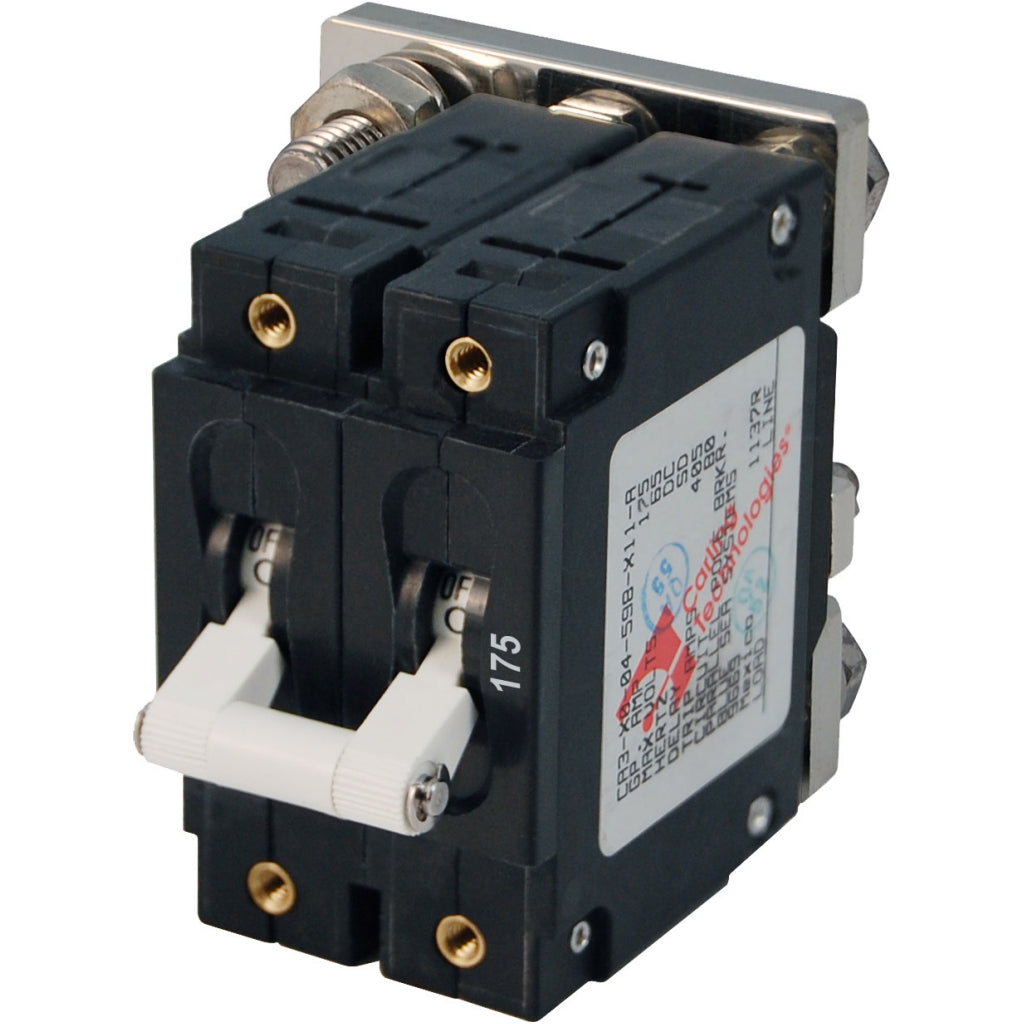

Item# 7268
Features:- Paralleled poles have 5/16" stud on bus
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- "Trip Free" - cannot be held closed after trip
Specifications:
- Amperage:175A DC
- Color:White
- Actuator Style:Toggle
- Poles:2
- Maximum Voltage:120V AC
- 240V AC
- 65V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Terminal Stud Torque:35 in-lb (3.95 Nm)
- Interrupt Capacity:5000A 65V DC
- Minimum Operating Temperature:-40° C
- Maximum Operating Temperature:85° C
- Mounting Screw:6-32 Stainless Steel
- Mounting Screw Torque:6 in-lb (0.68 Nm)
- Switching Cycles:10000
- Terminal Stud:1/4-20 Tin-Plated Brass
- Weight:0.64lb (0.29 kg)
