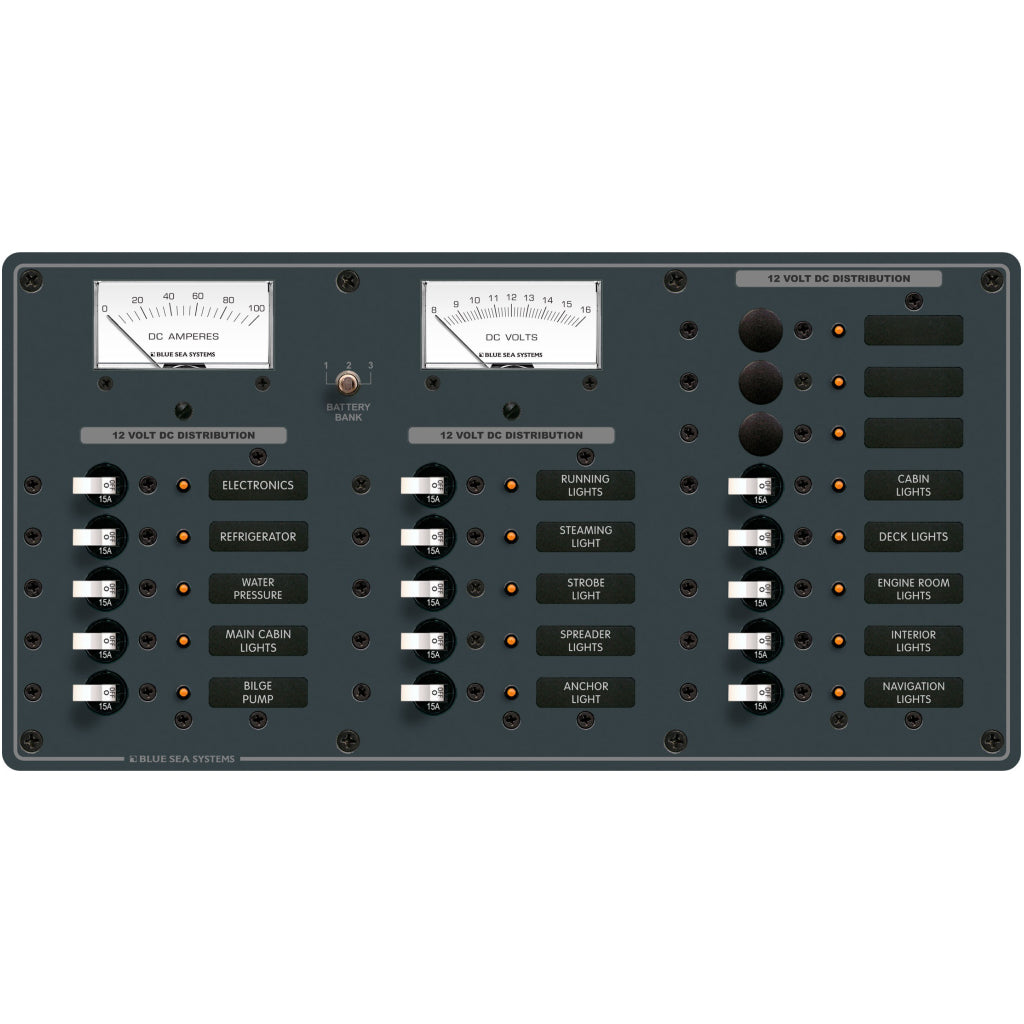

Item Number: BS8378

Features:

  • All positive, negative and grounding buses installed, fully pre-wired
  • Panels with meters include toggle switch for mounting up to 3 battery banks
  • All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
  • All circuit label positions are backlit on standard panels - No kit required
  • "ON" indicating LEDs installed in all circuit positions

Specifications:

  • Positions:18
  • Nominal Voltage:12V DC
  • Maximum Amperage: 100A
  • Height:7.50in (190.5 mm)
  • Width:14.75in (374.65 mm)
  • Depth:2.50in (63.5 mm)
  • Weight:7.80lb (3.54 kg)
