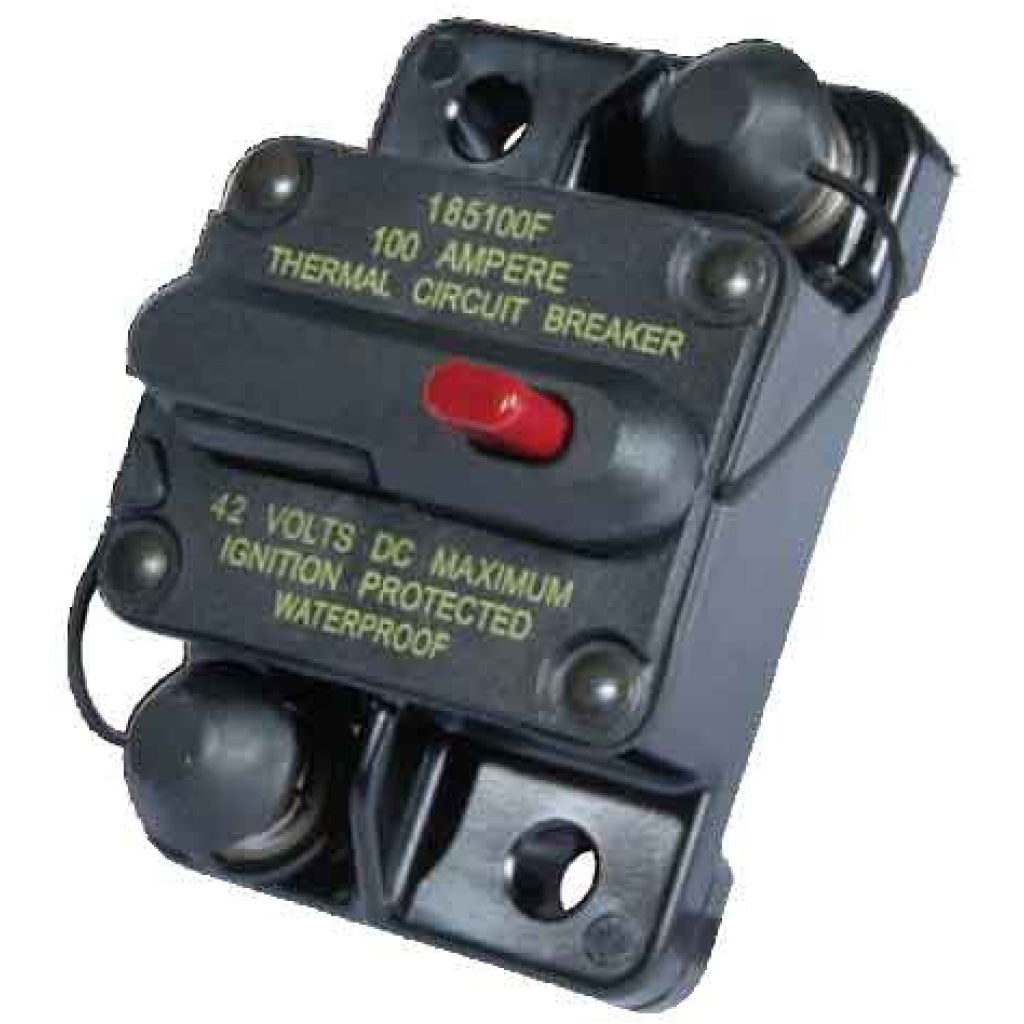

Blue Sea 185-Series Surface Mount Circuit Breaker

SKU# BS7113
$4299
Check Delivery Time

Blue Sea 185-Series Surface Mount Circuit Breaker may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

Item# 7113

High amperage thermal circuit breakers. Trip Free - designed to trip even if the reset lever is held in the on position.

Self trimming case with recessed holes for a simple and clean installation. Large clearance around the terminal studs for large gauge wire lugs.

Features:

  • Ignition protected -(meets SAE J1171 external ignition protection requirements) Safe for installation aboard gasoline powered boats
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit
  • "Trip Free" - cannot be held closed after trip

Specifications:

  • Interrupting Capacity Iic:3000 Amps 42 volts DC
  • Maximum Operating Voltage Vmxo:42 Volts DC
  • Minimum Operating Temperature Tmno:-25°C
  • Maximum Operating Temperature Tmxo:82°C
  • Type:Thermally Responsive Bi-metal
  • Class:Type III Switchable/Manual Reset - Trip Free
  • Terminal Stud:1/4" - 28
  • Terminal Stud Torque:50 in-lb
  • Mounting Hole:1/4" M6
  • Weight:0.30lb / 0.14kg
