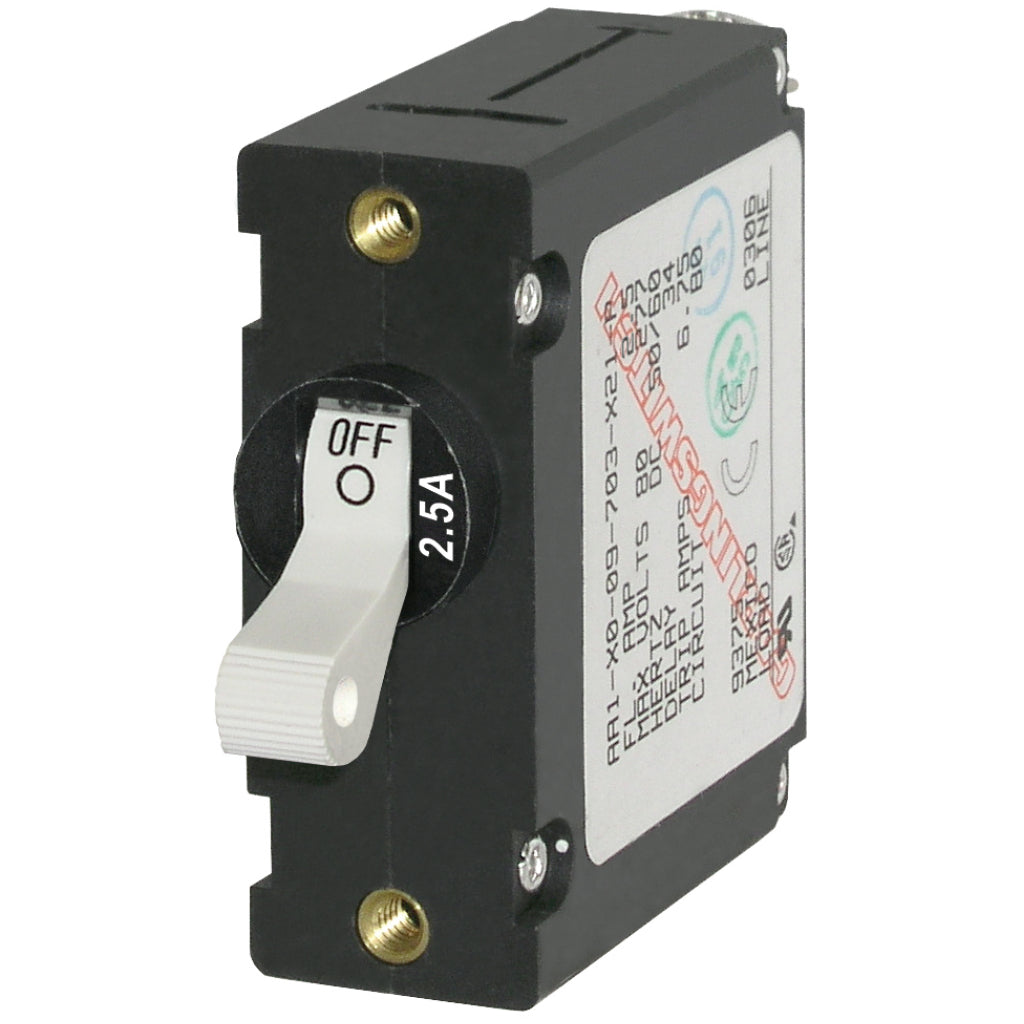

Blue Sea 2.5A Single Pole Circuit Breaker

Item Number: BS7197

Blue Sea 2.5A Single Pole Circuit Breaker usually available 2-5 business days upon ordering.


  • Meets American Boat and Yacht Council (ABYC) standards
  • The industry standard circuit breaker for Blue Sea Systems" electrical panels
  • Combines switching and circuit protection into a single device
  • "Trip Free" design cannot be held "ON" during fault current condition


  • Amperage:2.5A AC
  • 2.5A DC
  • Color:White
  • Actuator Style:Toggle
  • Poles:1
  • Maximum Voltage:240V AC
  • 32V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 3000A 120V AC
  • 1500A 240V AC TUV
  • 3000A 240V AC UL 1077
  • 7500A 65V DC
  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw:6-32 Stainless Steel
  • Mounting Screw Torque:6 in-lb (0.68 Nm)
  • Screw Terminal Torque:14 in-lb (1.58 Nm)
  • Switching Cycles:10000
  • Terminal Screws:10-32 Stainless Steel
  • Weight:0.17lb (0.08 kg)
