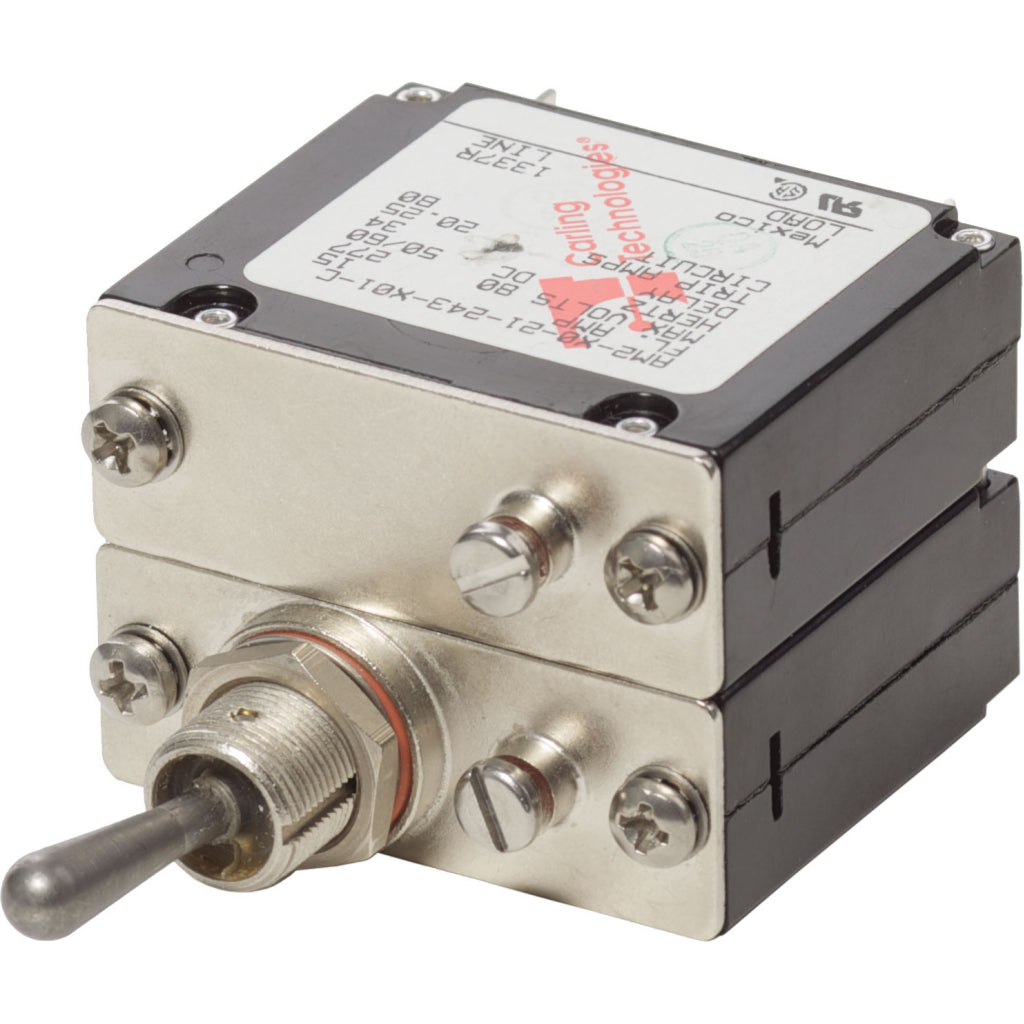

Blue Sea 20A A-Series COTS Circuit Breaker

Item# 7313

May be suitable for use when military specifications are required under CFR 46.

• Amperage:20A
• Actuator Style: Metal Toggle
• Poles:2
• Maximum Voltage:277V AC
• 65V DC
• Circuit Breaker Type: Magnetic Hydraulic—Trip free
• Interrupt Capacity: 1500A AC
• 7500A DC
• Minimum Operating Temperature:-40° C
• Maximum Operating Temperature:85° C
• Mounting Boss:1/2-32 Hex Nut SS
• Mounting Nut Torque:30in-lb (3.39 Nm)

• Mounting Screw:

  6-32 SS
• Mounting Screw Torque:7 in-lb (0.79 Nm)
• Screw Terminal Torque:14 in-lb (1.58 Nm)
• Switching Cycles:6000 Electrical
• 4000 Mechanical
• Terminal Screws:10-32 SS
• Weight:0.13lb (0.06 kg)
