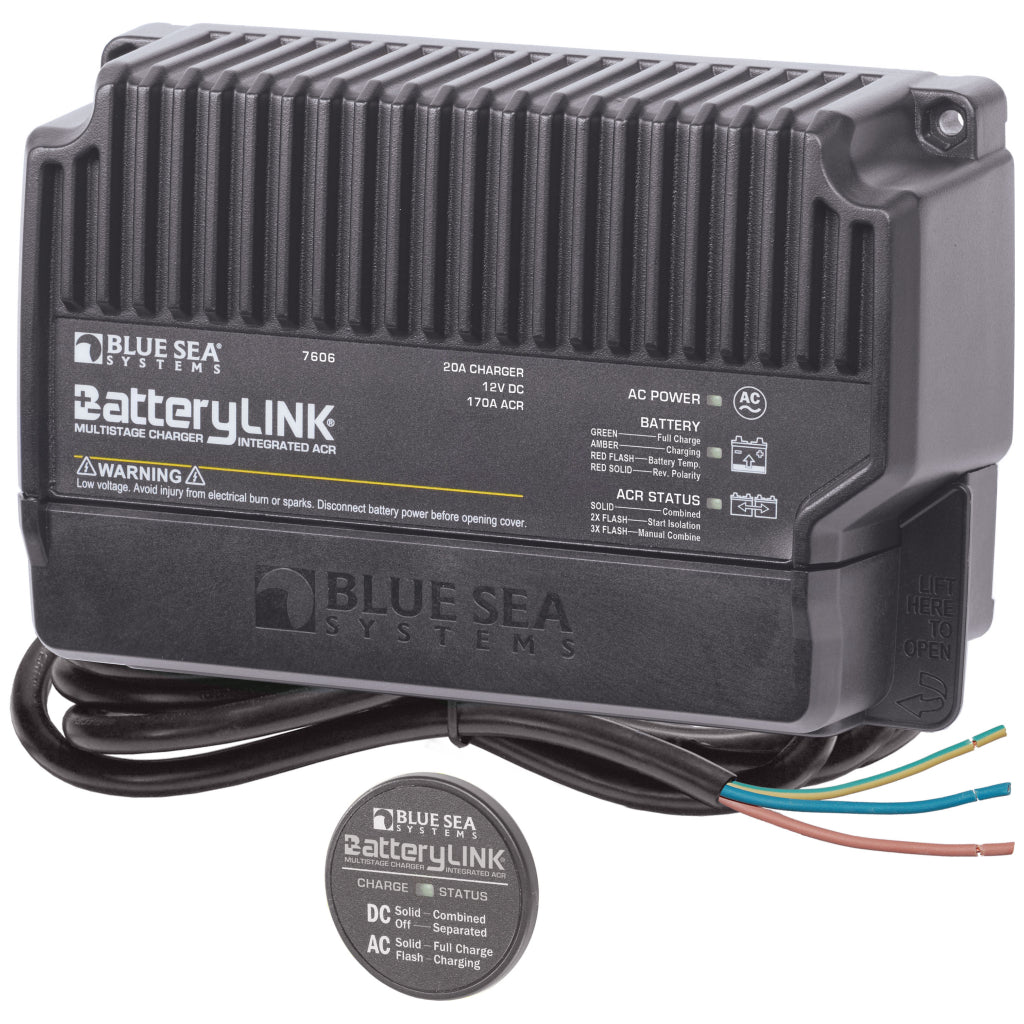

Item# 7606
Charge two batteries at or away from the dock with a 20A multistage battery charger and integrated 170A Automatic Charging Relay (ACR)
Features:
- AC charging at the dock: Use AC shore power to charge two isolated battery banks with the 3 Stage 20 Amp battery charger
- DC charging away from the dock: Share the DC power from the alternator with both the Start and the Auxiliary battery through the integrated 170A ACR
- Battery Temperature Compensation prolongs battery life
- Start isolation protects sensitive electronics from voltage sags and spikes
- Emergency parallel allows remote ability to jump start by combining both batteries if start battery is low
- Includes LED remote indicator for charge status at the helm
- Snap-on insulating cover
- One-piece stainless flange nuts ensure safe and secure connections
Specifications:
- Total Output Current:20A
- Nominal Voltage:12V DC
- Number of Outputs:1 Negative
- 2 Positive
- Terminal Stud Torque:60 in-lb (6.78 Nm)
- Continuous Rating: 170A
- Universal AC Input Voltage:90-265V AC
- AC Input Frequency:50/60Hz
- Typical Float Voltage:13.5V DC
- Battery Types:AGM
- Flooded
- TPPL
- Cable Size to Meet Ratings:10 AWG Negatve Cable
- 6 AWG Positive cable
- Maximum Batter:y CCA850CCA
- Maximum Cable Size:1/0 AWG (50mm)
- Operating Current:10mA
- 60mA
- Plug Style:Bare Wire
- Recommended Battery Bank Sizes:60Ah Minumum
- Terminal Stud Size:1/4"-20
- Warranty:5 Year
- Combine 30 sec:13.5V
- Combine 2 Min:13.0V
- Open 10 sec:12.35V
- Open 30 sec:12.75V
- Weight:6.75lb (3.06 kg)
