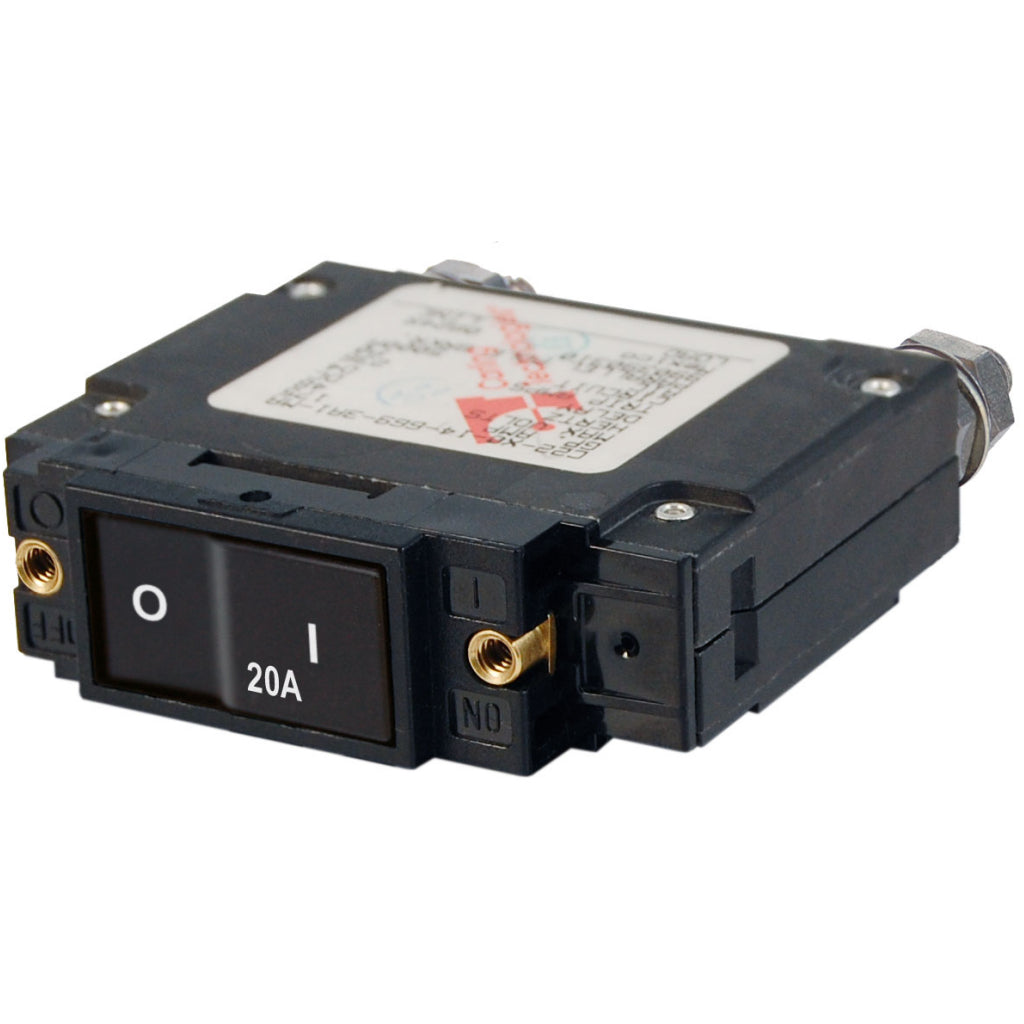

Blue Sea 20A C-Series Flat Rocker Circuit Breaker

Item# 7543

Features:

• Rocker actuator is flush in the “ON” position, eliminating the risk of accidential switching
• Color actuator indicates “OFF” position
• Provides overcurrent protection for inverters, bow thrusters, and windlasses
• Combines switching and circuit protection into a single device
• “Trip Free”—cannot be held closed after trip
• Ignition protected—safe for installation aboard gasoline powered boats

Specifications:

• Amperage:20A AC
• 20A DC
• Actuator Style: Flat Rocker
• Poles:1
• Maximum Voltage:240V AC
• 48V DC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Terminal Stud Torque:35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A 120V AC
• 3500A 240V AC
• 5000A 32V DC
• Minimum Operating Temperature:-40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw:6-32 Stainless Steel
• Mounting Screw Torque:6 in-lb (0.68 Nm)
• Switching Cycles:10000
• Terminal Stud:1/4-20 Tin-Plated Brass
• Weight:0.28lb (0.13 kg)
