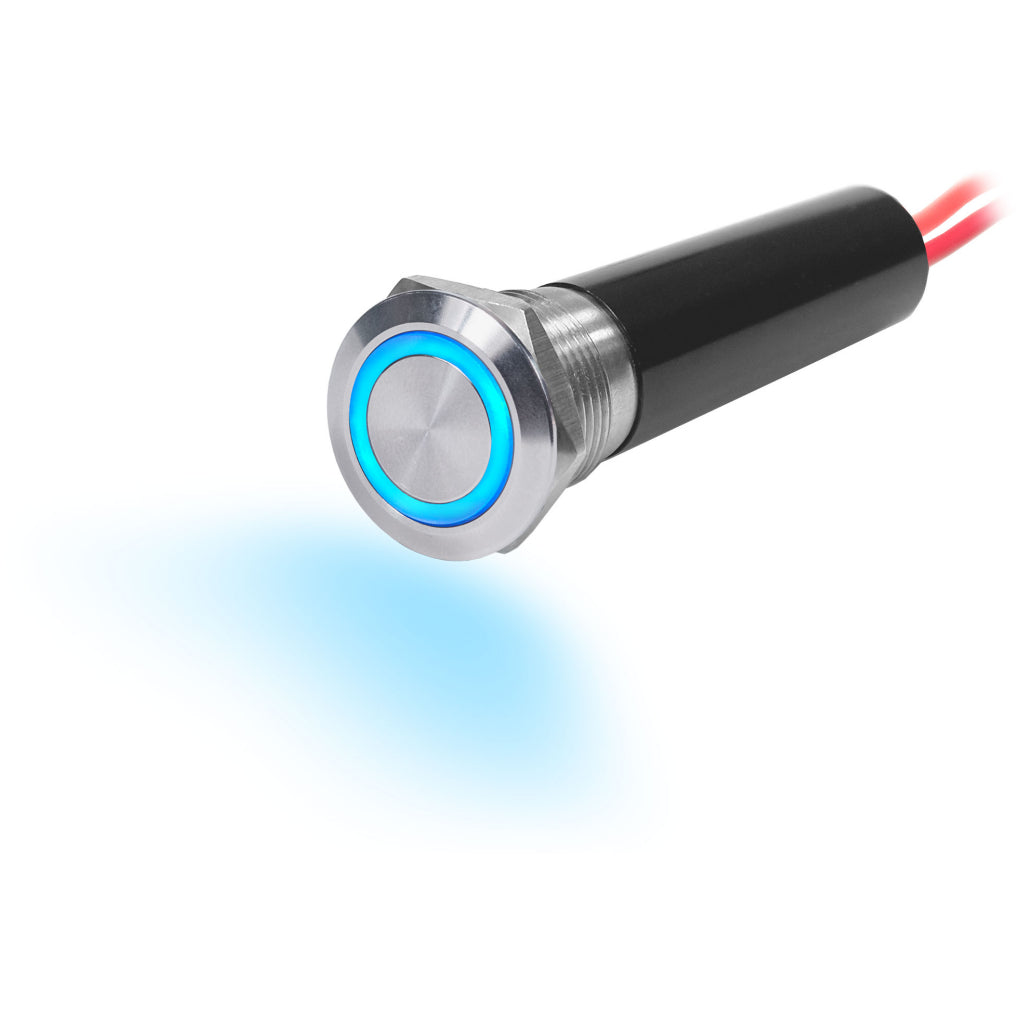

Blue Sea 20A LED Push Button Ring Switch
ELECTRICAL

Blue Sea 20A LED Push Button Ring Switch

SKU# BS4190
$9499
Check Delivery Time

Blue Sea 20A LED Push Button Ring Switch may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

✕
//riggingshoppe.com/cdn/shop/files/happy-child-on-sailboat_e18ec5af-8b2e-4722-ae68-af51a4129615_500x500.jpg?v=1667832716

Check Delivery Time


Item# 4190

Features:

  • 20A Continuous
  • Single Pole Single Throw
  • Available in Blue & Red
  • 14 AWG pigtail – positive & load connections
  • .187inch quick connect – LED ground (included in retail package)

Specifications:

  • Action: OFF-ON
  • Amperage:20A 12V DC
  • Nominal Voltage:12V DC
  • Maximum LED Operating Current:20mA
  • Minimum Operating Temperature:-30° C
  • Maximum Operating Temperature: 80° C
  • Illumination:Dependent – Illuminates when output is on
  • Max Panel Thickness:0.24in (6.1 mm)
  • Mounting Hole:¾” (19mm)
  • Switching Cycles:60,000
  • Termination:2 – 6 inch flying leads 14 AWG, 1 – 0.187 inch Quick Connect terminal
  • Weight:0.40lb (0.18 kg)
