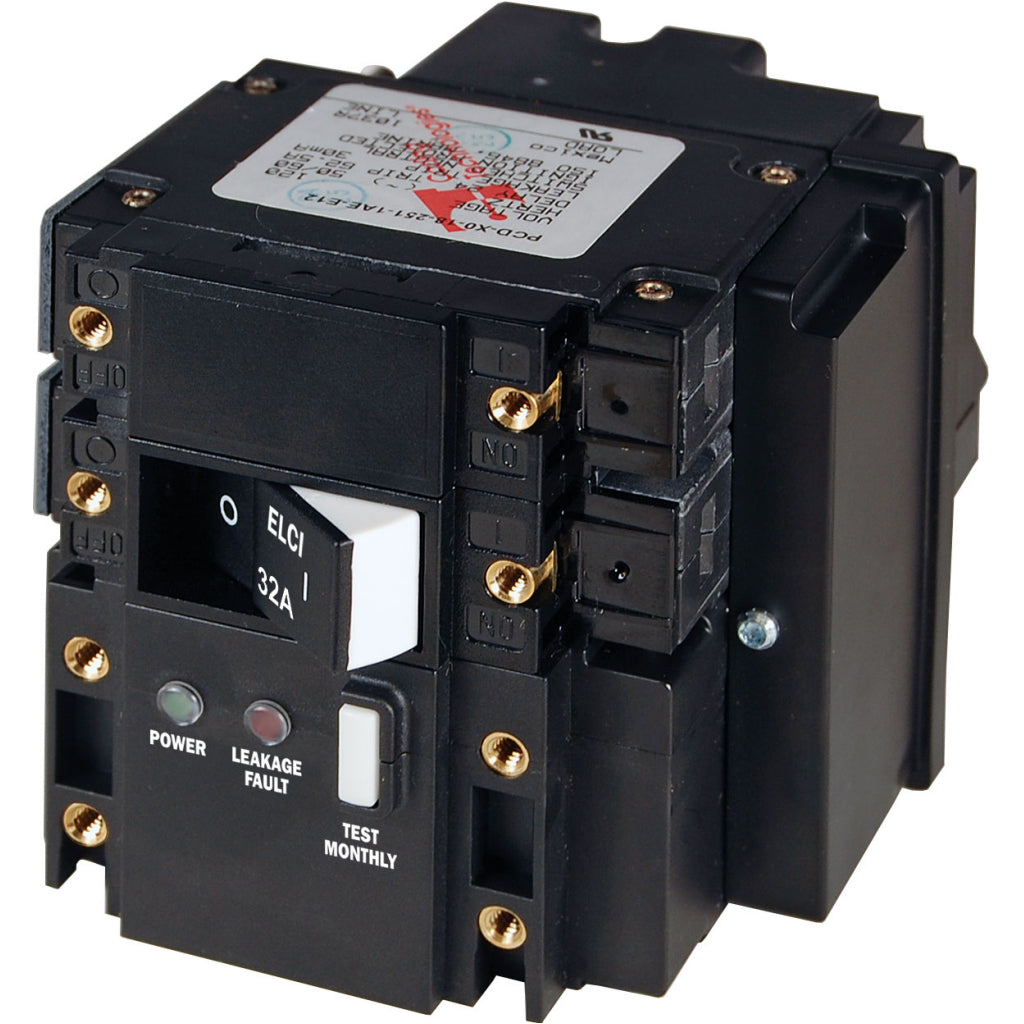

Blue Sea 230V AC 32A ELCI Circuit Breaker
ELECTRICAL

Blue Sea 230V AC 32A ELCI Circuit Breaker

SKU# BS3092
$76699
Check Delivery Time

Blue Sea 230V AC 32A ELCI Circuit Breaker may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

✕
//riggingshoppe.com/cdn/shop/files/happy-child-on-sailboat_e18ec5af-8b2e-4722-ae68-af51a4129615_500x500.jpg?v=1667832716

Check Delivery Time


Item# 3092

Features:

  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel

Specifications:

  • Amperage:32A
  • Actuator Style:Flat Rocker
  • Poles:2
  • Ignition Protected: Yes
  • Maximum Voltage:120V AC per pole
  • 240V AC per pole
  • Circuit Breaker Type:Magnetic Hydraulic - trip free
  • Interrupt Capacity: 5000A
  • Minimum Operating Temperature:-35° C
  • Maximum Operating Temperature:66° C
  • Leakage Trip Amps:30mA
  • Mounting Screw:6-32 Stainless Steel
  • Mounting Screw Torque:6 in-lb (0.68 Nm)
  • Switching Cycles:10000
  • Weight:1.05lb (0.48 kg)
