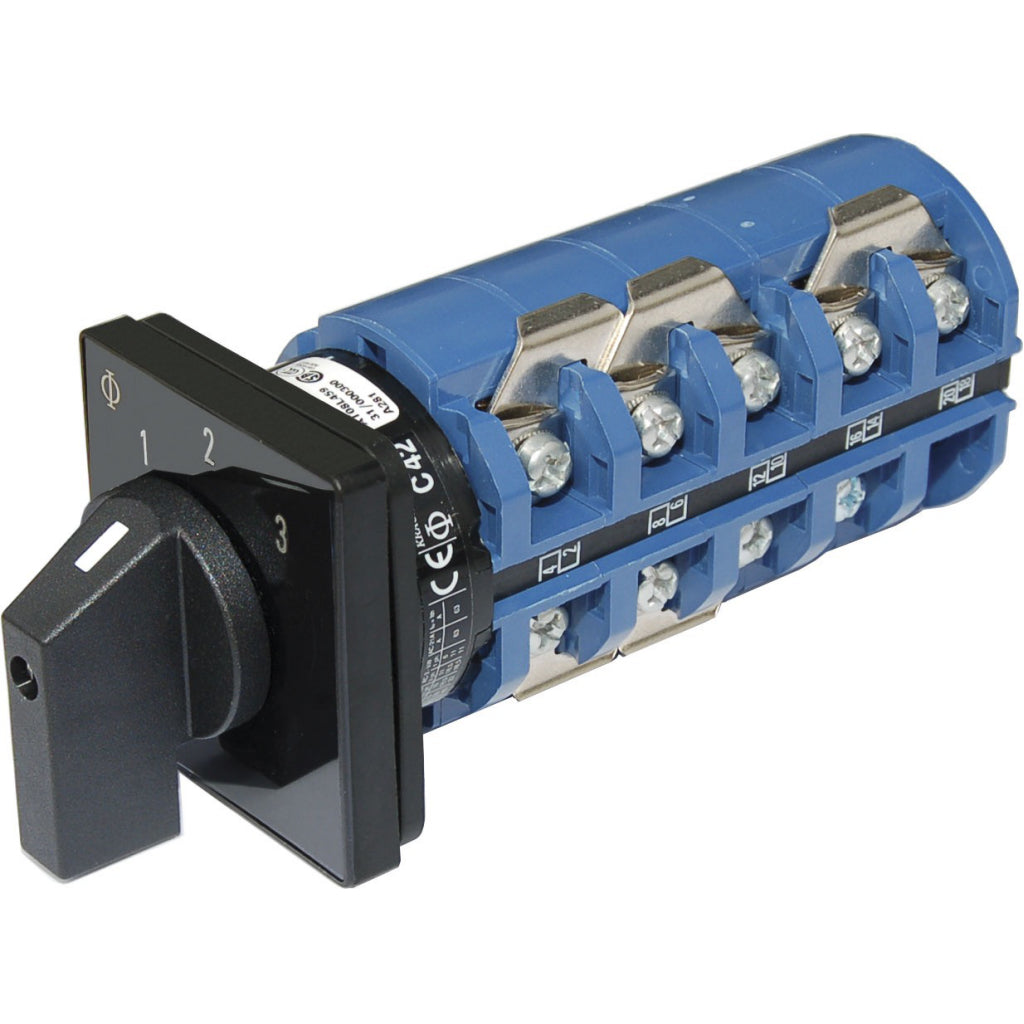

Item# 9077
Features:
- Switches 2 - 120/240 Volt AC sources
- Compact solution when circuit protection is provided elsewhere
- Allows connecting one of two different AC sources to one circuit
- Mounts in panels up to 0.16" (4.00mm) thick
- Heavy duty industrial rated switch
- Intuitive function - One hand operation
- UL listed
Specifications:
- Positions:3 OFF
- Source Selection:3
- Nominal Voltage:240V
- Poles:3
- Load Circuits Out:1
- Maximum Amperage: 65A
- Maximum Voltage:600V AC
- Source In:3
- Height:2.52in (64.01 mm)
- Width:2.52in (64.01 mm)
- Depth:5.50in (139.7 mm)
- Weight: 2.00lb (0.91 kg)
