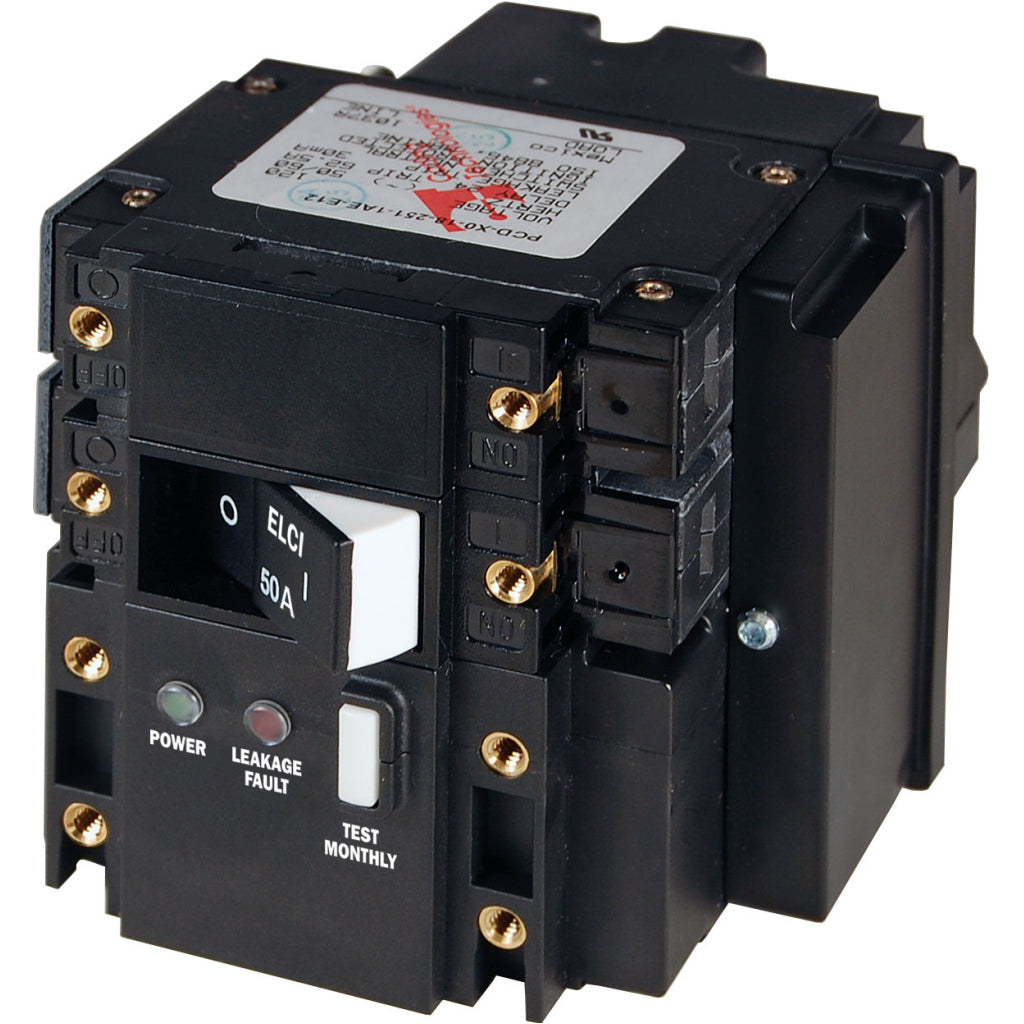

Blue Sea 240V AC C-Series ELCI Circuit Breaker

$482.99 $458.85
Item Number: BS3093

Blue Sea 240V AC C-Series ELCI Circuit Breaker usually available 2-5 business days upon ordering.

Features:

  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel

Specifications:

  • Amperage:50A
  • Actuator Style:Flat Rocker
  • Poles:2
  • Ignition Protected: Yes
  • Maximum Voltage:120V AC per pole
  • 240V AC per pole
  • Circuit Breaker Type:Magnetic Hydraulic - trip free
  • Interrupt Capacity: 5000A
  • Minimum Operating Temperature:-35° C
  • Maximum Operating Temperature:66° C
  • Leakage Trip Amps:30mA
  • Mounting Screw:6-32 Stainless Steel
  • Mounting Screw Torque:6 in-lb (0.68 Nm)
  • Switching Cycles:10000
  • Weight:1.20lb (0.54 kg)
