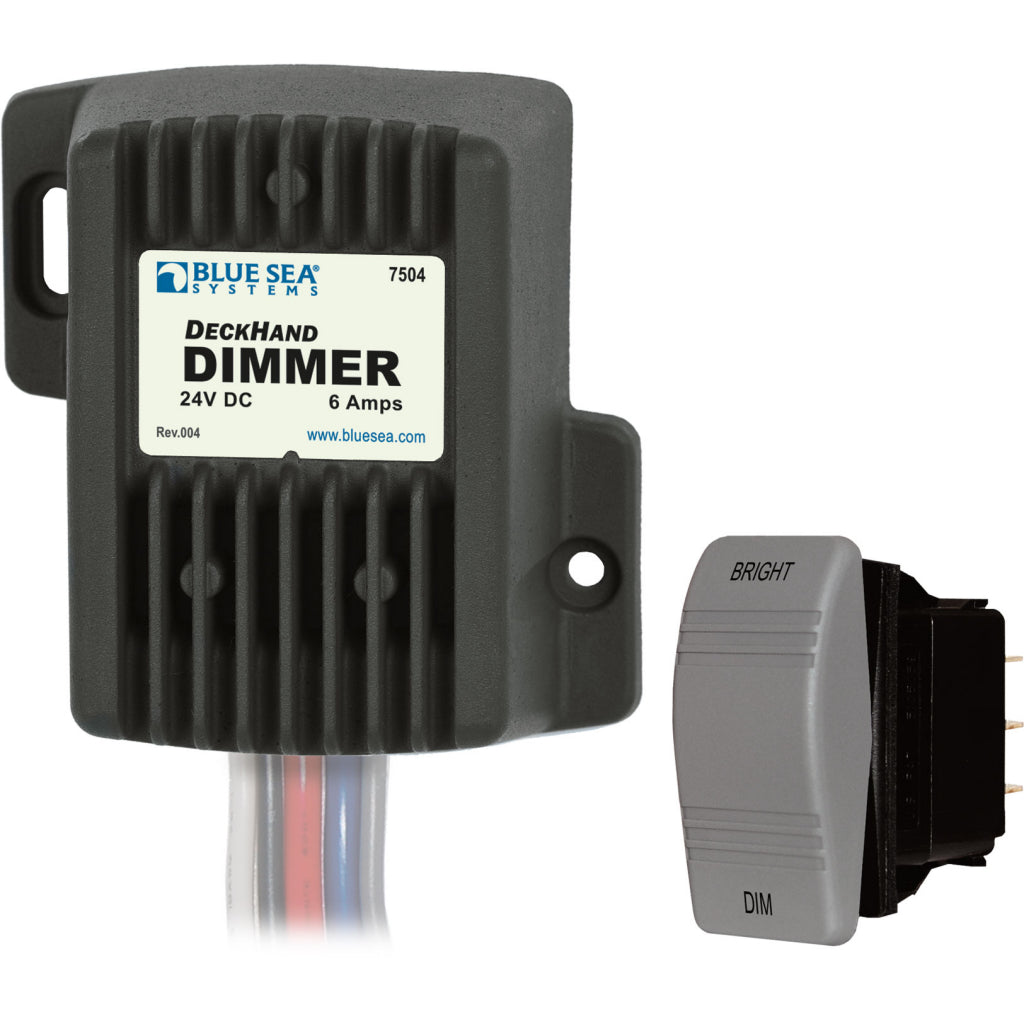

Item# 7504

Digitally controls dimming of non-regulated LED, incandescent, and halogen lights.

Features:

• Illuminated exit with adjustable time delay
• Digitally controls dimming of non-regulated LEDs, incandescent, and halogen lights
• Memory for last setting
• Provides continuous voltage control from 0 to 100% of input voltage

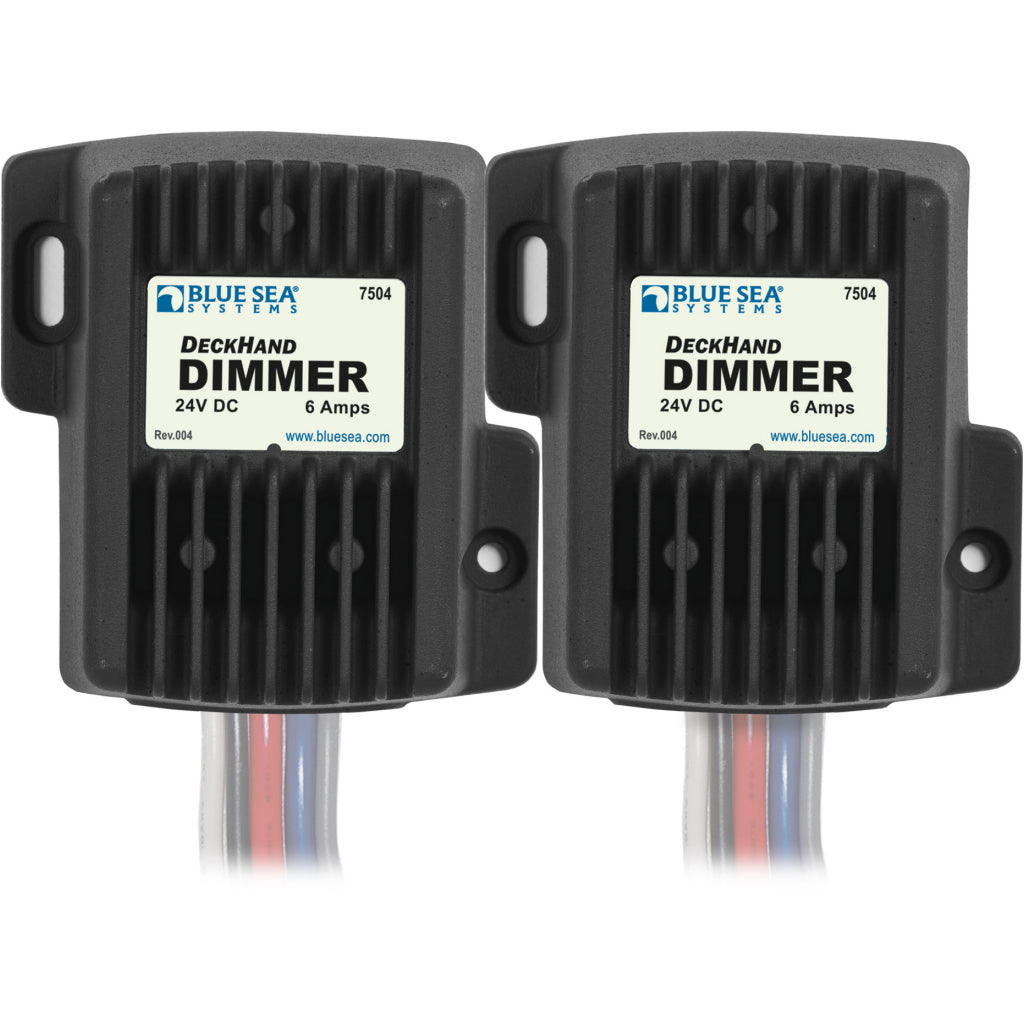

• Offset mounting tabs allow dimmers to be mounted close together
• Retail package includes momentary (ON)-OFF-(ON) switch

Specifications:

• Nominal Voltage:24V DC
• Maximum Amperage: 6A
• Minimum Operating Temperature:-40° C
• Maximum Operating Temperature:85° C
• Maximum Parasitic Current:2mA
• Weight:0.70lb (0.32 kg)
