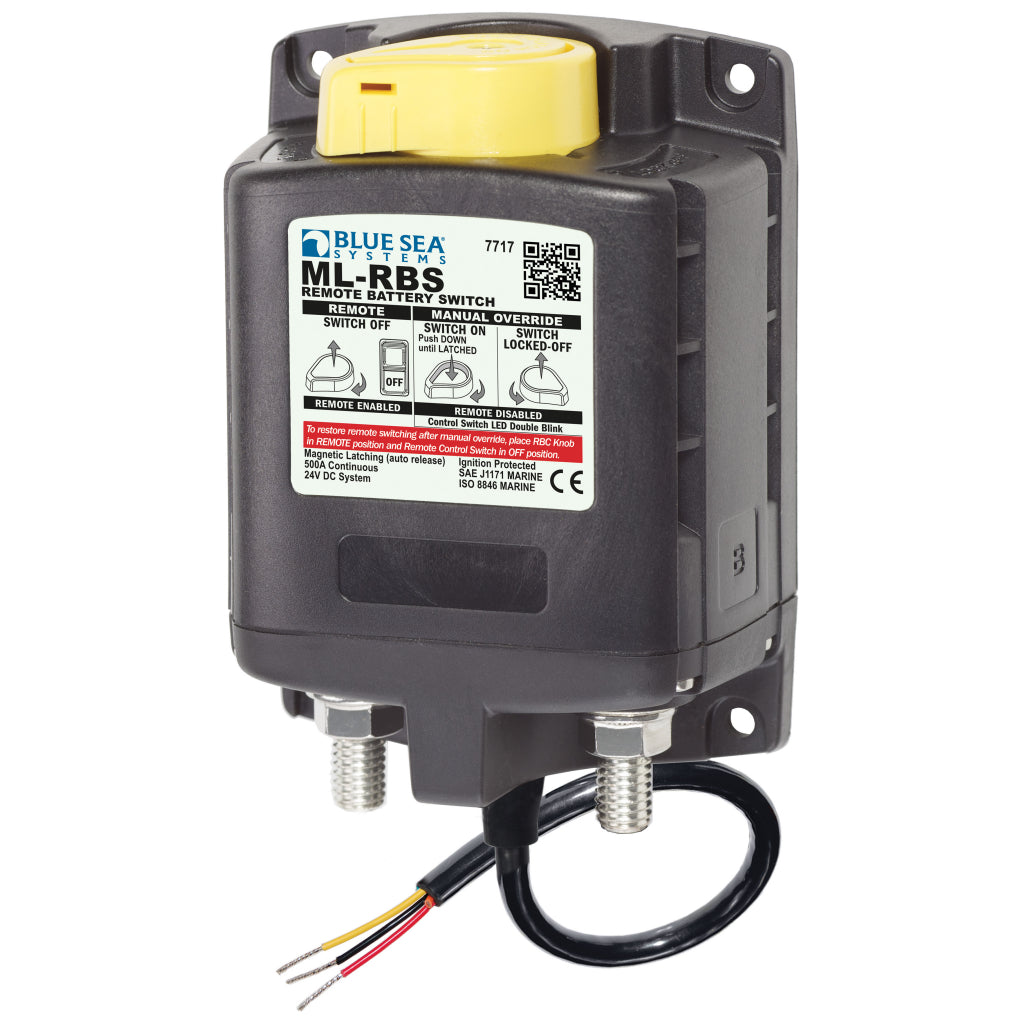

Item# 7717

Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired.

Features:

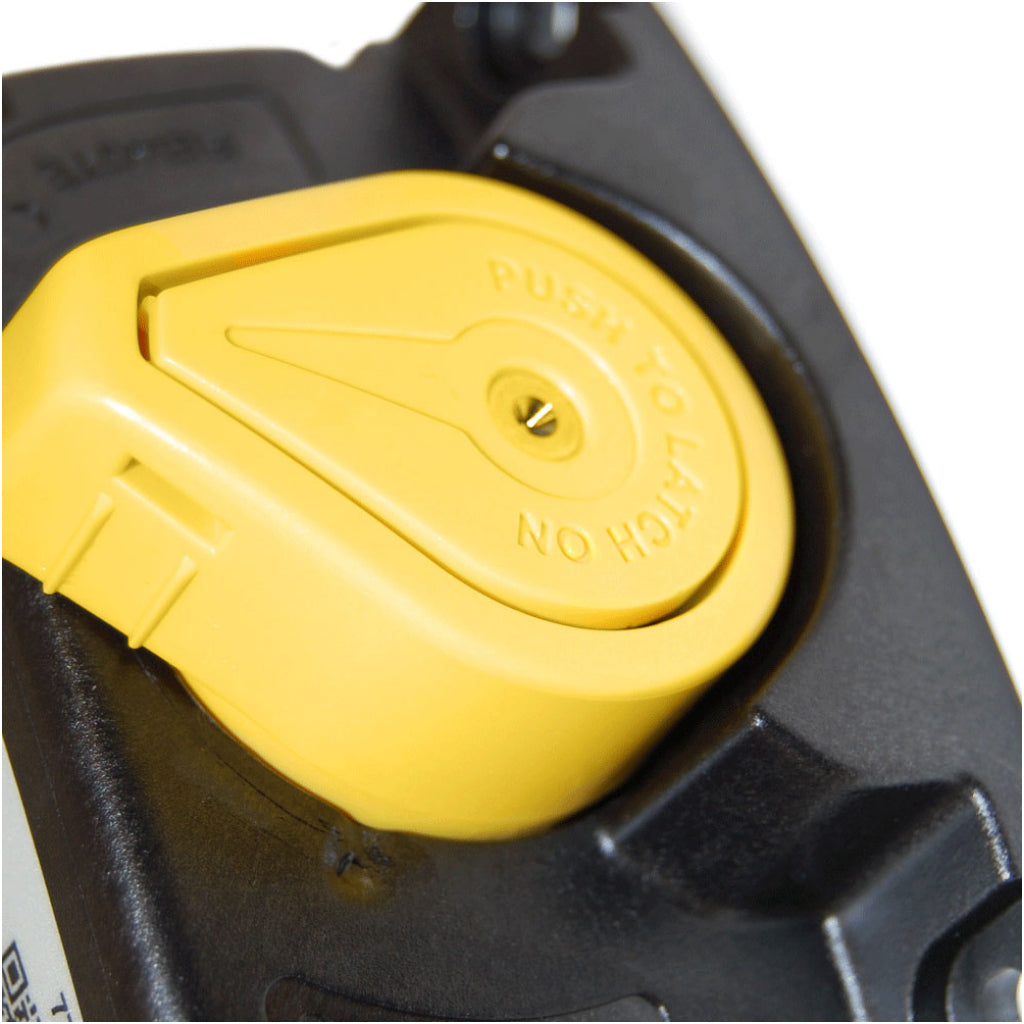

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
• LED output to remotely indicate switch state - requires optional LED
• 3 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7 8" (22 mm) stud length accepts multiple cable terminals
• Label recesses for circuit identification
• Silver alloy contacts provide high reliability for switching live loads

Specifications:

• Control Circuit Connection: Tinned Wire
• Nominal Voltage:24V DC
• Coil Function: Auto-Releasing
• Mounting:10
• Amperage Operating Current:8mA when OFF
• 13mA when ON
• Amperage Operating Current when changing state:<7A (40 ms)
• Terminal Stud Torque:140 in-lb (15.82 Nm)
• Control Circuit Voltage:10.1 to 16.5V DC
• Continuous Rating: 500A
• Intermittent Rating: 700A (5 min)
• Cranking Rating 30 sec: 1450A DC
• Minimum Operating Temperature:-10° C
• Maximum Operating Temperature:60° C
• Cable Size to Meet Ratings:2x (4/0)
• Live Current Switching:300A 12V DC
• Master Control Switch Capability:yYes
• Mechanical Endurance:100,000 Cycles
• Terminal Ring Diameter Clearance1.18in (29.97 mm)
• Terminal Stud Length0.875in (22.23 mm)
• Terminal Stud Size3/8" - 16 (M10)
• Weight2.07lb (0.94 kg)
