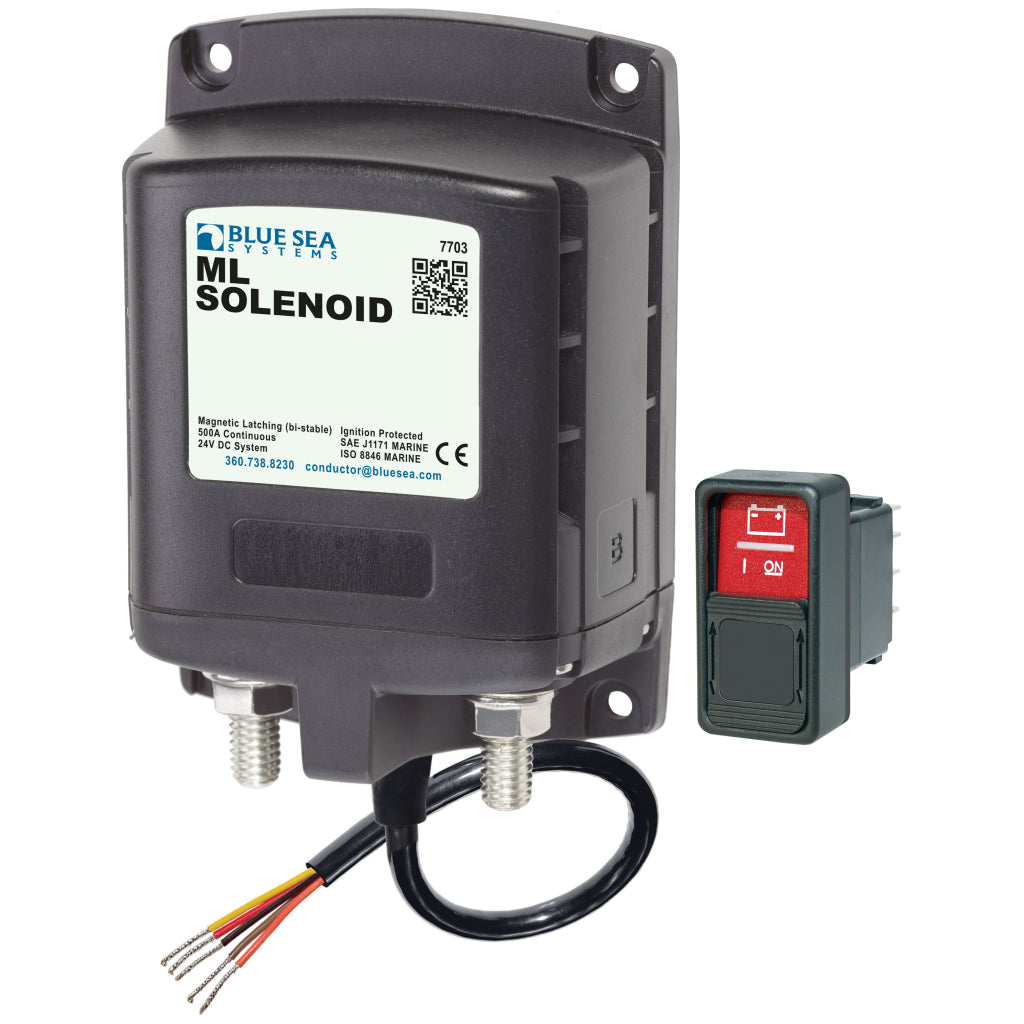

Item Number: BS7703

500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required.

Features:

  • Includes ML-Series Remote Control Contura Switch 2145
  • 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
  • Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
  • Silver alloy contacts provides high reliability for switching live loads
  • 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification

Specifications:

  • Control Circuit Connection: Tinned Wire
  • Nominal Voltage:24V DC
  • Manual Control: No
  • Coil Function: Bi-Stable
  • Mounting:10
  • Amperage Operating Current continuous:0A
  • Terminal Stud Torque:140 in-lb (15.82 Nm)
  • Continuous Rating:500A
  • Intermittent Rating:700A (5 min)
  • Cranking Rating:30 sec 1450A DC
  • Cable Size to Meet Ratings:2x (4/0)
  • Stud MaterialTinned Copper:
  • Terminal Ring Diameter Clearance:1.18in (29.97 mm)
  • Terminal Stud Length:0.875in (22.23 mm)
  • Terminal Stud Size:3/8" - 16 (M10)
  • Weight:2.07lb (0.94 kg)
