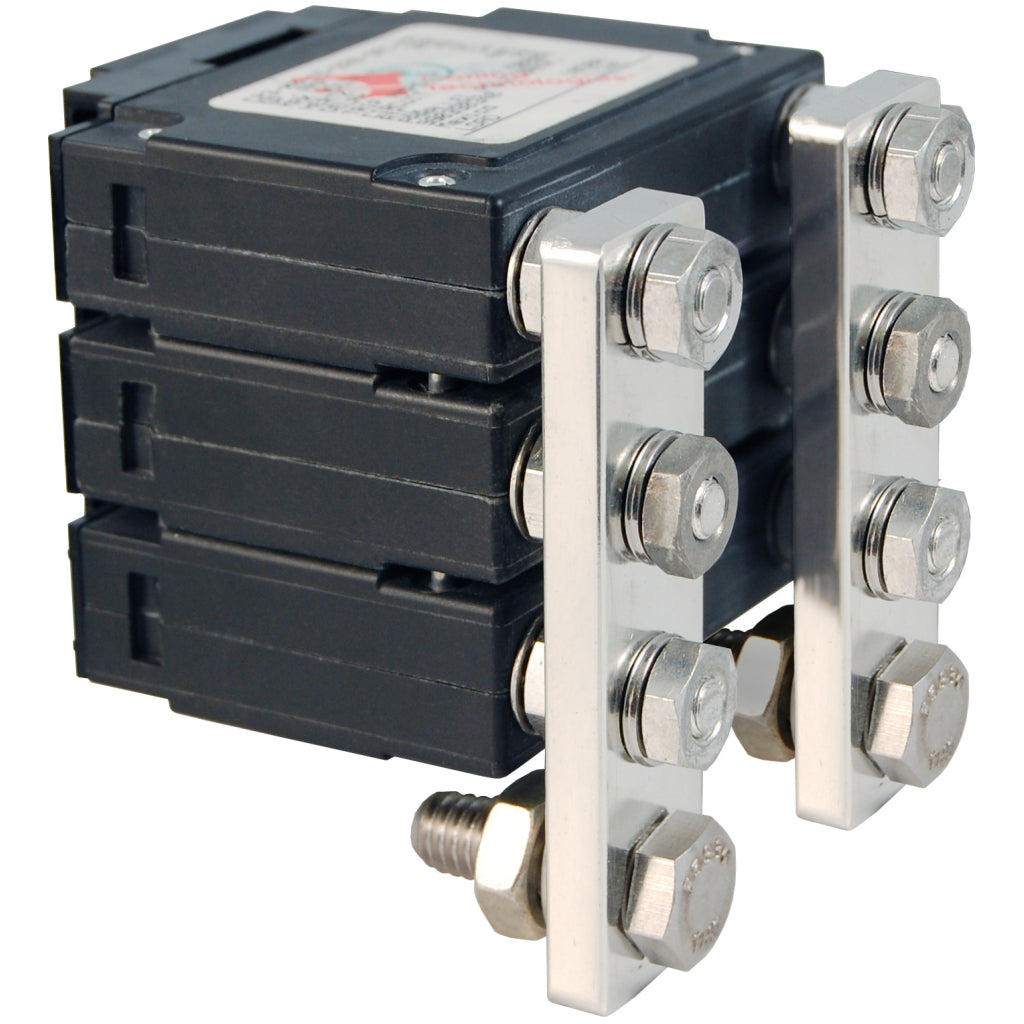

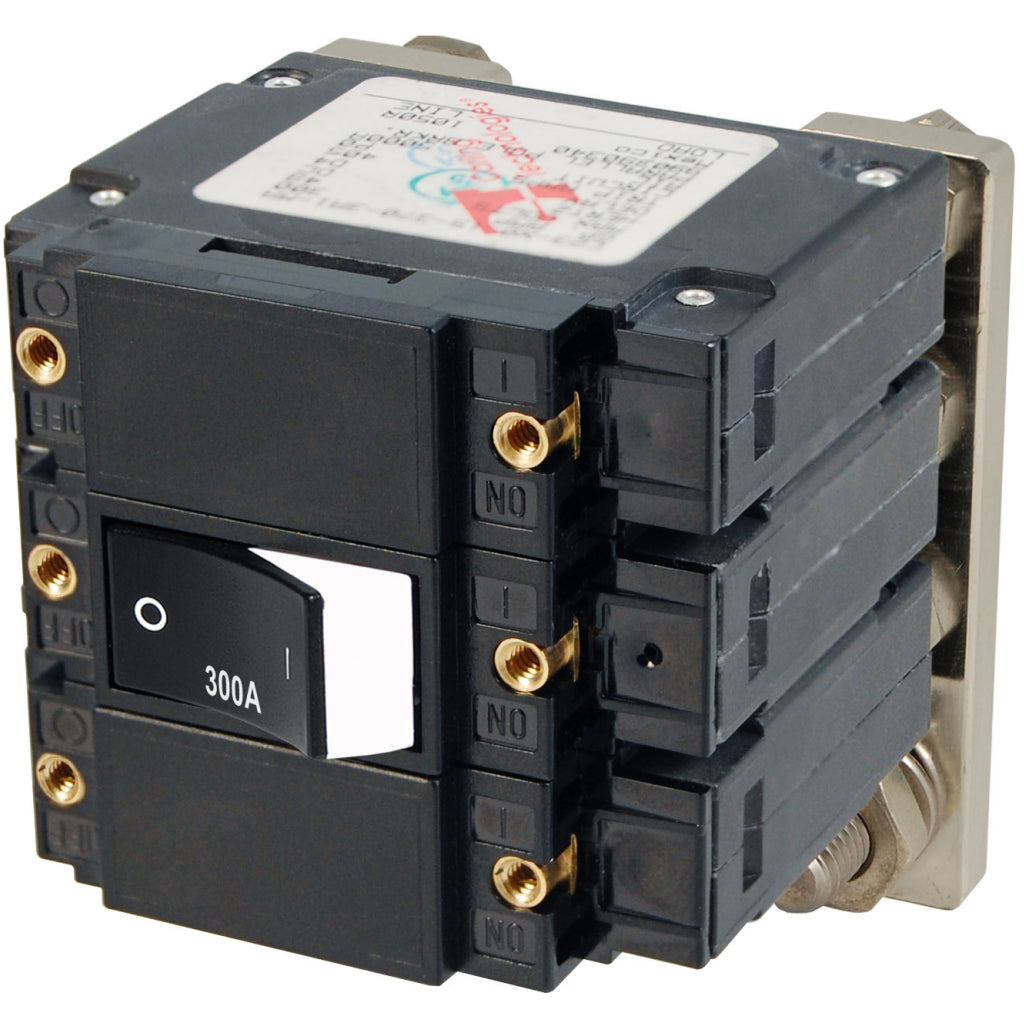

Blue Sea 300A C-Series Flat Rocker Circuit Breaker

$185.99 $167.40
Item Number: BS7554

Blue Sea 300A C-Series Flat Rocker Circuit Breaker usually available 2-5 business days upon ordering.

Features:

  • Paralleled poles have 5/16" stud on bus
  • Rocker actuator is flush in the “ON” position, eliminating the risk of accidental switching
  • Color actuator indicates “OFF” position
  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Combines switching and circuit protection into a single device
  • “Trip Free”—cannot be held closed after trip

Specifications:

  • Amperage:300A DC
  • Actuator Style: Flat Rocker
  • Poles:3
  • Maximum Voltage:120V AC
  • 240V AC
  • 48V DC
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Terminal Stud Torque:35 in-lb (3.95 Nm)
  • Interrupt Capacity: 5000A 48V DC
  • Minimum Operating Temperature:-40° C
  • Maximum Operating Temperature: 85° C
  • Mounting Screw:6-32 Stainless Steel
  • Mounting Screw Torque:6 in-lb (0.68 Nm)
  • Switching Cycles:10000
  • Terminal Stud:1/4-20 Tin-Plated Brass
  • Weight:0.93lb (0.42 kg)
